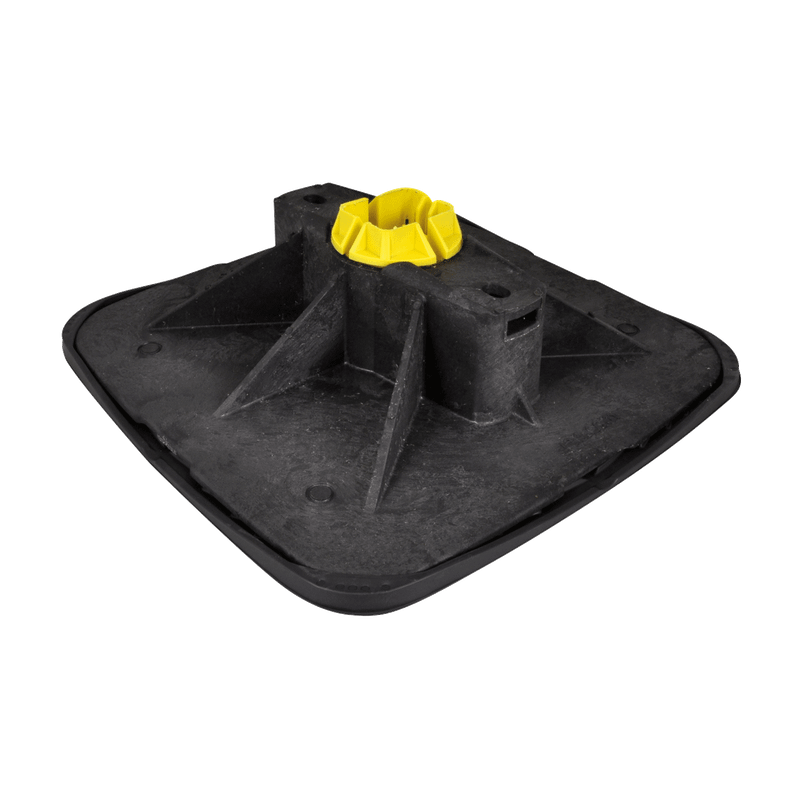

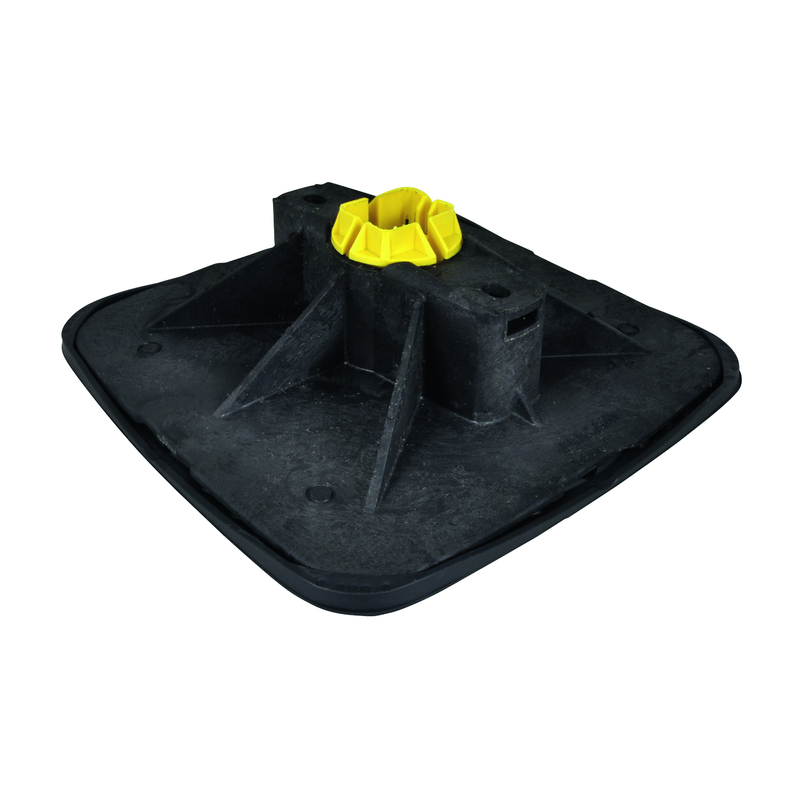

The Yeti®335 Roof Support System is a modular system designed for supporting HVAC equipment, solar panels, walkways, pipe work, and cable runs on flat roofs. It features a 360° rotatable insert and a unique click-mechanism for quick and safe installation.
| Part No. | Model | L (mm) | B (mm) | H (mm) | h (mm) | Fa,z (N) | Fa,z 2 (N) | Ma,y (Nm) | Pack 1 | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 67685201 | Vertical | 335 | 335 | 100 | 20 | 20,000 | 30,000 | 200.0 | 90 | 90 |
| 67685302 | H-set (without Strut Rail) | 335 | 335 | - | 20 | 20,000 | 30,000 | 200.0 | 32 | 32 |
The Yeti®335 is a heavy-duty modular supporting system designed to provide a stable, non-penetrative base for HVAC equipment, solar panels, walkways, and heavy pipe work on flat roofs.
The H-set is a complete installation kit consisting of 2 x BIS Yeti® 335 bases with anti-vibration mats, 4 x 90° Strut Connectors, and 8 x hexagon head bolts and slide nuts for a rigid frame assembly.
The 360° rotatable insert allows for total flexibility in aligning BIS RapidStrut® 41x41 or DS 5 (41x52mm) rails, enabling perfect positioning of equipment regardless of the roof's orientation.
Each unit includes a non-slip anti-vibration mat made of rubber, which prevents the support from shifting and distributes weight evenly to avoid piercing or damaging the membrane.
The system supports green building goals by using mouldings made of WPC (Wood Plastic Composite), a high-performance material crafted from recycled plastic and wood fiber.
Yes, the system provides documented noise reduction according to DIN EN ISO 10140-1 and 10140-3, effectively isolating equipment vibrations from the building structure.
Absolutely. It is UV-resistant according to EN ISO 16474-3:2014-02 (certified by ITB), making it ideal for rooftop installations in regions with intense solar exposure.
The unique click-mechanism ensures a quick and safe installation of the strut rails into the base, significantly reducing labor time compared to traditional heavy ballast or concrete supports.
It is widely used for HVAC equipment support, solar panel installations, and industrial walkways, as well as heavy-duty cable runs and pipe work.
Yes, Hira Walraven provides BIM objects for the Yeti®335, allowing engineers to accurately model support grids and calculate load distributions for various rooftop services.
