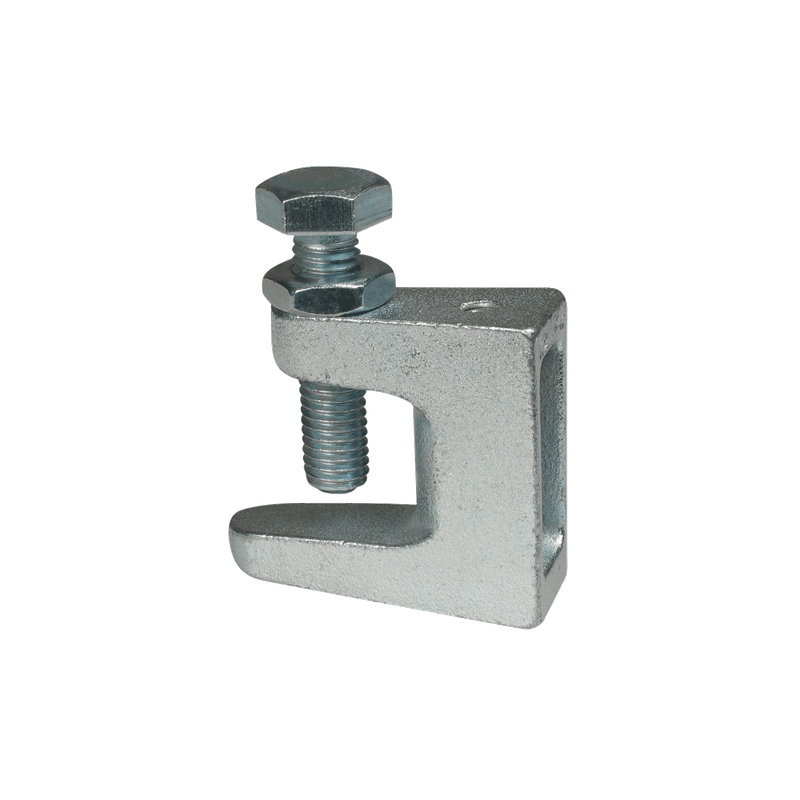

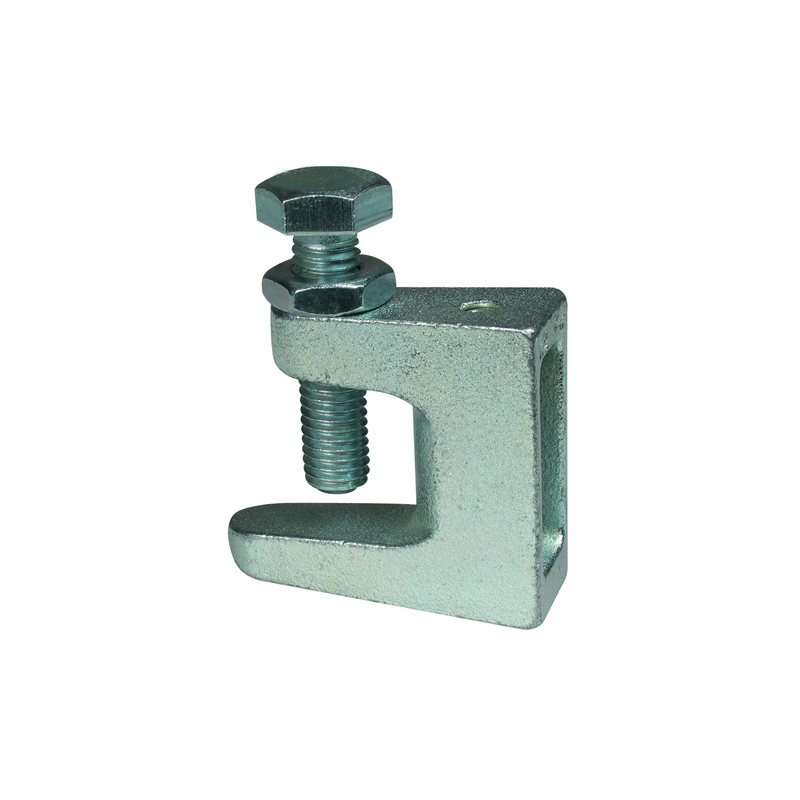

The Beam Clamp Model C provides a solid fixing to steel structures without the need for welding or drilling. It is suitable for supporting pipes and other applications.
Beam clamp made of cast iron; bolt of hardened steel, nut of steel, zinc plated
BIS Safety Strap
| Part No. | A (mm) | R | G | H (mm) | SW1 (mm) | Fa,z (N) | FM/UL | Pack 1 |
|---|---|---|---|---|---|---|---|---|
| 6003206 | 23 | M6 | M10 | 45 | 17 | 2,500 | - | 50 |
| 6003208 | 23 | M8 | M8 | 35 | 13 | 2,500 | VdS | 50 |
| 6003010 | 20 | M10 | M10 | 42 | 17 | 2,500 | FM, UL, VdS | 50 |
| 6003012 | 26 | M12 | M10 | 54 | 17 | 3,500 | FM, UL, VdS | 50 |
| 6003016 | 28 | M16 | M12 | 58 | 19 | 5,500 | FM, UL, VdS | 50 |
