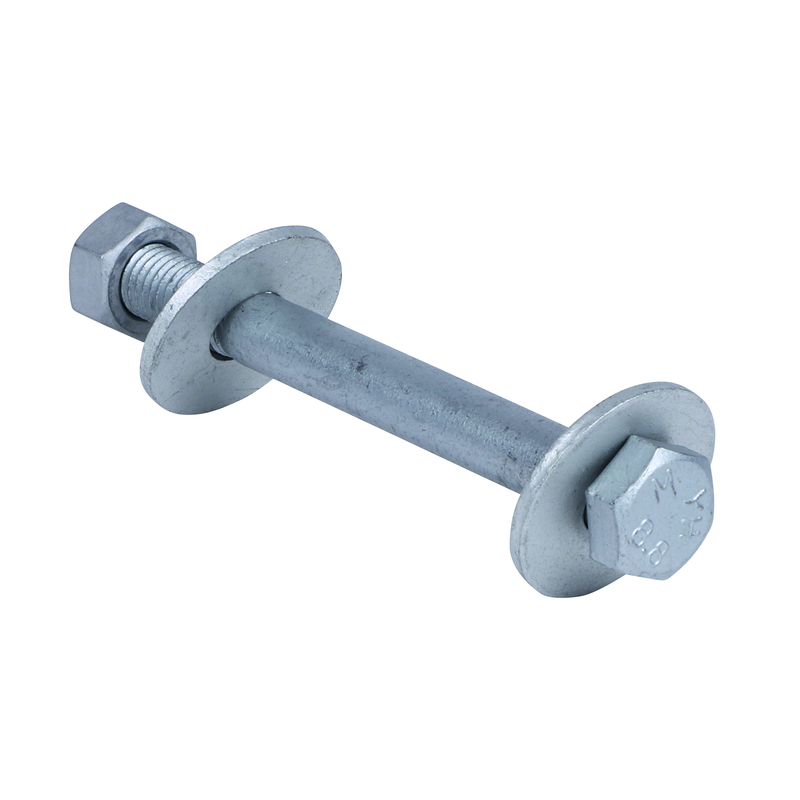

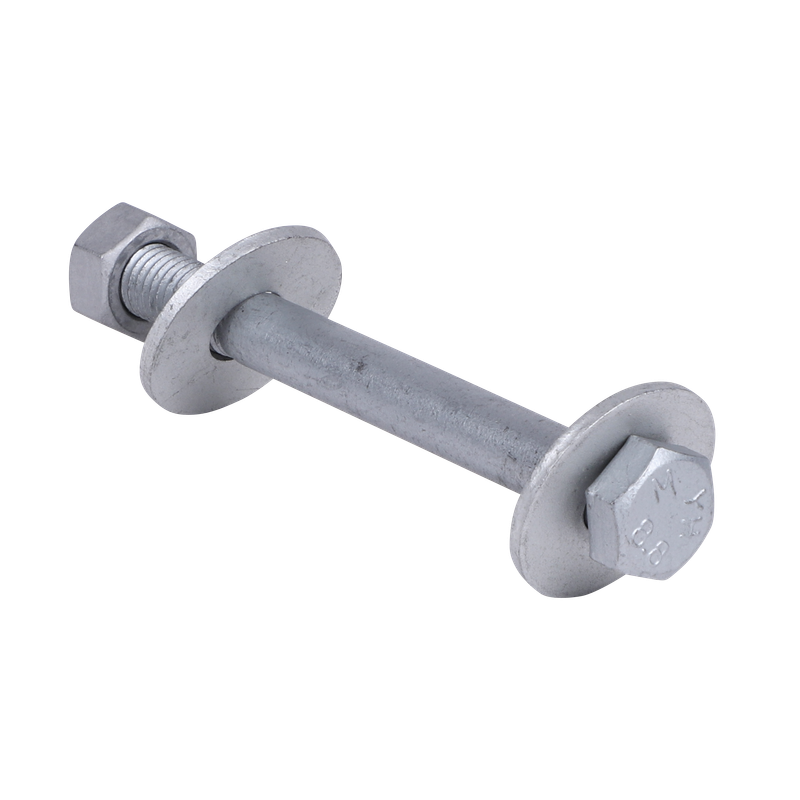

The Maxx Bolt Set (ZFC) is designed for fixing in profile perforation, specifically for Maxx profiles, and includes a hexagon head bolt set with washer and serrated flange nut for Maxx profile connections.
Steel, strength class 8.8
Zinc flake coated
1 bolt, 1 nut, 1 washer
| Part No. | For Rail | G | L (mm) | Pack 1 |
|---|---|---|---|---|
| DMC614581212 | Maxx 80 Bolt Set | M12 | 120 | 25 |
| DMC614581214 | Maxx 100 Bolt Set | M12 | 140 | 25 |
| DMC614581216 | Maxx 120 Bolt Set | M12 | 160 | 25 |
| DMC614581614 | Maxx 100 Bolt Set | M16 | 140 | 25 |
| DMC614581616 | Maxx 120 Bolt Set | M16 | 160 | 25 |
This specialized fastening set is designed for fixing in profile perforation, specifically for creating high-strength connections within the Maxx Heavy Rail Profile system.
Each set is a complete fixing solution consisting of 1 hexagon head bolt (Strength Class 8.8), 1 serrated flange nut, and 1 flat washer.
Zinc Flake Coating offers superior corrosion protection compared to standard zinc plating, making it ideal for industrial environments while maintaining tight thread tolerances.
To ensure a secure and stable connection without over-stressing the material, the maximum recommended torque is 80Nm.
When tightening directly onto the Maxx profile, it is strongly advised to use Maxx U-shape brackets to distribute the clamping force evenly and prevent deformation of the profile walls.
The hexagon nut features a collar and serrations that increase friction against the metal surface, providing a vibration-resistant locking effect and preventing the bolt from loosening over time.
The bolts are manufactured from high-tensile Steel Strength Class 8.8, providing the mechanical integrity required for heavy-duty industrial rail systems.
Yes, the bolt size is ideally suited to fit the perforation of the Maxx profile, ensuring a precise fit that facilitates fast and accurate assembly.
It is the standard fastener for profile fixing and assembling multi-tiered rail systems in large-scale mechanical and structural projects.
Yes, Hira Walraven provides BIM objects for the Maxx range. We can share material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
