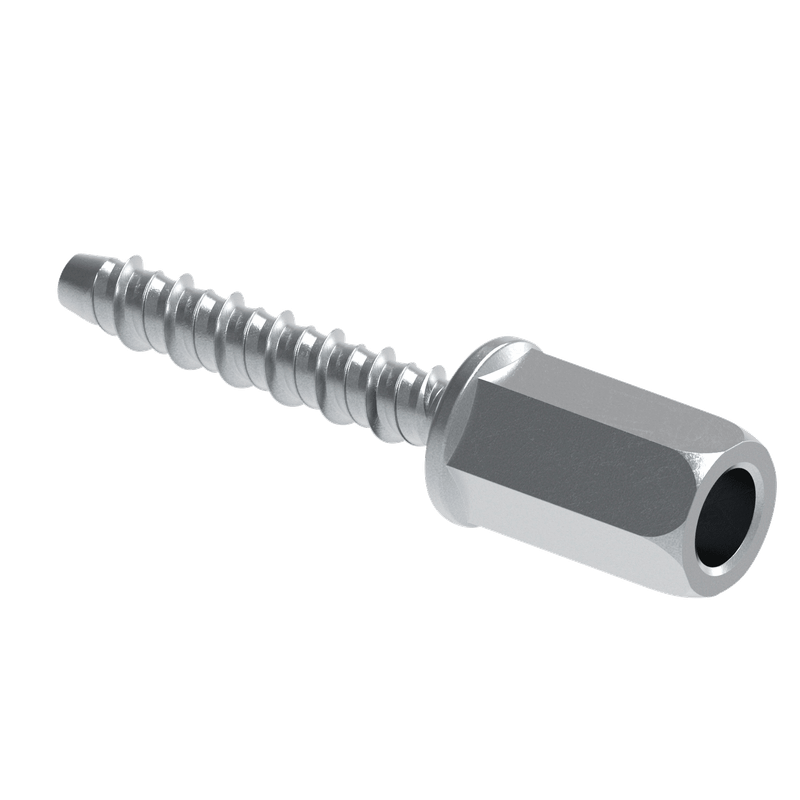

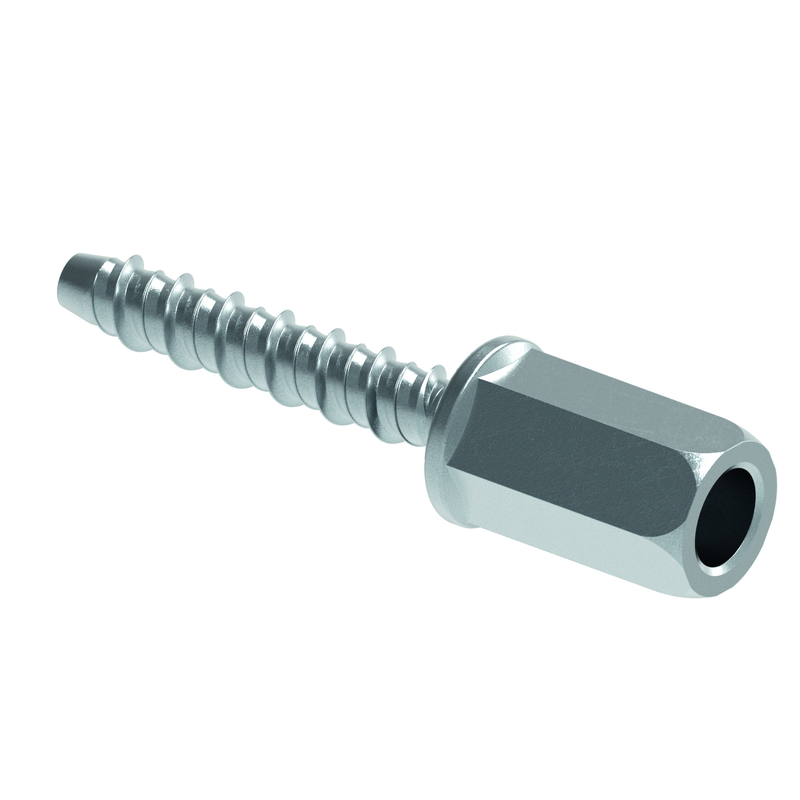

W-LX-N Concrete Screws

Ultimate performance zinc-plated concrete screws for anchoring in cracked and non-cracked concrete.

Features

  • ETA according to EAD 330232-00-0601 anchoring in cracked and non-cracked concrete
  • Seismic performance categories C1 and C2 for design of anchorages under seismic action
  • Simple and quick installation procedure
  • Unique tip and thread geometry prevents concrete spalling
  • Very high load capacity
  • Compliance with VdS CEA 4001:2024-01 (08) for applications with sprinkler systems in concrete elements
  • Up to 2 anchoring depths provide maximum installation and design flexibility
  • Removable with option to re-use
  • Reduced edge and anchor spacing distances
  • Fire resistance class R30-R120 for design of anchorages under exposure to fire
  • Material:

    Carbon Steel - St. 13523 (19MnB4)

  • Surface Protection:

    Zinc plated

Part No.DescriptionAnchor Sizedk (mm)ds (mm)L (mm)Box qty (pcs)Outer box qty (pcs)
62433304W-LX-N6x3567.63510025600
62433305W-LX-N6x5567.65510025600
  • Anchoring in concrete
  • Sprinkler systems in concrete
  • Cracked concrete
  • Non-cracked concrete
