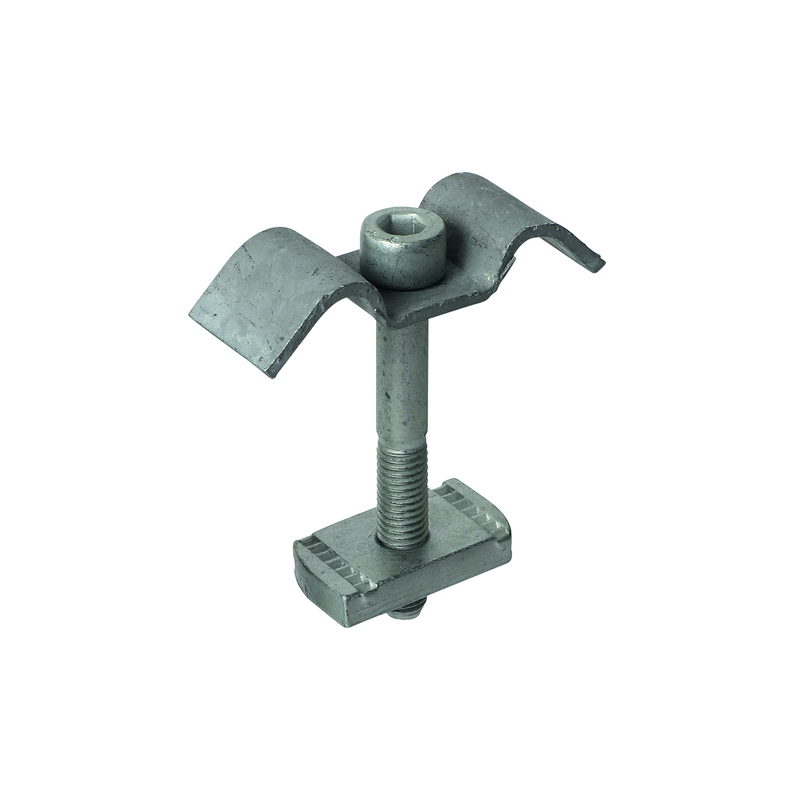

A set containing top plates, screws and slidenuts for fastening to grids and flat top surfaces.
Steel
| Part No. | G | L (mm) | B (mm) | H (mm) | Set | Pack 1 |
|---|---|---|---|---|---|---|
| 67699000 | M8 | 21 | 60 | 68 | 4 pcs. | 25 |
Each set is a complete installation kit containing 4 W-shaped top plates, 4 screws, and 4 slide nuts, providing everything needed for four secure fixing points.
The W-shaped top plate is engineered for an optimal fit to grids and open mesh flooring. Its profile allows it to bridge across grid bars securely while also remaining suitable for flat top surfaces.
To withstand harsh environmental exposure, the components are hot-dip galvanized as per ASTM A123/A 123M Standards, ensuring maximum resistance to corrosion.
It is specifically designed for rooftop support systems, enabling secure installation of Service Deck Grid and Service Deck Step onto the RapidStrut system, thereby creating industrial walkways and step overs.
The included slide nuts allow for an adjustable connection within the strut channel, enabling precise alignment of the support system before final tightening.
Yes, it is the preferred solution for securing modular rooftop supports and equipment skids to steel gratings without the need for drilling or welding.
All parts in the set are manufactured from high-grade steel, providing the mechanical strength required for industrial-grade fixing and support.
Absolutely. By utilizing a clamping mechanism with the W-plate and slide nut, the set provides a non-invasive fixing that does not require structural modifications to the grid.
Yes, while optimized for grids, the versatile design of the W-plate ensures a stable and secure connection on flat top surfaces and solid steel plates.
Yes, Hira Walraven provides BIM objects for the all product range. We can share per material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
