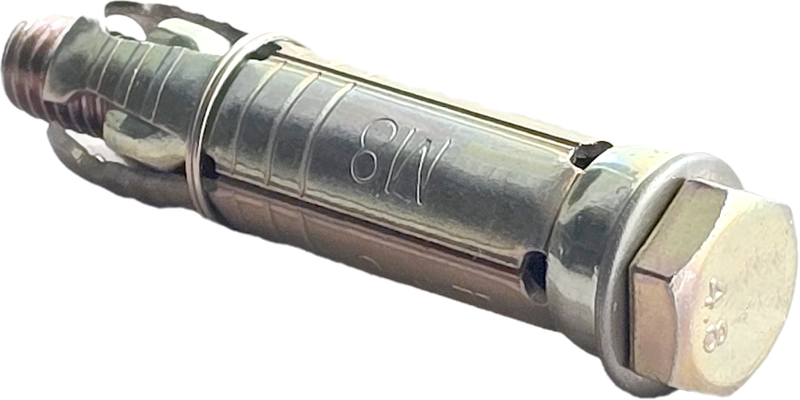

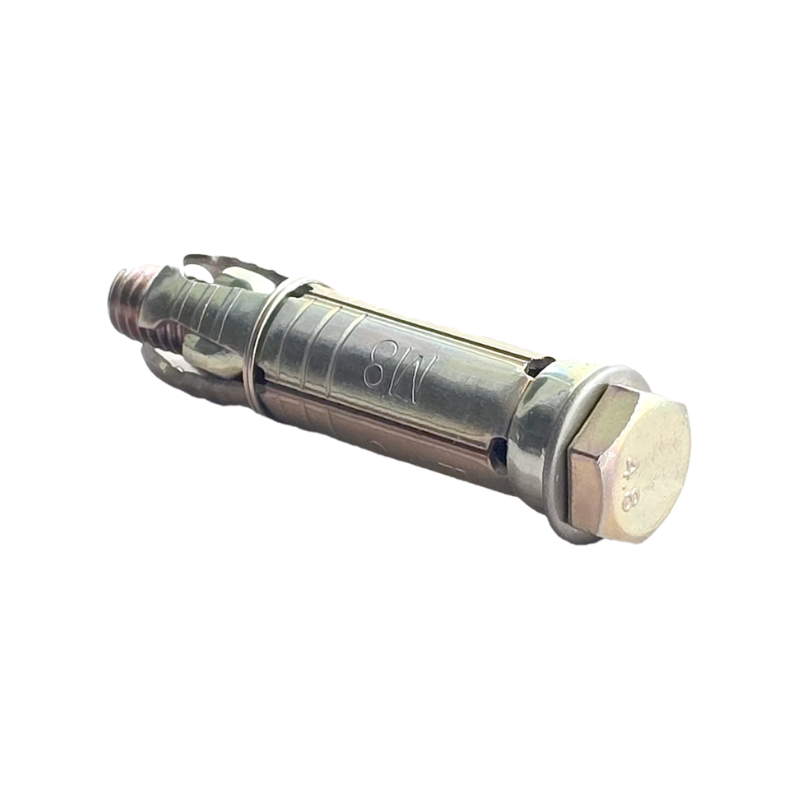

Draw-in anchors are designed for fixing into concrete or solid brick. They provide a secure and reliable fixing point for various applications.
Steel
Cadmium Plated
| Part No. | G | Bolt | Fa,z (N) |
|---|---|---|---|
| DMC33406 | M6 | - | 800 |
| DMC33408 | M8 | - | 3,500 |
| DMC33410 | M10 | - | 5,000 |
| DMC33412 | M12 | - | 7,400 |
| DMC33416 | M16 | - | 8,400 |
| DMC3340650 | M6x50 | with bolt | 800 |
| DMC3340860 | M8x60 | with bolt | 3,500 |
| DMC3341070 | M10x70 | with bolt | 5,000 |
| DMC3341290 | M12x85 | with bolt | 7,400 |
| DMC33416110 | M16x110 | with bolt | 8,400 |
