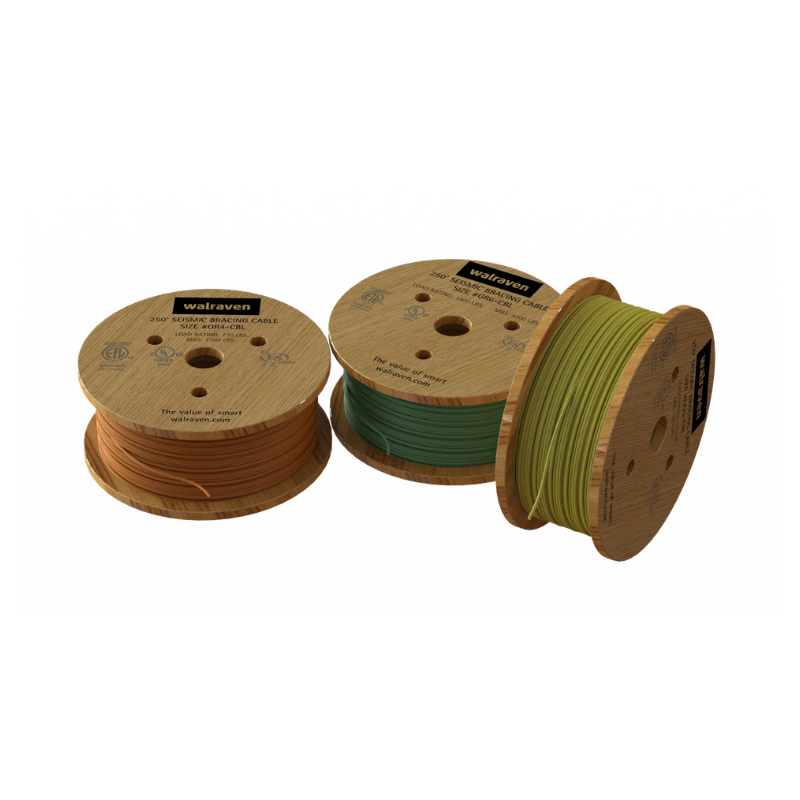

UL Listed Seismic Cables are used for seismic bracing applications, providing secure brace connections with crimping sleeves and swaged end fittings.

CONTACT SALES

Features

Easy to move around spool sizes.
Customizable cable length.
Secure brace connection with Crimping sleeves.
UL and ICC-ES LIsted for Complying with NFPA Complying with International Building Code (IBC and UBC)
Third party tested and listed to verify that cable assemblies, fittings can maintain the cable nominal breaking strenght as per ASCE 19, as required by IBC, ASCE 7 and NFPA 13.
Have swaged end fittings as required by 2012 IBC per ASCE 19-10.

Specifications and Packaging

Part No.	Wire Diameter (mm) Min - Max	Cable Length (m)	Color	Load Ratings (N)	Minimum Breaking Strength (N)	Factor of safety
DMSCBL-GO-03	2.38 - 2.68	76.2	Gold	1,900	4,180	2.20
DMSCBL-OR-04	3.17 - 3.53	76.2	Orange	3,509	7,720	2.20
DMSCBL-GR-06	4.76 - 5.22	76.2	Green	8,659	19,050	2.20

Applications

Seismic bracing
