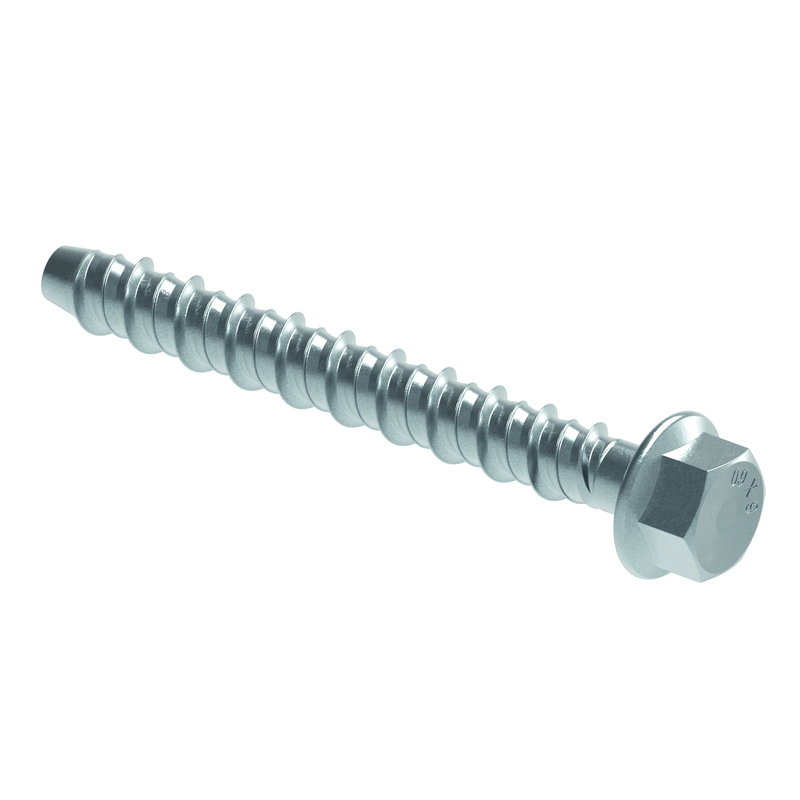

Ultimate performance zinc-plated concrete screws for anchoring in cracked and non-cracked concrete. These screws are characterized by versatility, quick and easy installation and high load capacity.
| Part No. | Description | Anchor Size | dk (mm) | ds (mm) | L (mm) | Box qty (pcs) | Outer box qty (pcs) |
|---|---|---|---|---|---|---|---|
| 62430304 | W-LX-H | 6x40 | 6 | 7.5 | 40 | 100 | 38400 |
| 62430306 | W-LX-H | 6x60 | 6 | 7.5 | 60 | 100 | 38400 |
| 62430308 | W-LX-H | 6x75 | 6 | 7.5 | 75 | 100 | 38400 |
| 62430406 | W-LX-H | 8x60 | 8 | 9.9 | 60 | 100 | 25600 |
| 62430408 | W-LX-H | 8x75 | 8 | 9.9 | 75 | 100 | 25600 |
| 62430409 | W-LX-H | 8x90 | 8 | 9.9 | 90 | 100 | 19200 |
| 62430410 | W-LX-H | 8x100 | 8 | 9.9 | 100 | 100 | 19200 |
| 62430412 | W-LX-H | 8x120 | 8 | 9.9 | 120 | 50 | 12800 |
| 62430507 | W-LX-H | 10x65 | 10 | 12.4 | 65 | 50 | 14400 |
| 62430509 | W-LX-H | 10x90 | 10 | 12.4 | 90 | 50 | 12800 |
| 62430510 | W-LX-H | 10x100 | 10 | 12.4 | 100 | 50 | 12800 |
| 62430512 | W-LX-H | 10x120 | 10 | 12.4 | 120 | 25 | 6400 |
| 62430514 | W-LX-H | 10x140 | 10 | 12.4 | 140 | 25 | 7200 |
| 62430608 | W-LX-H | 12x75 | 12 | 14.9 | 75 | 50 | 9600 |
| 62430610 | W-LX-H | 12x100 | 12 | 14.9 | 100 | 50 | 6400 |
| 62430711 | W-LX-H | 14x115 | 14 | 17.4 | 115 | 20 | 5120 |
| 62430713 | W-LX-H | 14x135 | 14 | 17.4 | 135 | 20 | 5120 |
