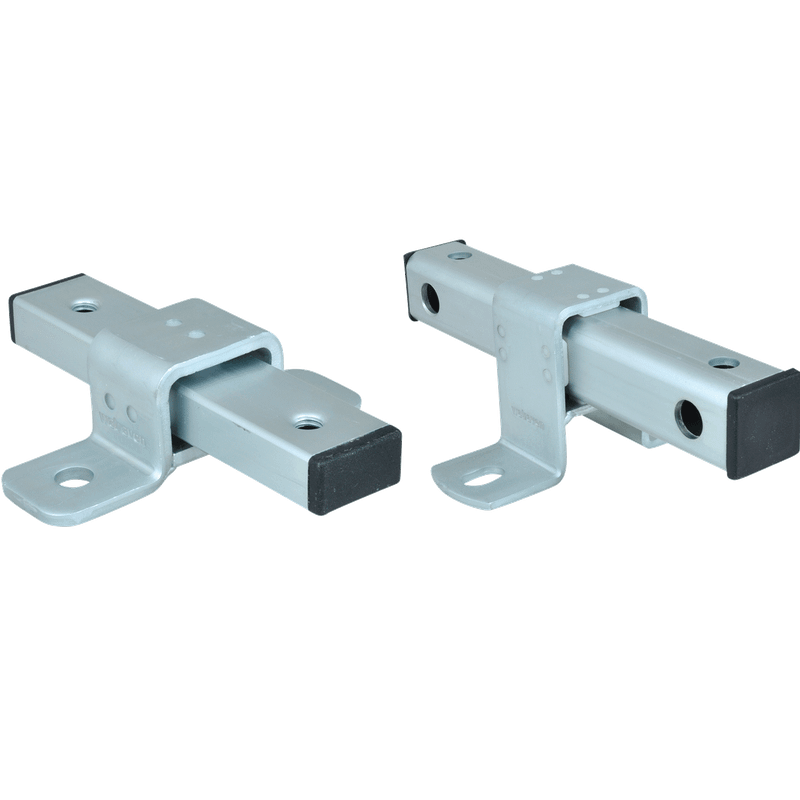

The Expansion Guide Assembly (BUP1000) provides a stable and safe double support for pipe expansion, suitable for ceiling and floor mounting. It can be combined with various connection possibilities like Bifix® G2, Plain Split Clamp or HD pipe clamps.
Metal parts made of steel; sliding plates made of PTFE (Teflon®)
Product is part of the BIS UltraProtect® 1000 system
Suitable for in-and outdoor applications
Stands min. 1,000 hours salt spray test (max. 5% redrust) according to ISO 9227

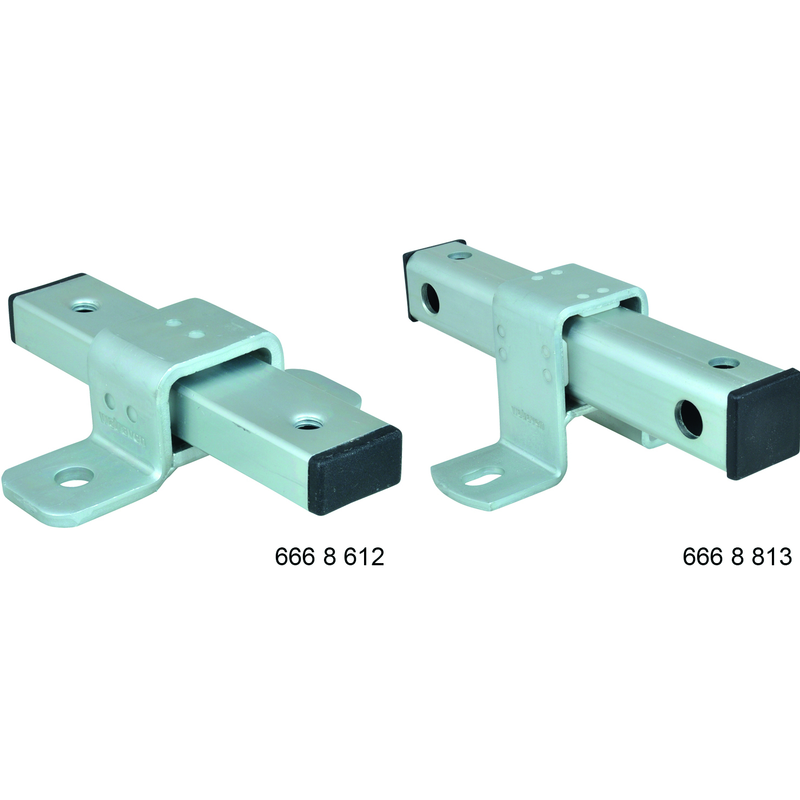

| Part No. | G (mm) | L (mm) | B (mm) | H (mm) | b (mm) | s (mm) | d1 (mm) | k (mm) | k1 (mm) | SL (max.) (mm) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 666 8 612 | Ø10 Ø12 | 170 | 135 | 46 | 35 | 3.0 | Ø13 | 120 | 100 | 60 | 1,500 | 5 |
| 666 8 813 | Ø 13 Ø 17 | 255 | 146 | 90 | 40 | 5.0 | 20xØ13 | 200 | 100 | 120 | 7,500 | 5 |
This assembly provides a stable and safe double support specifically designed for pipe expansion, ensuring controlled movement in high-performance piping systems.
It can be installed directly onto the structure in both horizontal and vertical orientations.
For maximum flexibility, it can be fixed directly on the building structure or used in combination with rail systems like RapidStrut or even Maxx rail Support system.
The assembly is tapped with different sized threads on opposing faces, allowing it to be combined with Bifix® G2, Plain Split Clamps, or HD pipe clamps.
To ensure smooth expansion with minimal resistance, the metal parts are made of steel and the sliding plates are made of PTFE (Teflon®).
Yes, it is part of the BIS UltraProtect® 1000 system, which tested and can stands a minimum of 1,000 hours in salt spray tests per ISO 9227.
Absolutely. Due to its superior BUP1000 surface protection, it is specifically suitable for both in- and outdoor applications.
Yes, Hira Walraven provides BIM objects for the all product range. We can share per material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
The technical properties are established using standardized testing methods that take maximum deflection into consideration to ensure total system reliability.
We provides intelligent support designs using CAD software and also offers on-site support, including guidance and instructions on proper application.
