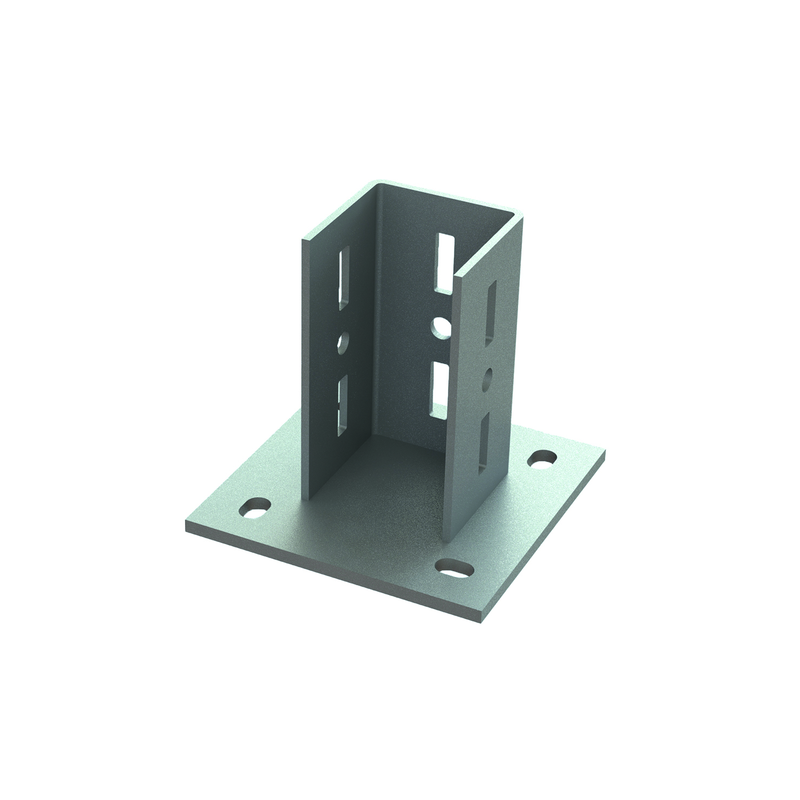

The Maxx Base Plate features a U-saddle welded on a large base plate, designed for connecting Maxx profiles to walls, floors, or ceilings.
Base plate made of steel (type S275); U-part made of steel (type S235)
| Part No. | Type | L (mm) | B (mm) | H (mm) | h (mm) | s (mm) | d1 (mm) | d2 (mm) | S (mm) | k (mm) | k1 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DMC6581819 | IP80 | 185 | 185 | 210 | 80 | 10.0 | 25x14 | 45x14 | 81 | 130 | 130 |
| DMC6581820 | IP100 | 220 | 220 | 210 | 100 | 10.0 | 25x18 | 45x14 | 101 | 160 | 160 |
| DMC6581821 | IP120 | 240 | 220 | 210 | 120 | 10.0 | 25x18 | 45x14 | 101 | 160 | 180 |
The primary function of the Maxx Base Plate is to provide a stable and secure connection between the Maxx system and the supporting structure, ensuring effective load transfer and even load distribution to the base or foundation.
It features a robust U-saddle CO2 welded onto a large base plate. This design provides a secure "socket" that fully supports the Maxx profile, ensuring stability across vertical and horizontal planes.
The base plate is made of S275 steel, while the U-part is made of S235 steel, providing high tensile strength for industrial applications.
The Maxx Base Plate is designed specifically for use with its own profile system. However, the anchoring slots are provided to accommodate minor misalignment in anchor or bolt positioning. The Maxx profile itself can also be installed in combination with standard strut systems, allowing flexible integration.
The component is hot dip galvanized as per ASTM A123/A 123M Standards, offering a thick, metallurgical zinc coating that protects against corrosion in harsh environments.
Yes, It is engineered for connecting Maxx profiles to the ceiling, as well as floors and walls, making it a versatile solution for full-room structural grids.
The saddle is CO2 welded, a high-precision industrial process that ensures deep penetration and a high-strength bond between the U-part and the plate for maximum reliability.
Yes, the combination of high-grade structural steel and hot dip galvanization makes it ideal for outdoor industrial environments.
The large footprint of the base plate is designed to accommodate four anchor points for balanced load distribution. The anchor mounting center-to-center spacing is above the minimum allowable distances in accordance with standard assessment guidelines, helping to prevent concrete failure. The wide steel plate of the base plate also helps to distribute the load to the base structure.
Yes, Hira Walraven provides BIM objects for the Maxx range. We can share material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files
