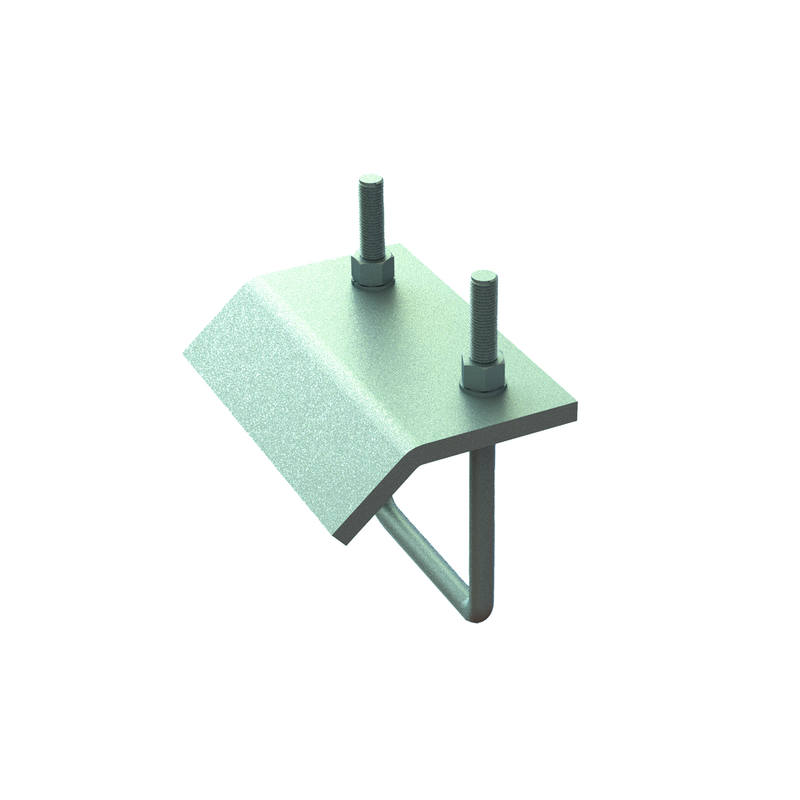

The Maxx Beam Clamp provides a solid fixing to steel construction without the need for welding or drilling. It is recommended to always use 2 beam clamps per fixing.
Steel S235JR
| Part No. | A (mm) | Type | G | L (mm) | B (mm) | B2 (mm) | H (mm) | s (mm) | Lm1 (mm) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DMC6589109 | 10-25 | IP80 | M12 | 107 | 135 | 82 | 162 | 10.0 | 74 | 8,100* | - |
| DMC6589100 | 10-25 | IP100/120 | M12 | 117 | 173 | 101 | 190 | 10.0 | 70 | 8,100* | - |
