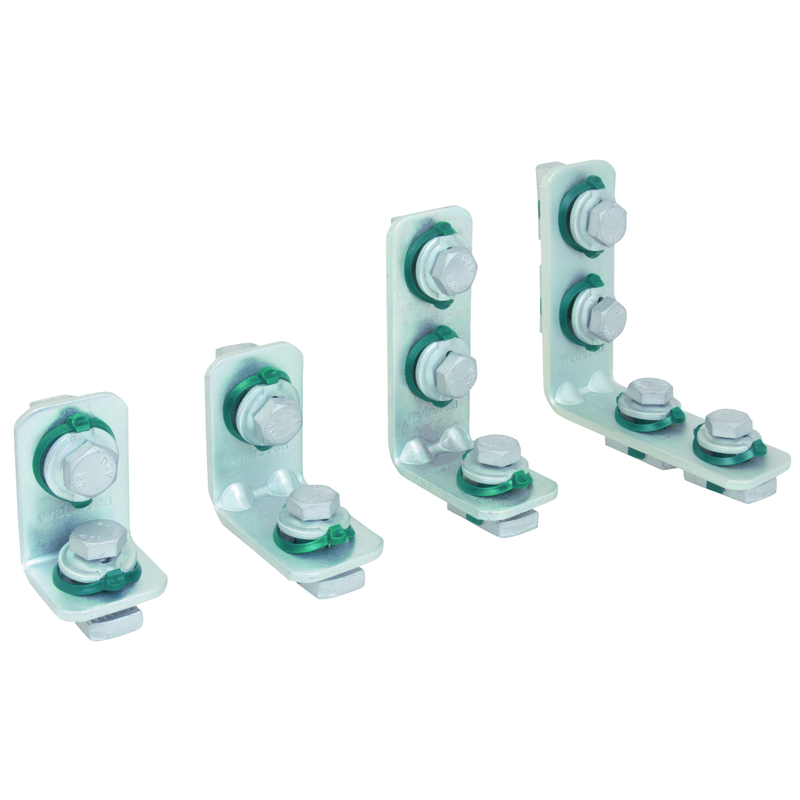

These are 90-degree connectors designed for use with strut rails, featuring pre-assembled slide nuts and a protective surface treatment.

CONTACT SALES

Features

To use with Strut Rail
Pre-assembled BIS RapidStrut® Slide nut(s)
Material:
Metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
Surface protection:
Product is part of the Walraven BIS UltraProtect® 1000 system
Suitable for in- and outdoor applications
Stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

Specifications and Packaging

Part No.	Bolt	L (mm)	H (mm)	b (mm)	s (mm)	k (mm)	a (°)	T (Nm)	Pack 1
665885102	M10	42	62	20.5	4	-	90	40	50
665885202	M10	62	62	20.5	4	-	90	40	50
665885203	M10	62	103	20.5	4	41	90	40	25
665885205	M10	103	103	20.5	4	41	90	40	20

Applications

Strut Rail Systems
Indoor Applications
Outdoor Applications
