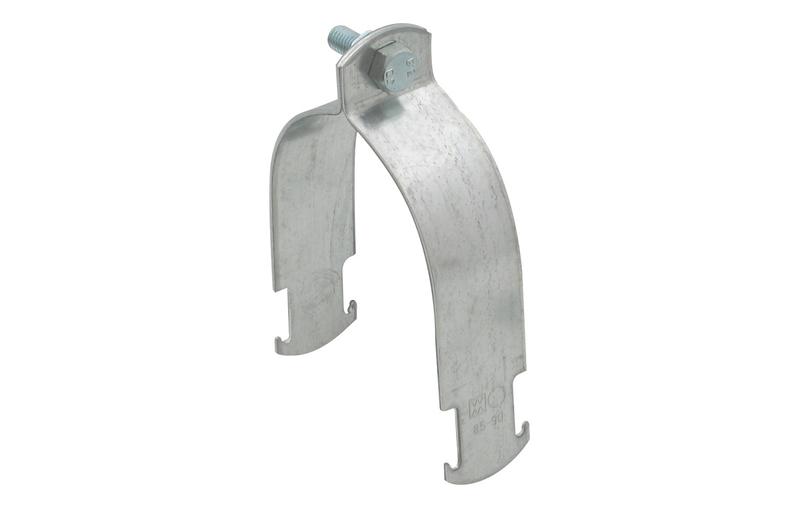

Two-part clamp for direct fixing of pipes to strut rail, with both ends suitable for locating into strut rail.
Steel 1.0226
| Part No. | D (mm) | D (") | DN (mm) | B (mm) | H (mm) | h (mm) | s (mm) | SW1 (mm) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|
| DMC2005026 | 22-26 | _ | _ | 29 | 62 | 10 | 1.5 | 10 | 100 |
| DMC2005030 | 26-30 | 3/4" | 20 | 33 | 67 | 10 | 1.5 | 10 | 100 |
| DMC2005035 | 30-35 | 1" | 25 | 38 | 72 | 10 | 1.5 | 10 | 100 |
| DMC2005040 | 35-40 | _ | _ | 43 | 77 | 10 | 1.5 | 10 | 100 |
| DMC2005045 | 40-45 | 1 1/4 " | 32 | 48 | 82 | 10 | 1.5 | 10 | 100 |
| DMC2005050 | 45-50 | 1 1/2" | 40 | 54 | 88 | 10 | 2 | 13 | 100 |
| DMC2005055 | 50-55 | _ | _ | 59 | 93 | 10 | 2 | 13 | 100 |
| DMC2005060 | 55-60 | _ | _ | 64 | 98 | 10 | 2 | 13 | 100 |
| DMC2005065 | 60-65 | 2" | 50 | 69 | 103 | 10 | 2 | 13 | 100 |
| DMC2005070 | 65-70 | _ | _ | 74 | 108 | 10 | 2 | 13 | 100 |
| DMC2005075 | 70-75 | _ | _ | 79 | 113 | 10 | 2 | 13 | 50 |
| DMC2005080 | 75-80 | 2 1/2" | 65 | 84 | 118 | 10 | 2 | 13 | 50 |
| DMC2005085 | 80-85 | _ | _ | 89 | 123 | 10 | 2 | 13 | 50 |
| DMC2005090 | 85-90 | 3" | 80 | 94 | 128 | 10 | 2 | 13 | 50 |
| DMC2005095 | 90-95 | _ | _ | 99 | 133 | 10 | 2 | 13 | 50 |
| DMC2005100 | 95-100 | _ | _ | 104 | 138 | 10 | 2 | 13 | 50 |
| DMC2005105 | 100-105 | _ | _ | 110 | 148 | 17 | 2.5 | 17 | 50 |
| DMC2005110 | 105-110 | _ | _ | 115 | 153 | 17 | 2.5 | 17 | 50 |
| DMC2005120 | 110-120 | 4" | 100 | 125 | 163 | 17 | 2.5 | 17 | 50 |
| DMC2005130 | 120-130 | _ | _ | 135 | 173 | 17 | 2.5 | 17 | 25 |
| DMC2005140 | 130-140 | 5" | 125 | 145 | 145 | 17 | 2.5 | 17 | 25 |
