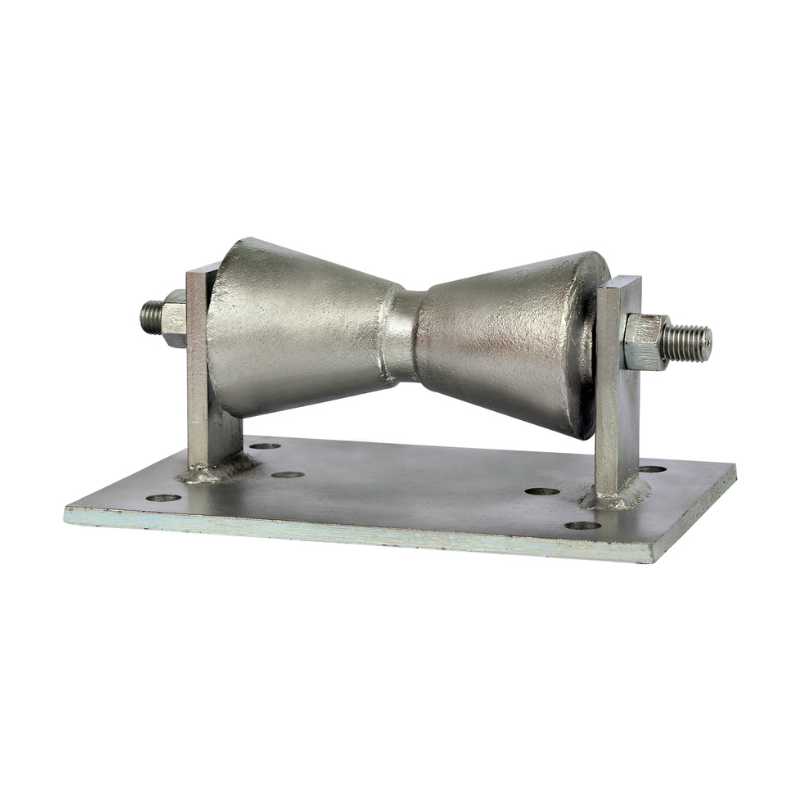

The roller stand provides support for pipes, allowing horizontal movement due to expansion and contraction. It also allows for vertical adjustment up to 6".
Steel
Cast iron
hot dipped galvanized as per ASTM A123/A123M Standards
Nickle plated
hot dipped galvanized as per ASTM A123/A123M Standards
| Part No. | D (") | L (mm) | B (mm) | B2 (mm) | d1 (mm) | k (mm) | k1 (mm) | C (mm) | Fa, z (N) |
|---|---|---|---|---|---|---|---|---|---|
| DMC277060100 | 2" | 152 | 213 | 140 | 16 | 86 | 102 | 44 | 5,200 |
| DMC277060100 | 2½" | 152 | 213 | 140 | 16 | 86 | 102 | 44 | 5,200 |
| DMC277060100 | 3" | 152 | 213 | 140 | 16 | 86 | 102 | 44 | 5,200 |
| DMC277060100 | 3½" | 152 | 213 | 140 | 16 | 86 | 102 | 44 | 5,200 |
| DMC277115168 | 4" | 152 | 251 | 155 | 16 | 121 | 108 | 52 | 5,200 |
| DMC277115168 | 5" | 152 | 251 | 155 | 16 | 121 | 108 | 52 | 5,200 |
| DMC277115168 | 6" | 152 | 251 | 155 | 16 | 121 | 108 | 52 | 5,200 |
| DMC277219273 | 8" | 178 | 219 | 275 | 20 | 178 | 127 | 87 | 12,500 |
| DMC277219273 | 10" | 178 | 219 | 275 | 20 | 178 | 127 | 87 | 12,500 |
| DMC277323355 | 12" | 203 | 276 | 340 | 20 | 229 | 152 | 98 | 16,000 |
| DMC277323355 | 14 " | 203 | 276 | 340 | 20 | 229 | 152 | 98 | 16,000 |
| DMC277406508 | 16" | 229 | 318 | 406 | 24 | 264 | 165 | 108 | 36,000 |
| DMC277406508 | 18" | 229 | 318 | 406 | 24 | 264 | 165 | 108 | 36,000 |
| DMC277406508 | 20" | 229 | 318 | 406 | 24 | 264 | 165 | 108 | 36,000 |
| DMC277558609 | 22" | 229 | 343 | 440 | 24 | 292 | 165 | 111 | 53,000 |
| DMC277558609 | 24" | 229 | 343 | 440 | 24 | 292 | 165 | 111 | 53,000 |
| DMC277660762 | 26" | 305 | 432 | 500 | 28 | 362 | 197 | 130 | 74,000 |
| DMC277660762 | 28" | 305 | 432 | 500 | 28 | 362 | 197 | 130 | 74,000 |
| DMC277660762 | 30" | 305 | 432 | 500 | 28 | 362 | 197 | 130 | 74,000 |
| DMC2779141067 | 36" | 300 | 500 | 540 | 28 | 415 | 215 | 125 | 103,000 |
| DMC2779141067 | 42" | 300 | 500 | 540 | 28 | 415 | 215 | 125 | 103,000 |
