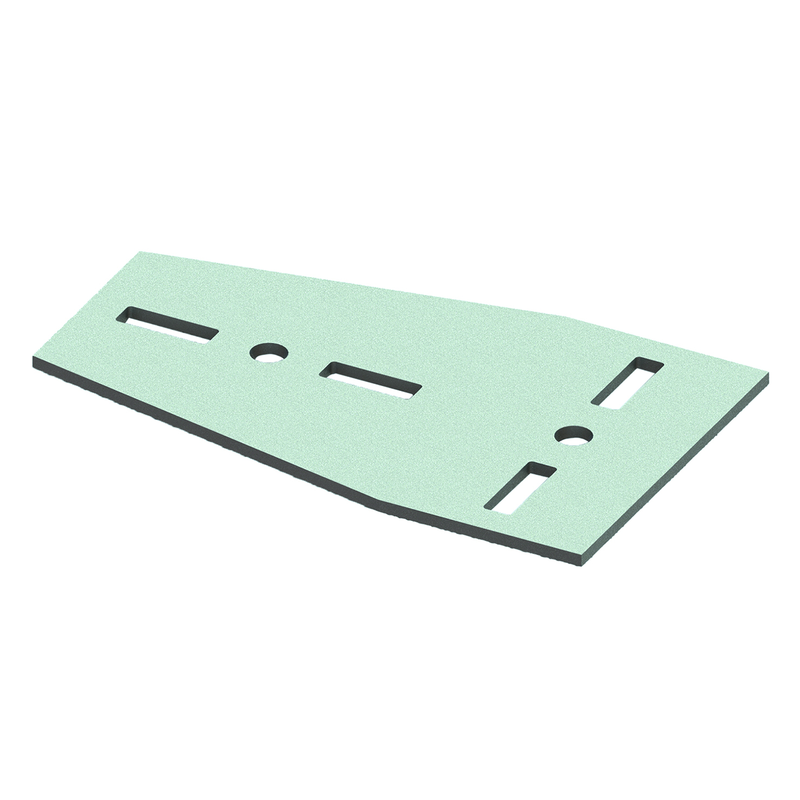

The Maxx T Connector is a T-connector for Maxx profiles. It can also be used to strengthen Maxx constructions with a joint connection.
Steel S235JR
| Part No. | Type | B (mm) | H (mm) | s (mm) | d1 (mm) | d2 (mm) | Fa,x (N) | Fa,x2 (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|
| DMC6589900 | IP80 | 175 | 270 | 5 | 45x14 | 17 | 5,000* | 8,250* | - |
| DMC6589901 | IP100 | 175 | 290 | 6 | 45x14 | 17 | 5,000* | 8,250* | - |
| DMC6589902 | IP120 | 181 | 313 | 6 | 45x14 | 17 | 5,000* | 8,250* | - |
