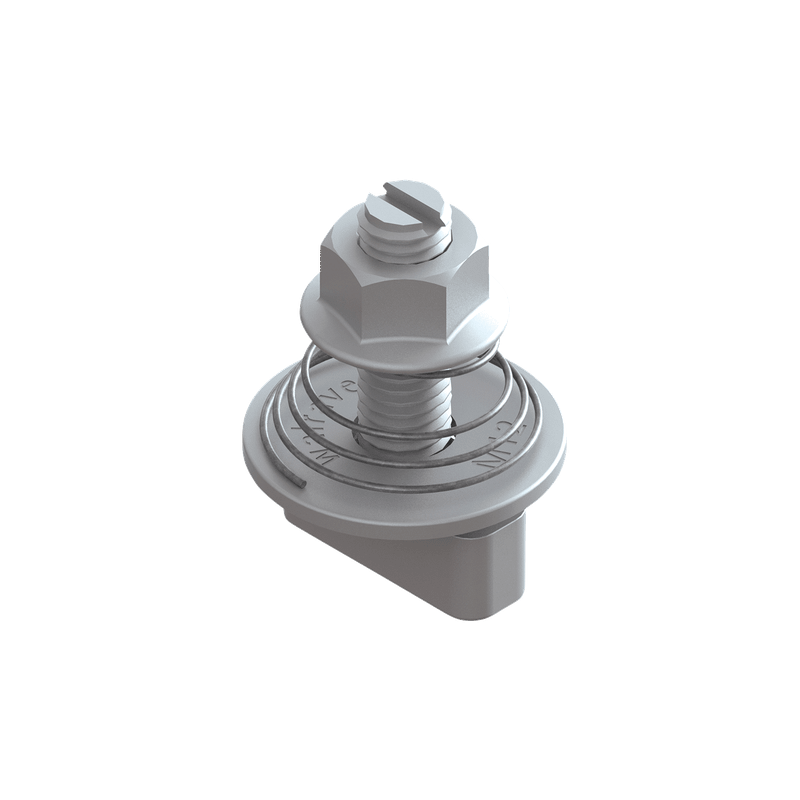

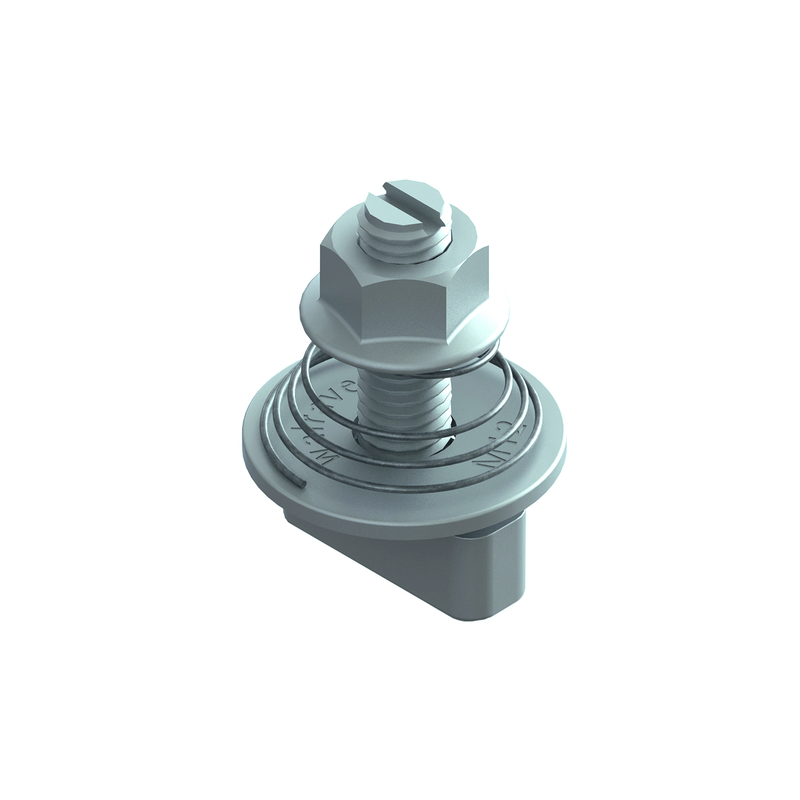

The Maxx Hammer fix is a pre-assembled connector designed for rail fixing systems. It features a form-locking design and visible mark for easy installation.
Steel, strength class 8.8; spring made of stainless steel (AISI 316)
| Part No. | Type | G | L (mm) | B (mm) | B2 (mm) | H (mm) | h (mm) | s (mm) | Tinst (Nm) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 65219214 | HF | M12 | 35 | 40 | 12 | 53 | 12.8 | 2.5 | 75.0 | 14,500 | 25 |
The Maxx Hammer Fix is a pre-assembled connector designed for high-strength attachments within heavy-duty rail fixing systems, offering a faster alternative to traditional bolt-and-nut assemblies.
The form-locking connector retains the assembly securely in place within the profile before final tightening, allowing for hands-free alignment of brackets and components.
The visible mark allows installers to instantly verify the orientation of the hammer head inside the profile, ensuring it is correctly locked and safe for tightening.
It features a square shaft that locks into the Maxx profile's hole pattern, keeping the bolt stationary while the nut is tightened into position.
The bolt is manufactured from Strength Class 8.8 steel, and the integrated tension spring is made of AISI 316 stainless steel for superior longevity and grip.
Yes, the assembly is hot dip galvanized, providing a heavy-duty protective coating that meets the rigorous demands of mechanical engineering and outdoor construction.
Being pre-assembled and ready for use significantly reduces on-site labor time and minimizes the risk of losing small components such as washers or springs during installation, ultimately speeding up the overall process.
Yes it can be use to all connectors of Maxx Rail System in any orientation.
It is applicable for any industries requiresHeavy installation in use Maxx Rail Profile
Yes, Hira Walraven provides BIM objects for the Maxx range. We can share material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files
