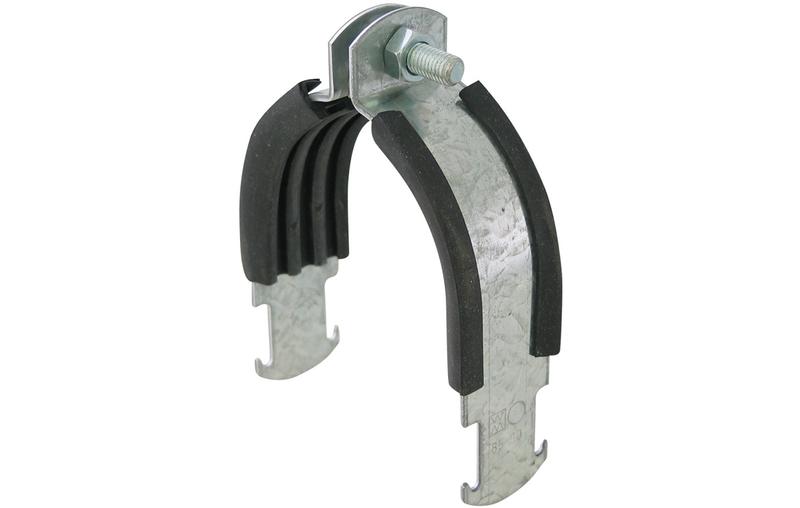

This is a two-part clamp designed for direct fixing of pipes to strut rails. It features a noise insulating EPDM rubber lining and is suitable for locating into strut rails.
Steel 1.0226
| Part No. | D (mm) | D (") | DN (mm) | B (mm) | H (mm) | h (mm) | SW1 (mm) | Pack 1 |
|---|---|---|---|---|---|---|---|---|
| DMC2105105 | 100-105 | - | - | 98 | 134 | 12 | 13 | 50 |
| DMC2105110 | 105-110 | - | - | 117 | 159 | 17 | 17 | 50 |
| DMC2105120 | 110-120 | 4" | 100 | 147 | 189 | 17 | 17 | 25 |
| DMC2105130 | 120-130 | - | - | 165 | 210 | 17 | 17 | 25 |
| DMC2105140 | 130-140 | 5" | 125 | 208 | 244 | 17 | 17 | 25 |
| DMC2105225 | 215-225 | 8" | 200 | 233 | 276 | 17 | 17 | 25 |
| DMC2105250 | 240-250 | - | - | 258 | 301 | 17 | 17 | 25 |
| DMC2105315 | 315 | - | - | 323 | 366 | 17 | 17 | 25 |
