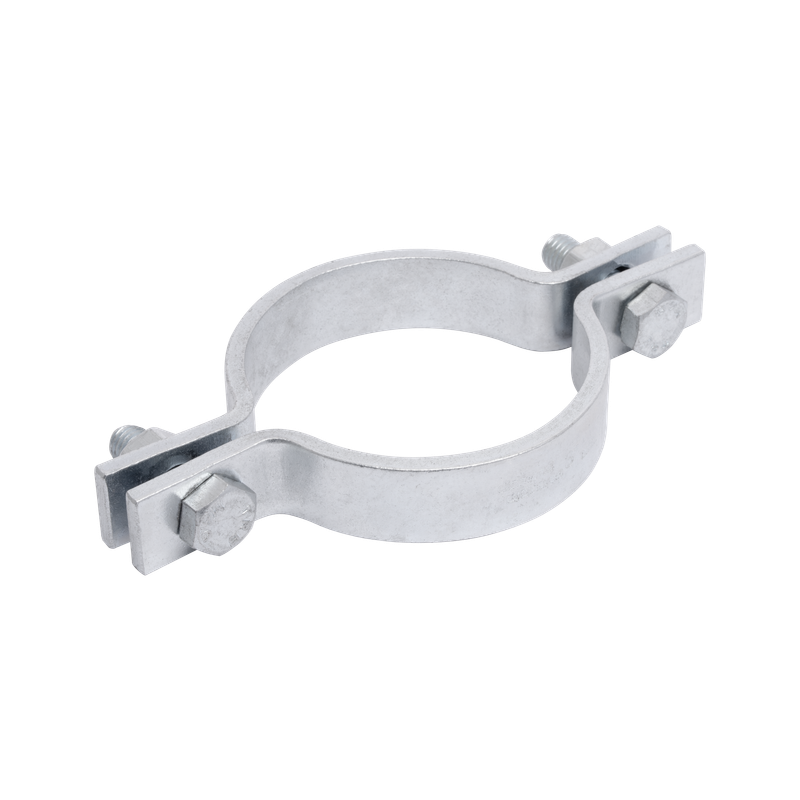

Two bolt clamps provide sturdier support and act as a horizontal support for pipes.
Steel
| Part No. | D (") | G (mm) | k (mm) | H (mm) | C (mm) | Fa,z | Pack 1 |
|---|---|---|---|---|---|---|---|
| DMC211022 | 1/2 | M10 | 68 | 97 | 12 | 1,700 | 50 |
| DMC211028 | 3/4 | M10 | 76 | 105 | 12 | 1,700 | 50 |
| DMC211035 | 1 | M10 | 84 | 113 | 12 | 1,700 | 50 |
| DMC211040 | 1 1/4 | M10 | 92 | 121 | 12 | 1,700 | 40 |
| DMC211048 | 1 1/2 | M10 | 98 | 127 | 12 | 1,700 | 40 |
| DMC211060 | 2 | M10 | 116 | 156 | 16 | 1,700 | 40 |
| DMC211075 | 2 1/2 | M12 | 142 | 182 | 16 | 4,000 | 35 |
| DMC211090 | 3 | M12 | 156 | 196 | 16 | 4,000 | 35 |
| DMC211100 | 3 1/2 | M12 | 168 | 208 | 16 | 4,000 | 30 |
| DMC211115 | 4 | M12 | 180 | 220 | 19 | 4,000 | 30 |
| DMC211140 | 5 | M16 | 214 | 252 | 19 | 6,000 | 20 |
| DMC211168 | 6 | M16 | 242 | 290 | 22 | 6,000 | 15 |
| DMC211220 | 8 | M16 | 300 | 352 | 25 | 11,000 | 5 |
| DMC211273 | 10 | M16 | 358 | 406 | 25 | 12,000 | 4 |
| DMC211323 | 12 | M20 | 430 | 490 | 25 | 15,000 | 3 |
| DMC211355 | 14 | M20 | 480 | 546 | 28 | 15,000 | 3 |
| DMC211406 | 16 | M20 | 532 | 597 | 28 | 22,000 | 2 |
| DMC211457 | 18 | M20 | 610 | 686 | 32 | 22,000 | 2 |
| DMC211508 | 20 | M20 | 680 | 776 | 35 | 22,000 | 1 |
| DMC211610 | 24 | M20 | 780 | 876 | 42 | 22,000 | 1 |
