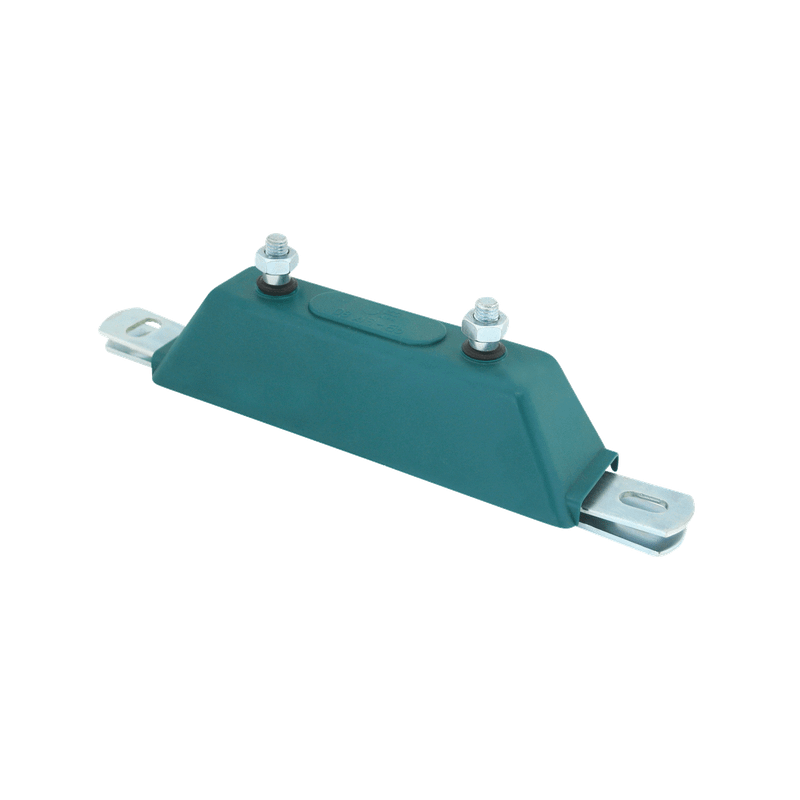

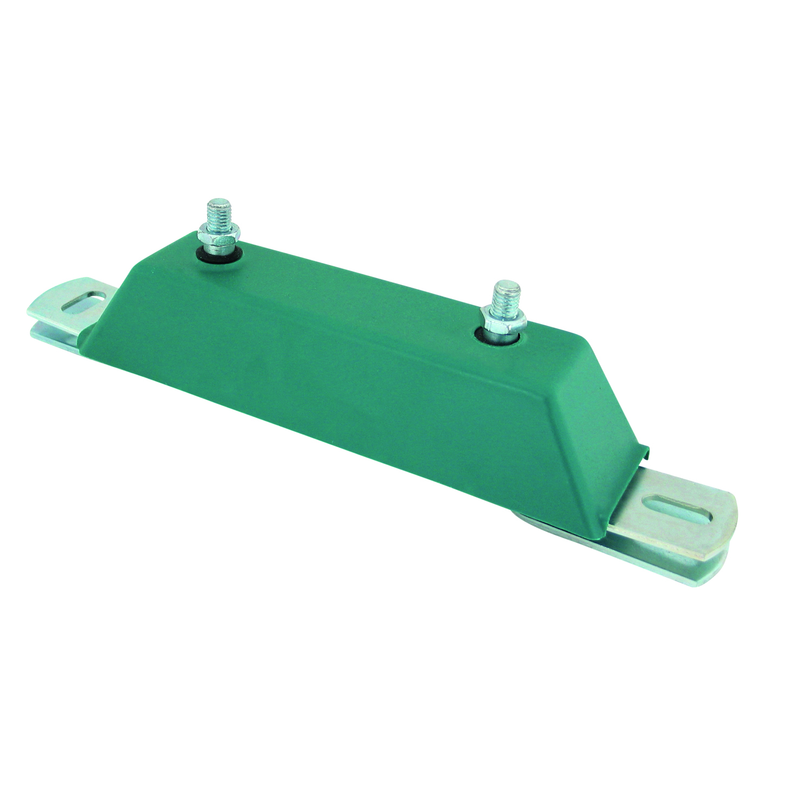

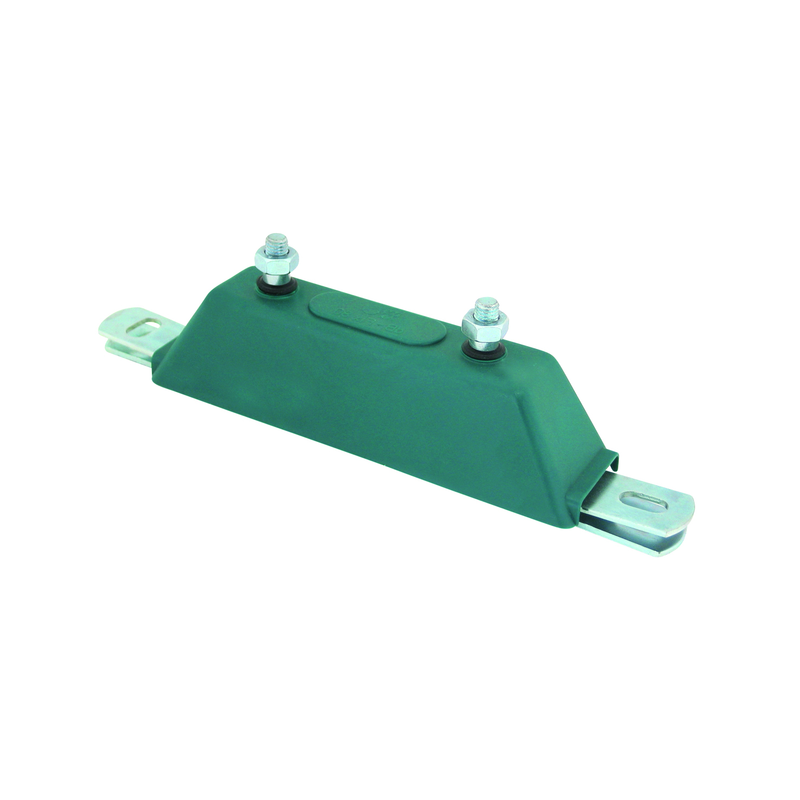

dBFIX® 80/200 Fixing Point Assembly

The dB-Fix® 80/200 is a high-stability noise insulating fixing point designed to secure pipe installations while preventing the transfer of vibration and sound.

It features a sound-insulating lining that meets DIN 4109 requirements, ensuring effective noise reduction in building services.

The assembly utilizes a BIS HD500 clamp optimized for pipe diameters ranging from Ø59 mm to Ø65 mm using dB-Fix 80, while dB-Fix 200 can be utilized for pipe diameters ranging from Ø72 mm to Ø179 mm.

To ensure a highly stable and durable fixing point, the assembly is made from high-grade steel with noise-isolating rubber sandwiched in between.

It is ideal for pipe installations requiring strict noise insulation and vibration control, such as water supply and drainage systems, particularly in residential, commercial, and healthcare facilities.

Yes, the product range includes Medium (6698206) and Heavy (6698208) Fix Point Consoles to accommodate different load requirements, particularly where vibration and noise isolation are not critical.

Yes, Hira Walraven provides BIM objects for the all product range. We can share per material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.

Safe working loads are established through standardized testing methods, and designs can be validated using advanced analysis tools like finite element software.

Hira Walraven provides on-site support, including offering technical advice on the proper application.

A dedicated fixing point like the dB-Fix® provides a stable and sound-insulating anchor that manages thermal expansion forces while maintaining acoustic integrity.
