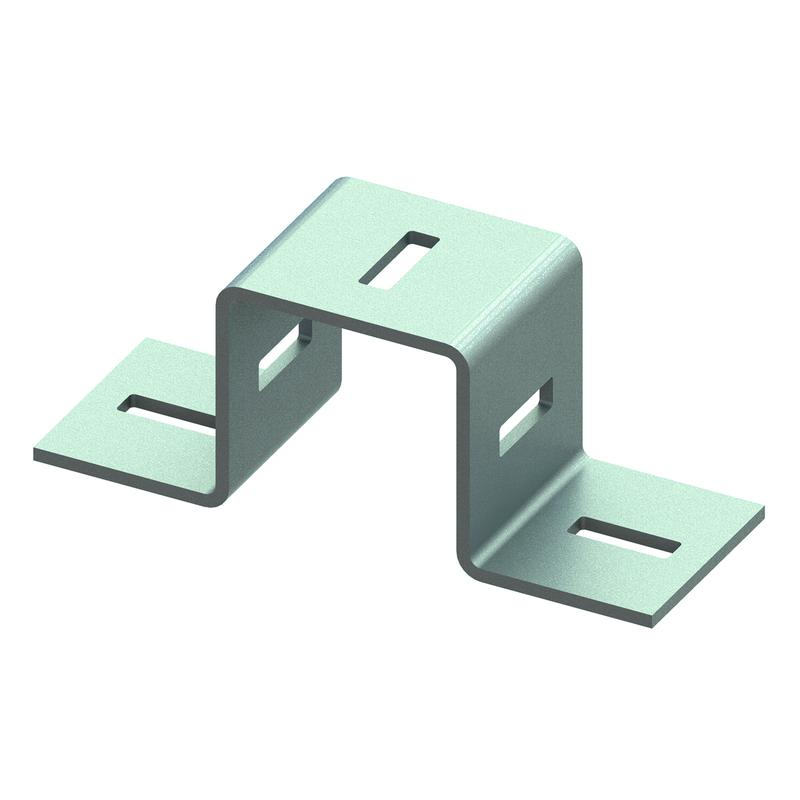

The Maxx Cross Connector is a cross-connector for Maxx profiles that can be used to connect Maxx profiles to a wall or ceiling.
Steel S235JR
| Part No. | Type | L (mm) | L1 (mm) | B (mm) | H (mm) | s (mm) | d1 (mm) | Fa,x (N) | S (mm) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| DMC6589080 | IP80 | 275 | 200 | 75 | 84 | 5 | 45x14 | 5,000* | 8,250** | - |
| DMC6589101 | IP100 | 275 | 200 | 95 | 105 | 6 | 45x14 | 5,000* | 8,250** | - |
| DMC6589102 | IP120 | 287 | 200 | 95 | 125 | 6 | 45x14 | 5,000* | 8,250** | - |
The Maxx Cross Connector is a heavy-duty structural component designed for creating cross-intersections between Maxx profiles.
It is manufactured from high-grade Steel S235JR, providing the structural rigidity and tensile strength required for industrial-scale support frameworks.
Yes, the connector is hot dip galvanized as per ASTM A123/A 123M Standards, offering a thick protective zinc coating for maximum durability in harsh conditions.
Yes, its two wings can be fixed directly to the wall using anchors, holding the Maxx Rail channel in place on the wall, making it suitable for riser applications to support cable trays and pipes with minimal space between the wall and services.
The box-shaped profile and through-channel bolting provide stability at the intersecting connection.
Yes, each Maxx Rail profile has its own cross connector. Using the Maxx Bolt Set or Maxx Hammerfix, all Maxx Rail profiles can be combined into a single supporting system.
It is designed to be used with Maxx Bolt Sets (ZFC) and Maxx Hammerfix, ensuring a high-torque, vibration-resistant connection within the profile perforations.
Hot-dip galvanization (HDG) is preferred because it provides strong corrosion protection and extends the service life of the component, especially in outdoor environments.
Yes, Hira Walraven provides BIM objects for the Maxx range. We can share material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
It is widely utilized in industrial construction and rail fixing systems for building multi-tiered pipe galleries, equipment support grids, and secondary structural frames.
