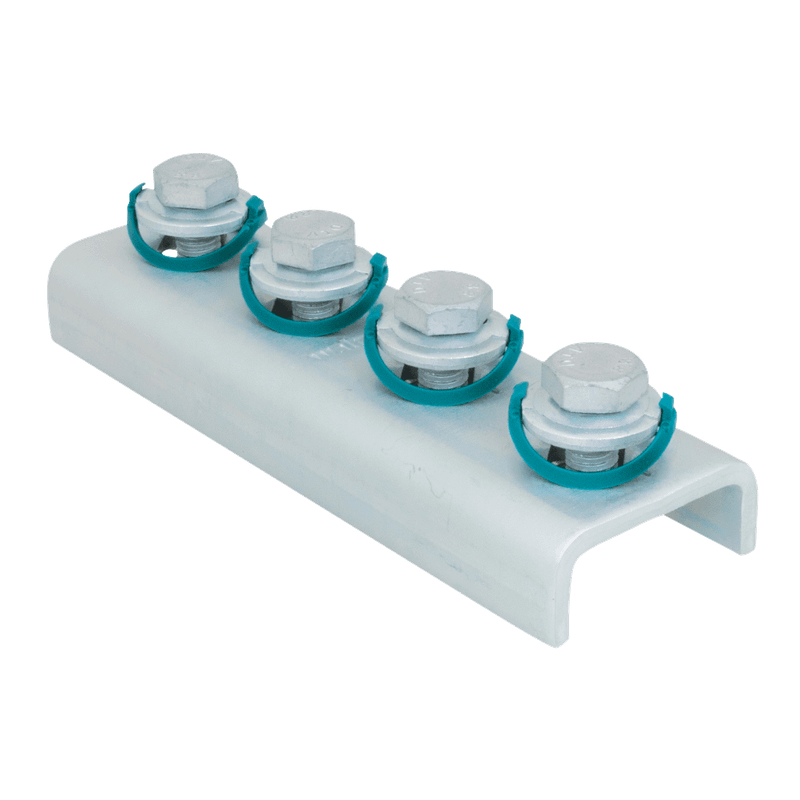

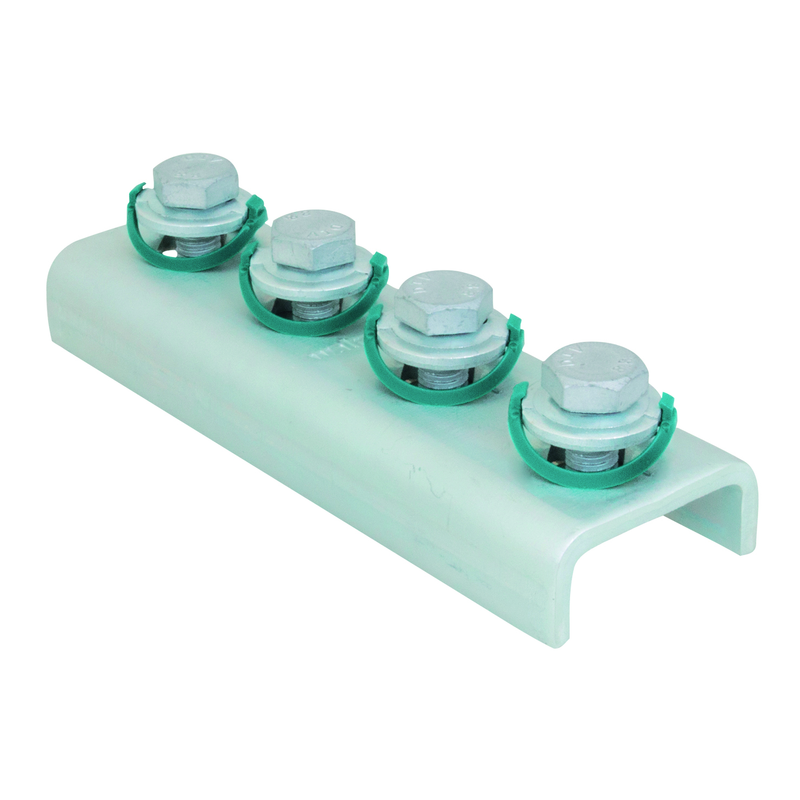

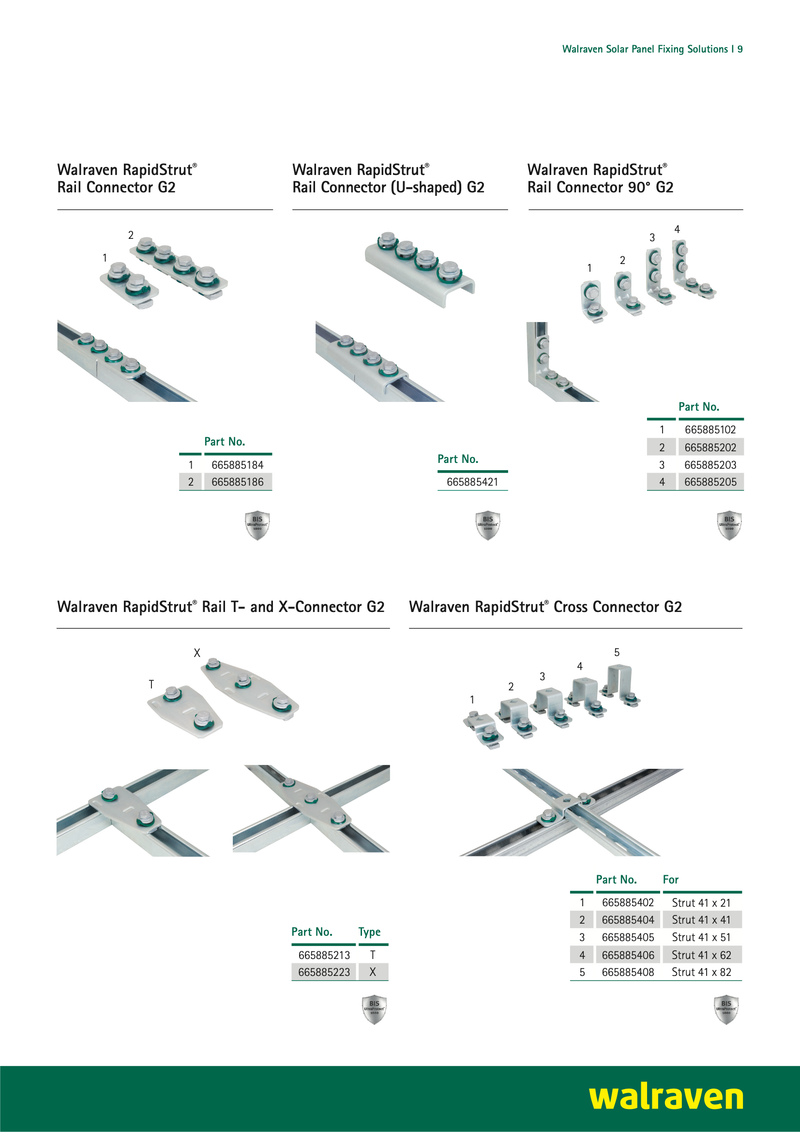

RapidStrut® U-shaped Linear Connectors G2 (BUP1000)

U-shaped linear connectors designed for use with strut rails, featuring pre-assembled slide nuts for easy installation.

CONTACT SALES

Features

To use with Strut Rail
Pre-assembled BIS RapidStrut® Slide nut(s)
Material:
Metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
Surface protection:

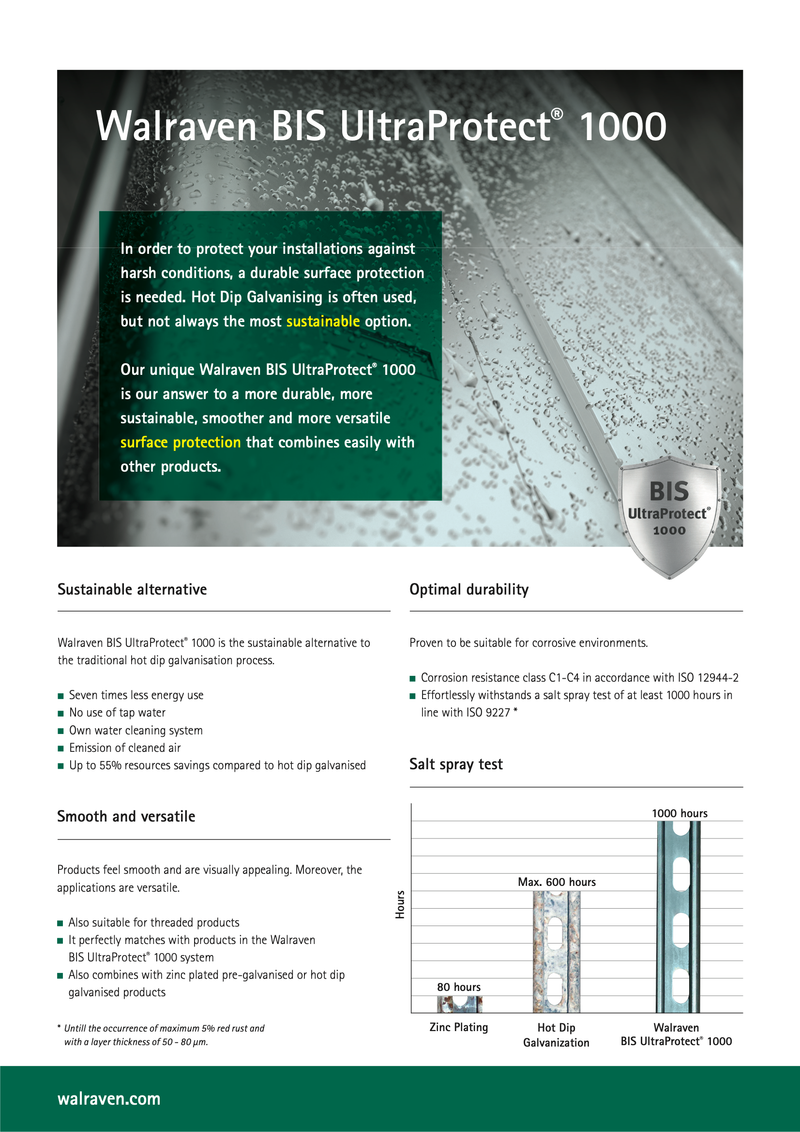

Product is part of the Walraven BIS UltraProtect® 1000 system
Suitable for in-and outdoor applications
Stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

Specifications and Packaging

Part No.	Bolt	L (mm)	T (Nm)	Pack 1
665885421	4 x M10	163	40	50

Applications

Strut rail systems
Indoor applications
Outdoor applications
