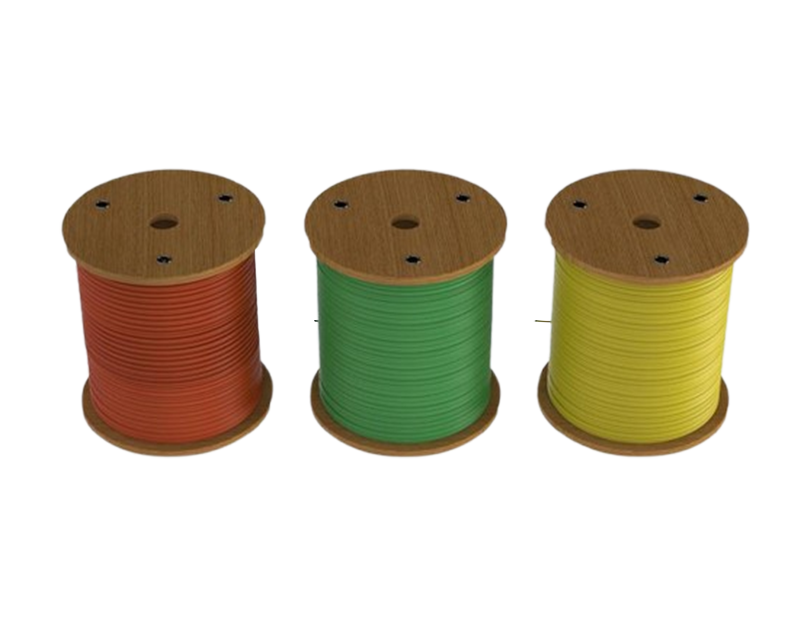

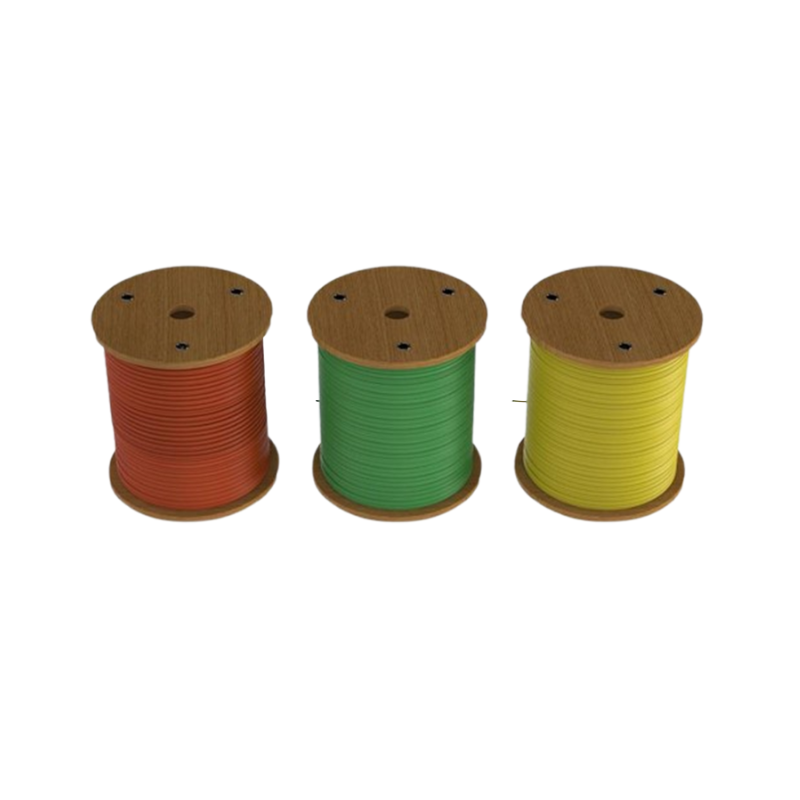

Standard Seismic Cables

These seismic cables are designed for bracing applications, offering secure connections with crimping sleeves and customizable lengths.

CONTACT SALES

Features

Easy to move around spool sizes.
Customizable cable length.
Secure brace connection with Crimping sleeves.
Designed to verify that cable assemblies, fittings can maintain the cable nominal breaking strenght as per ASCE 19, as required by IBC, ASCE 7 and NFPA 13.
Have swaged end fittings as required by 2012 IBC per ASCE 19-10.

Specifications and Packaging

Part No.	Wire Diameter (mm) Min - Max	Cable Length (m)	Color	Load Ratings (N)	Minimum Breaking Strength (N)	Factor of safety
DMSCBL-ST-025	2.5	100	Gold	2,015	4,433	2.20
DMSCBL-ST-035	3.5	100	Orange	4,825	10,614	2.20
DMSCBL-ST-045	4.5	100	Green	8,659	19,050	2.20

Applications

Seismic bracing
