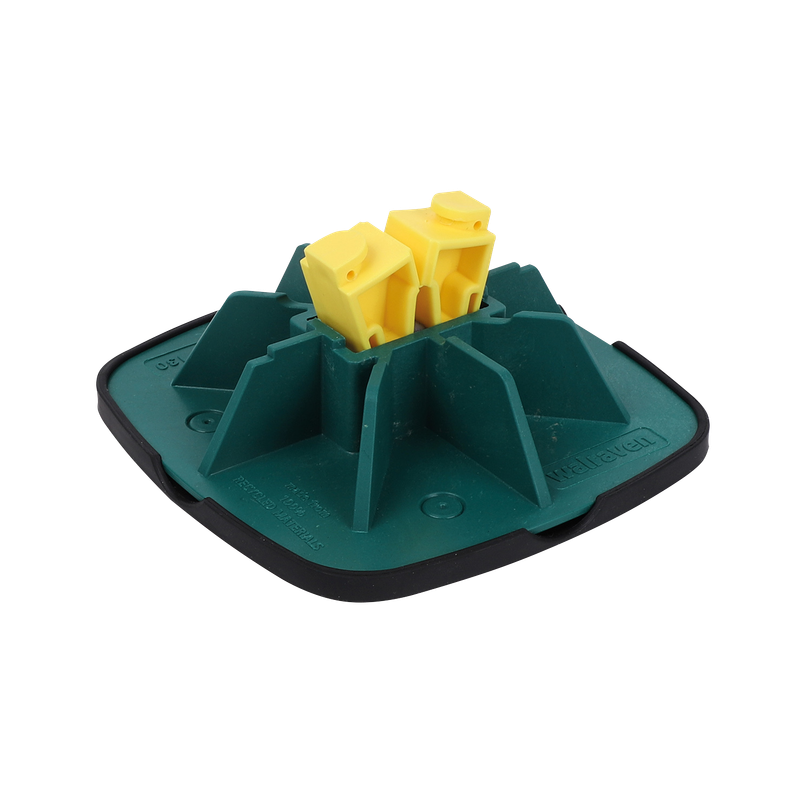

The Yeti®130 is a modular supporting system for light rooftop installations, suitable for horizontal and vertical applications. It provides a flexible and cost-effective solution for supporting pipes, cable runs, air duct channels, and more.
| Part No. | Model | L (mm) | B (mm) | For Rail | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|
| 67685130 | Including non-slip anti-vibration mat | 130 | 130 | Strut 41x21 | 2,500 | 10 |
The Yeti®130 is a modular supporting system designed for light rooftop installations, providing a stable base for pipes, cable runs, and air duct channels.
Yes, its versatile design is suitable for both horizontal and vertical applications, offering maximum flexibility for complex rooftop MEP layouts.
It features a unique click-mechanism that allows for quick and safe assembly of the strut rail to the base without the need for complex tools.
Absolutely. Each unit comes with a non-slip anti-vibration mat that protects the waterproof membrane and prevents the support from shifting.
The mouldings are made of WPC (Wood Plastic Composite), an eco-friendly material derived from recycled plastic and wood fiber.
Yes, the system provides noise reduction according to DIN EN ISO 10140-1 and 10140-3, making it ideal for noise-sensitive building environments.
The Yeti®130 is UV-resistant according to EN ISO 16474-3:2014-02, a certification by ITB that ensures long-term durability in outdoor rooftop conditions.
It is a cost-effective solution for supporting pipes, cable runs, and air duct channels, particularly for lighter loads in climate installations.
Yes, it is designed to work seamlessly with RapidStrut® profiles, allowing for easy integration with Hira Walraven's full range of pipe clamps and accessories.
Yes, Hira Walraven provides BIM objects for the Yeti®130, enabling engineers to accurately calculate load distribution and plan non-penetrative rooftop supports.
