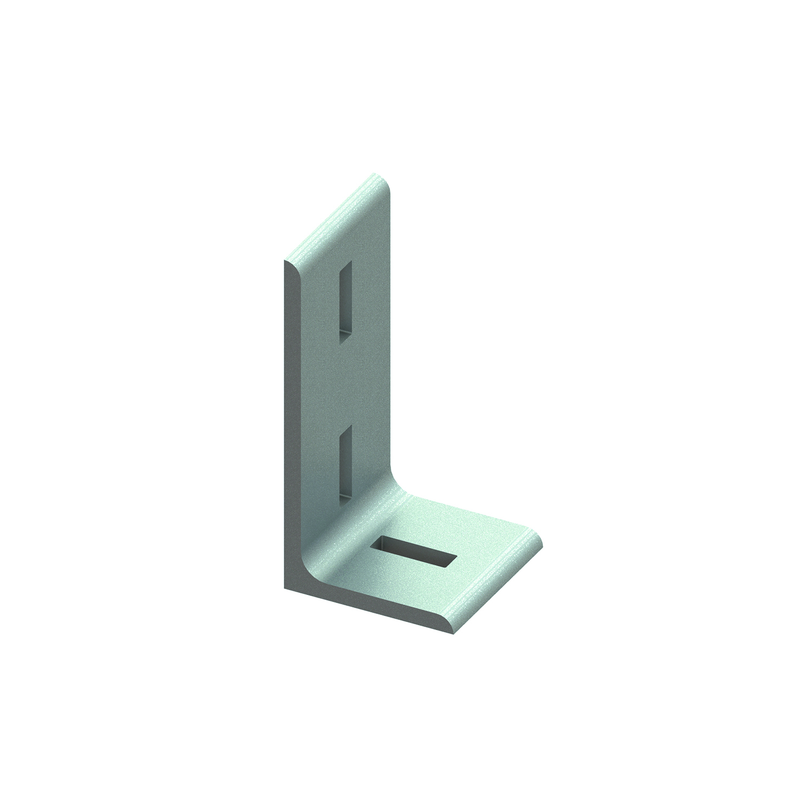

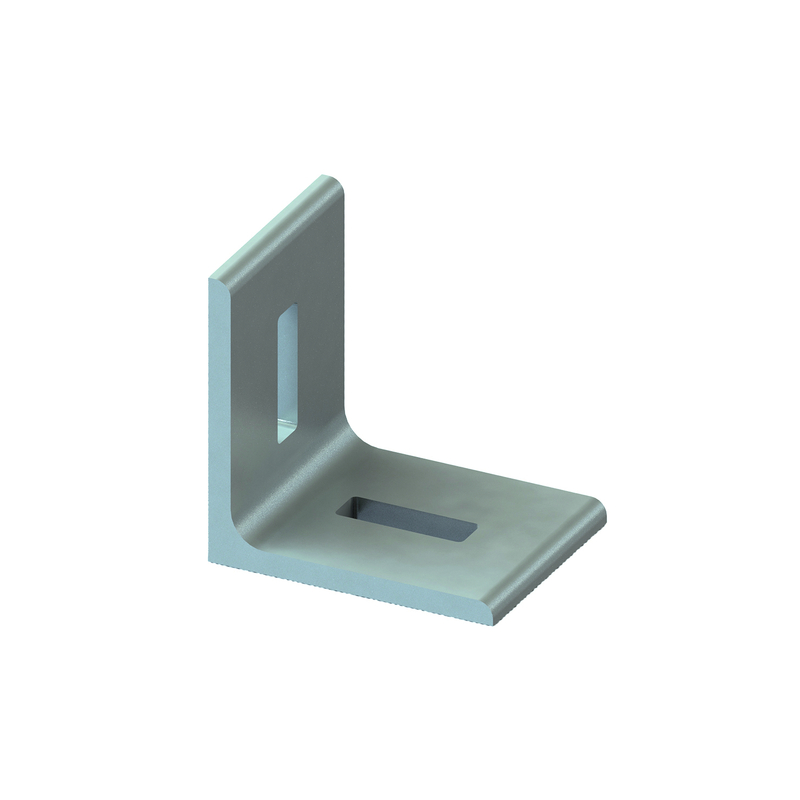

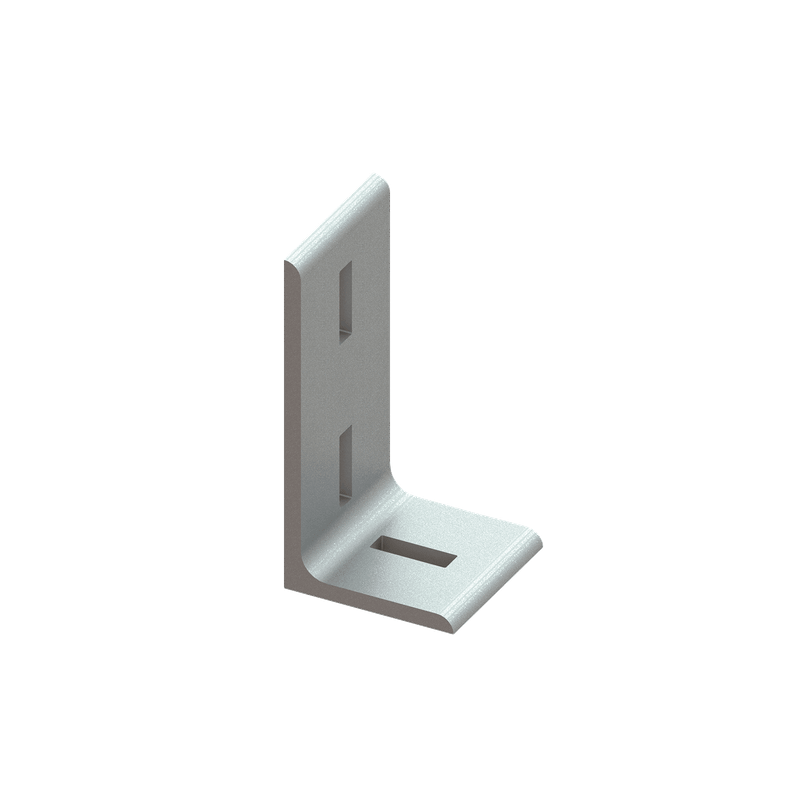

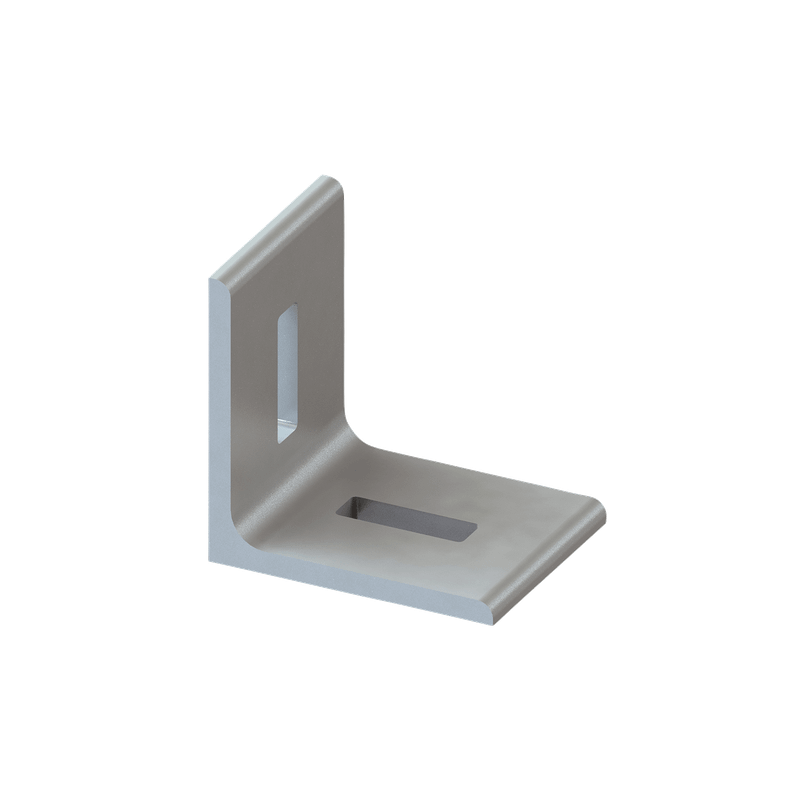

A 90-degree connector designed for Maxx profile systems, providing extra stability with its L-steel construction.
Steel S235JR
| Part No. | Model | Type | L (mm) | B (mm) | H (mm) | s (mm) | d1 (mm) | k (mm) | Fa,x (N) | Fa,z2 (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DMC6681010 | 2 holes | IP80 | 100 | 80 | 100 | 8.0 | 45x14 | - | 5,000* | - | - |
| DMC6681019 | 3 holes | IP80 | 200 | 80 | 100 | 10.0 | 45x14 | 100 | 5,000* | 8,250** | - |
| DMC6681020 | 3 holes | IP100 | 200 | 100 | 100 | 10.0 | 45x14 | 100 | 5,000* | 8,250** | - |
| DMC6681021 | 3 holes | IP120 | 200 | 120 | 100 | 10.0 | 45x14 | 100 | 5,000* | 8,250** | - |
This heavy-duty connector is designed to create rigid 90-degree junctions within Maxx profile systems, providing the structural foundation for heavy-duty framing.
The L-steel construction delivers stability, efficient load transfer to vertical supports, and easier leveling and alignment of equipment, pipes, and ducts.
It is manufactured from high-grade Steel S235JR, ensuring the high tensile strength required for industrial-scale support frameworks.
Yes, the connector is hot dip galvanized, providing a thick protective zinc coating that meets the demands of industrial construction and outdoor exposure.
It is used in systems where loads require support from two or more vertical channels.
The connector is supplied in boxed packaging to facilitate efficient handling, storage, and transportation.
Yes, the Maxx Rail system and its accessories are designed for heavy-duty applications, making the connector suitable for use in heavy mechanical equipment stands.
As part of the system, we recommend using Maxx Throughbolts and Maxx Hammerfix fasteners.
Yes, Hira Walraven provides BIM objects for the Maxx range. We can share material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
The Maxx system features a closed box profile for superior strength and multi-directional load resistance, compared to standard open-profile strut systems.
