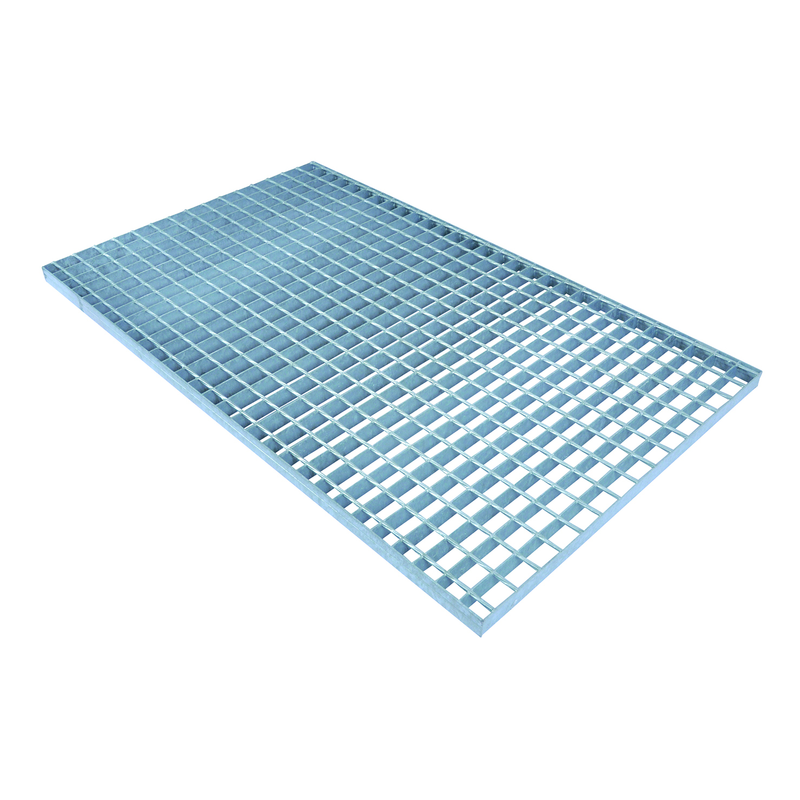

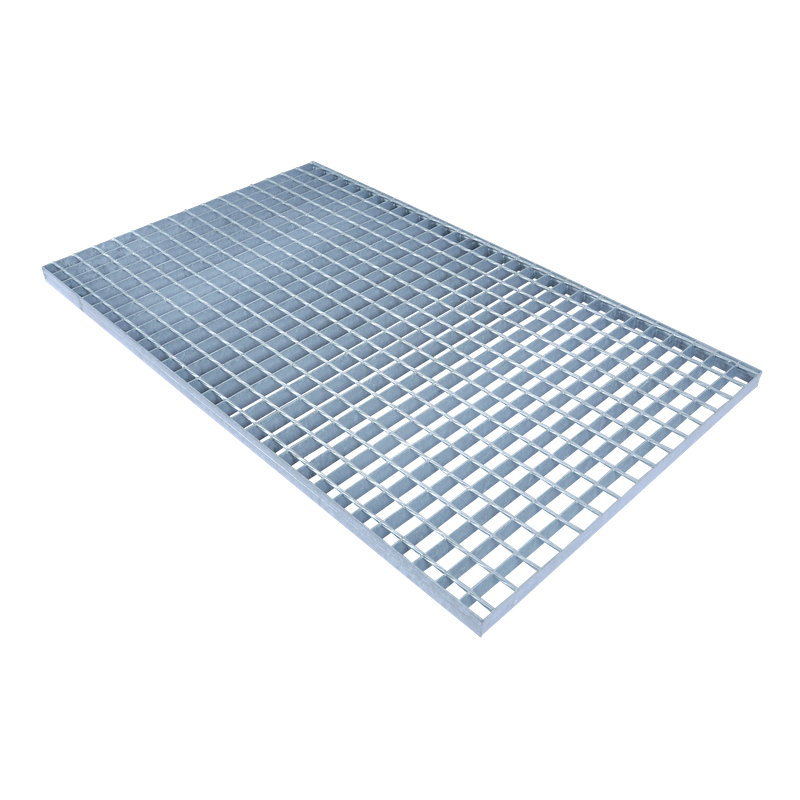

The Yeti® Service Deck Grid offers a complete range of gratings and stair treads to build service walkways. It can be used in combination with BIS Yeti® and BIS RapidStrut® a complete system for outside use.
Steel
| Part No. | Model | L (mm) | B (mm) | Pack 1 |
|---|---|---|---|---|
| DMC67696100 | Step TSP 3-30 | 600 | 1,000 | 1 |
| DMC67698100 | Step TSP 3-30 | 800 | 1,000 | 1 |
| DMC67691100 | Step TSP 3-30 | 1,000 | 1,000 | 1 |
| DMC67691120 | Step TSP 3-30 | 1,000 | 1,200 | 1 |
The Yeti® Service Deck Grid provides a complete range of gratings and stair treads specifically designed to construct secure, elevated service walkways on rooftops and industrial sites.
Yes, it is engineered to work in combination with BIS Yeti® feet and BIS RapidStrut® rails, creating a fully integrated, modular system for outdoor rooftop access.
To ensure long-term resistance against environmental exposure, the grid is hot-dip galvanized as per ASTM A123/A 123M Standards, making it ideal for harsh outdoor use.
Absolutely. We offer engineered customized solutions provided as a complete set on request, tailored to meet the specific layout and load requirements of your project.
It is primarily used for rooftop walkways, service walkways, and stair treads, allowing maintenance teams to safely navigate around HVAC units and piping.
The entire system is manufactured from high-grade steel, providing the structural rigidity and weight-bearing capacity necessary for industrial walkways.
Yes, by utilizing the stair treads within the range, you can construct safe transitions between different roof levels or over large pipe runs and ductwork.
When used with the non-penetrative BIS Yeti® support feet, the grid system distributes weight evenly and avoids any drilling into the roof surface.
Yes, Hira Walraven provides BIM objects for the all product range. We can share per material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files
We provide on-site technical assistance to help verify the layout and ensure the fastening sets are correctly applied for maximum stability and safety.
