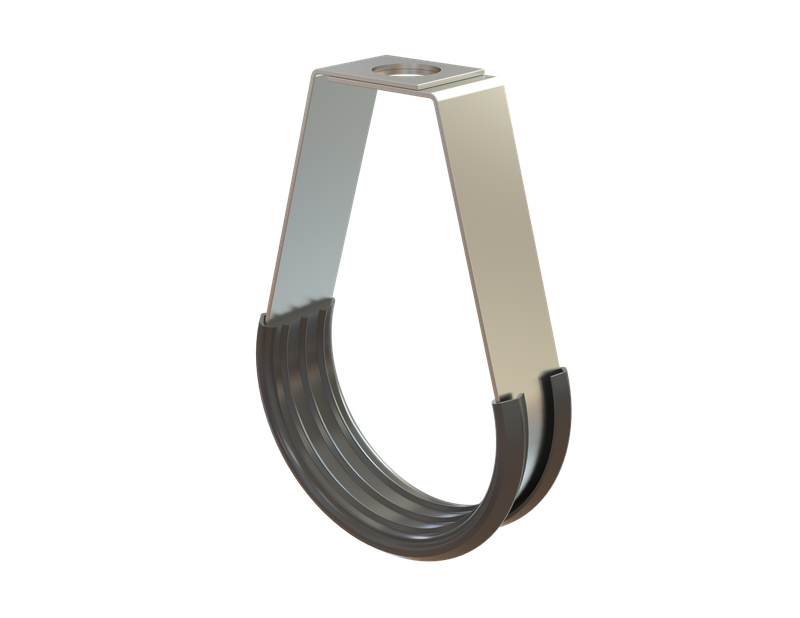

The EPDM Lined Standard Sprinkler Clamp is designed for different MEP installations and is suitable for carrying high loads. It features a noise insulating EPDM lining.
Steel
| Part No. | D (mm) | D (") | G (mm) | H (m) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|
| DMC927028 | 28 | 3/4" | M10 | 61 | 2,500 | 400 |
| DMC927035 | 35 | 1" | M10 | 68 | 2,500 | 400 |
| DMC927040 | 42 | 1 1/4" | M10 | 75 | 2,500 | 300 |
| DMC927048 | 48 | 1 1/2" | M10 | 81 | 2,500 | 200 |
| DMC927060 | 60 | 2" | M10 | 100 | 2,500 | 150 |
| DMC927075 | 73 | 2 1/2" | M10 | 120 | 2,500 | 80 |
| DMC927090 | 89 | 3" | M10 | 135 | 3,000 | 80 |
| DMC927100 | 105 | 3 1/2" | M10 | 150 | 3,000 | 60 |
| DMC927115 | 115 | 4" | M10 | 165 | 3,000 | 60 |
| DMC927140 | 140 | 5" | M12 | 195 | 3,000 | 30 |
| DMC927168 | 168 | 6" | M12 | 230 | 4,000 | 15 |
| DMC927219 | 219 | 8" | M12 | 290 | 4,000 | 10 |
