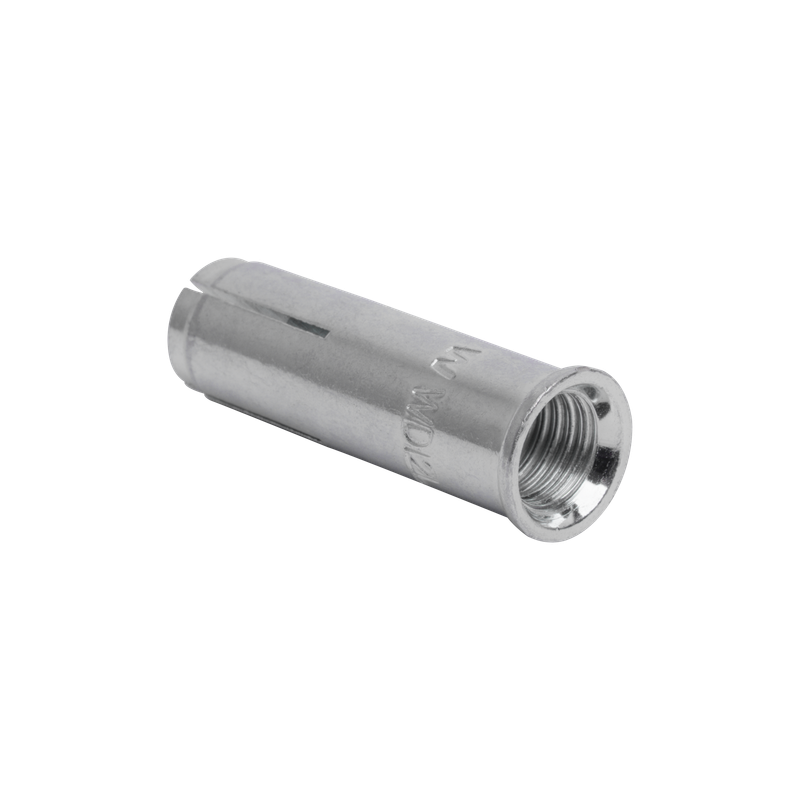

The WDI2-L lipped drop-in anchors are easy to install and versatile deformation-controlled anchors for medium loads. They are approved for multiple use for non-structural applications in concrete.
| Part No. | Description | Anchor Size | dnom (mm) | L (mm) | Ls (mm) | Box qty (pcs) |
|---|---|---|---|---|---|---|
| 6103310625 | WDI2-L M6x25 | M6 | 8.00 | 25.00 | 12 | 100 |
| 6103310830 | WDI2-L M8x30 | M8 | 10.00 | 30.00 | 14 | 100 |
| 6103311040 | WDI2-L M10x40 | M10 | 12.00 | 40.00 | 19 | 50 |
| 6103311250 | WDI2-L M12x50 | M12 | 15.00 | 50.00 | 23 | 50 |
| 6103311665 | WDI2-L M16x65 | M16 | 20.00 | 65.00 | 30 | 25 |
