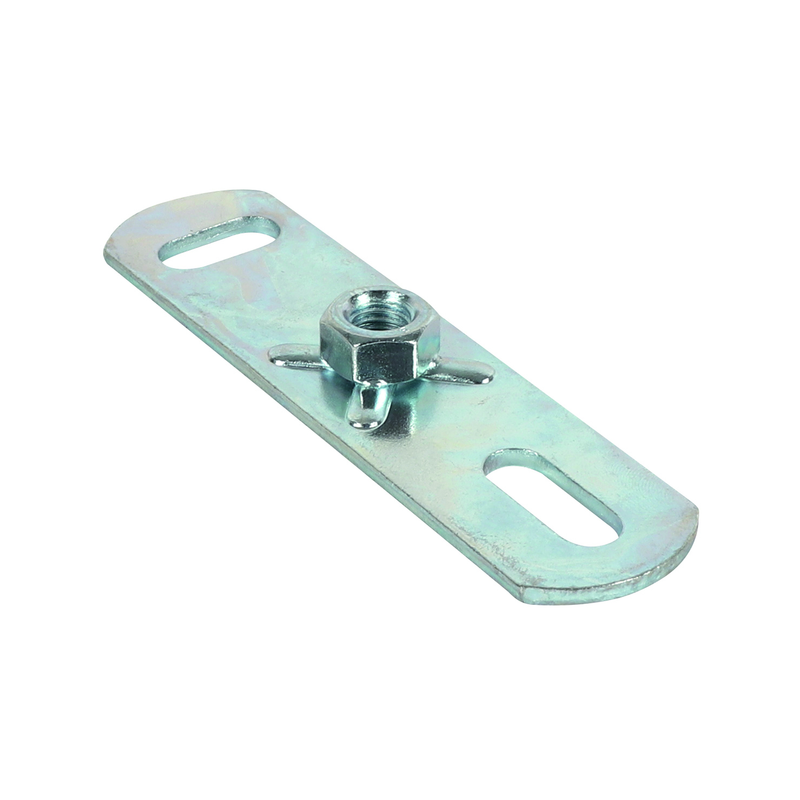

Wall plates designed to simplify fixing with a resistance welded connection nut.
Steel
| Part No. | Type | G | H (mm) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|
| 6703006 | 670 | M6 | 6 | 2,500 | 50 |
| 6703008 | 670 | M8 | 8 | 2,500 | 50 |
| 6703009 | 670 | M8/10 | 18 | 2,500 | 50 |
| 6703010 | 670 | M10 | 10 | 2,500 | 50 |
| 6703012 | 670 | M12 | 12 | 2,500 | 50 |
| 6703016 | 670 | M16 | 13 | 2,500 | 50 |
| 6703021 | 670 | G1/2" | 15 | 2,500 | 50 |
| 6713008 | 671 | 8 | 8 | 3,800 | 40 |
| 6713010 | 671 | 10 | 10 | 3,800 | 40 |
| 6713012 | 671 | 12 | 10 | 3,800 | 40 |
| 6713016 | 671 | 16 | 13 | 3,800 | 50 |
| 6713021 | 671 | G1/2" | 15 | 3,800 | 50 |
| 6719012 | 675 | M12 | 14 | 6,000 | 50 |
| 6719016 | 675 | M16 | 17 | 6,000 | 50 |
| 6719021 | 675 | G1/2" | 19 | 6,000 | 50 |
| 6719027 | 675 | G3/4" | 22 | 6,000 | 50 |
| 6719033 | 675 | G1" | 24 | 6,000 | 50 |
