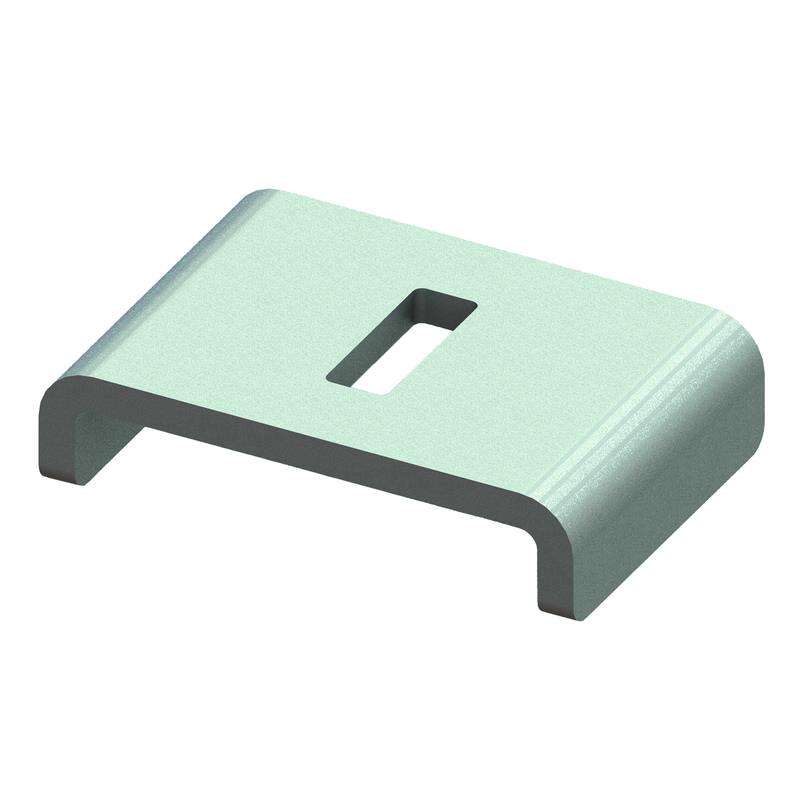

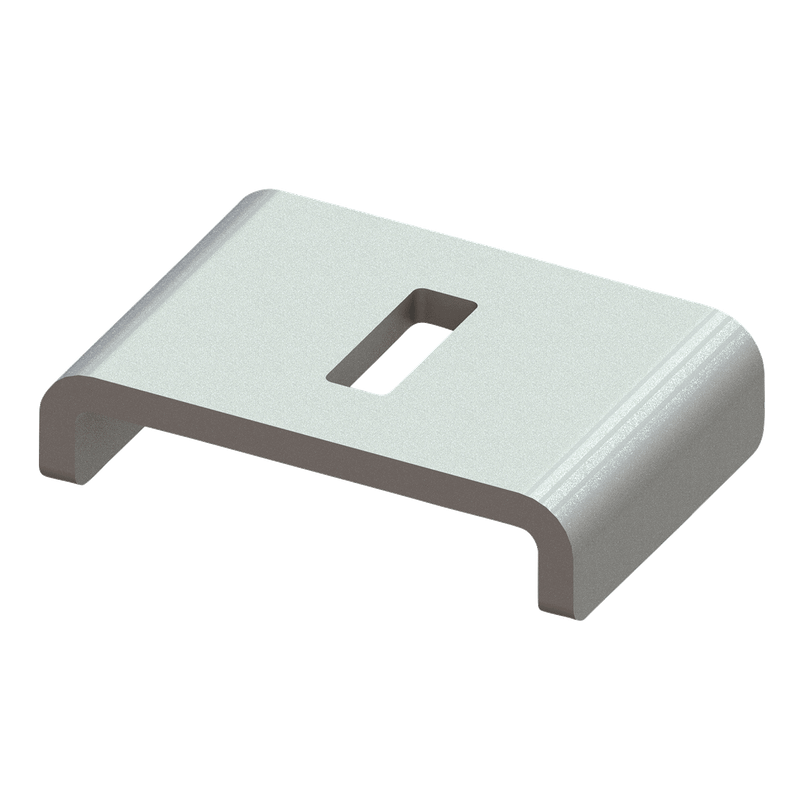

The Maxx U-Shape Bracket is designed for extra stability when tightening directly onto Maxx profiles and is advised to use when hanging profiles from the ceiling.
Steel S235JR
| Part No. | Type | L (mm) | B (mm) | H (mm) | s (mm) | d1 (mm) | Pack 1 |
|---|---|---|---|---|---|---|---|
| DMC6589108 | IP80 | 94 | 80 | 26 | 6 | 40x14 | - |
| DMC6589112 | IP100/IP120 | 118 | 80 | 26 | 8 | 40x14 | - |
Maxx U-shaped brackets are used to distribute point loads across the profile surface, preventing deformation when fasteners are tightened directly onto the sides of Maxx profiles.
When hanging profiles from the ceiling, the U-shape bracket acts as a "sleeve" that reinforces the profile's walls, ensuring the structural integrity of the suspension point under heavy loads.
It is specifically designed to distribute tightening force more evenly across the profile surface when using the Maxx Bolt Set (hexagon head bolt, washer, and serrated flange nut).
It is manufactured from high-grade Steel S235JR, providing the mechanical strength and durability required for heavy-duty industrial framing and support.
Yes, the bracket is hot dip galvanized, offering a thick, metallurgical zinc coating that provides superior long-term protection against corrosion in harsh environments.
Yes. By wrapping around the profile, the bracket prevents the top walls from bowing inward when high torque is applied to the connection bolts, maintaining the rail's shape and safety.
It is a critical component for hanging profiles from the ceiling in large-scale pipe galleries and for securely connecting Maxx profiles in complex structural grids.
The U-shape ensures that the connection remains rigid and square, significantly reducing the risk of slip or structural failure at the primary mounting points of a heavy-duty frame.
Yes, Hira Walraven provides BIM objects for the Maxx range. We can share material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
Maxx profiles have U-shaped brackets compatible with various profile sizes.
