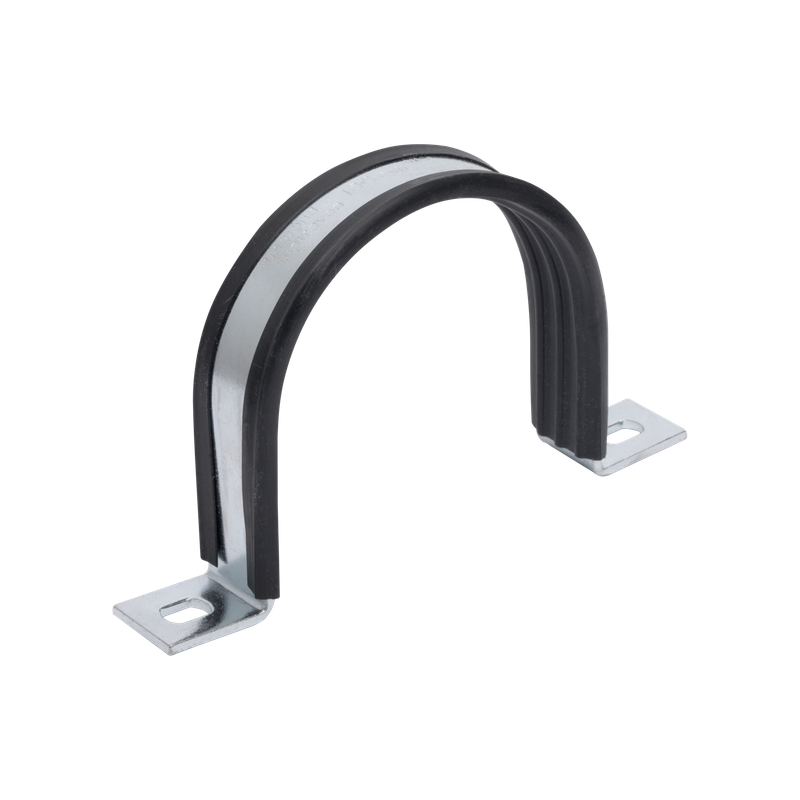

The EPDM Lined U-Strap Clamp is designed for mounting plain or insulated pipes, featuring a noise insulating EPDM lining and a temperature resistance from -20 °C to +110 °C.

CONTACT SALES

Features

For mounting plain or insulated pipes
Slotted holes on both sides allow convenient installation
Material:
Steel
Zinc plated as per ASTM B 633 and ASTM A 653
Noise insulating lining, EPDM, black
Designed to meet MSS Standard SP-58, type 26 and and SP-69
Noise reduction up to 18dB (A)
Temperature resistance from -20 °C temp to +110 °C

Specifications and Packaging

Part No.	D (mm)	D (")	Bolt	B (mm)	k (mm)	Fa,z (N)	Pack 1
DMC188022	22	½"	M8	76	51	5,500	600
DMC188028	28	¾"	M8	82	57	5,500	500
DMC188035	35	1"	M8	89	64	5,500	400
DMC188040	42	1¼"	M8	96	71	5,500	300
DMC188048	48	1½"	M8	102	77	5,500	250
DMC188054	54	-	M8	108	83	5,500	200
DMC188060	60	2"	M8	114	89	5,500	200
DMC188067	67	-	M8	121	96	5,500	200
DMC188075	75	2½"	M8	145	113	6,500	150
DMC188082	82	-	M8	152	120	6,500	150
DMC188090	90	3"	M8	160	128	6,500	150
DMC188100	100	3½"	M8	170	138	6,500	150
DMC188108	108	-	M8	178	146	6,500	150
DMC188115	115	4"	M10	185	153	6,500	125
DMC188126	126	-	M10	196	164	6,500	125
DMC188140	140	5"	M10	210	178	6,500	100
DMC188148	148	-	M10	218	186	6,500	100
DMC188155	155	-	M10	225	193	6,500	100
DMC188168	168	6"	M10	237	205	6,500	100
DMC188179	179	-	M10	249	217	6,500	100
DMC188190	190	-	M10	260	228	9,000	50
DMC188205	205	-	M10	275	243	9,000	50
DMC188219	219	8	M10	289	257	9,000	50
DMC188230	230	-	M10	300	268	9,000	50
DMC188241	241	-	M12	332	291	13,500	35
DMC188263	263	-	M12	354	313	13,500	35
DMC188273	273	10"	M18	364	323	13,500	35
DMC188295	295	-	M18	386	345	13,500	35
DMC188323	323	12"	M18	414	373	13,500	35
DMC188356	356	14"	M18	447	406	19,000	10
DMC188374	374	-	M18	465	424	19,000	10
DMC188406	406	16"	M18	497	456	19,000	10
DMC188432	432	-	M18	523	482	19,000	10
DMC188456	456	18"	M18	547	506	19,000	10
DMC188482	482	-	M18	573	532	19,000	10
DMC188508	508	20"	M18	599	558	19,000	10
DMC188533	533	-	M18	624	583	19,000	10
DMC188559	559	-	M18	650	609	19,000	10
DMC188583	583	-	M18	674	633	19,000	10
DMC188610	610	24"	M18	701	660	19,000	10
DMC188658	658	-	M18	766	718	24,000	5
DMC188690	690	-	M18	798	750	24,000	5
DMC188760	760	-	M18	868	820	24,000	5
DMC188863	863	-	M18	971	923	24,000	4
DMC188918	918	-	M18	1026	978	24,000	-

Applications

Piping systems
HVAC
Plumbing
