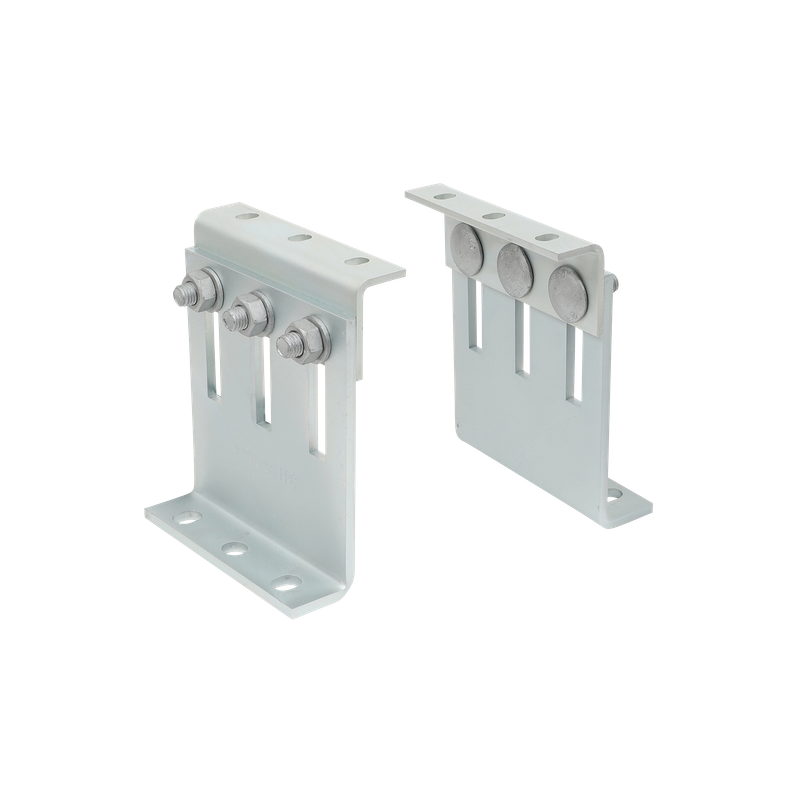

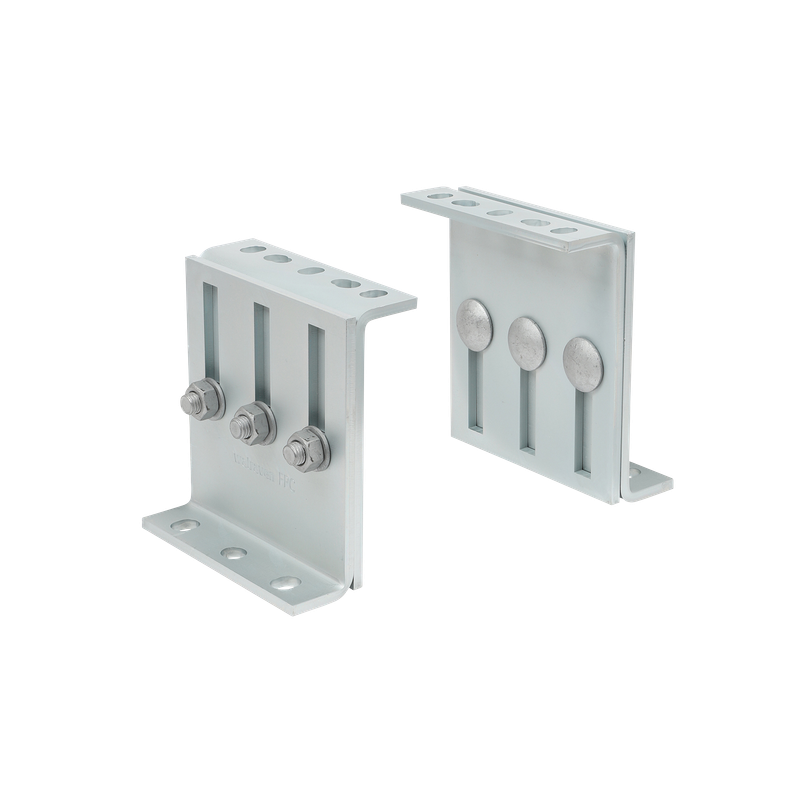

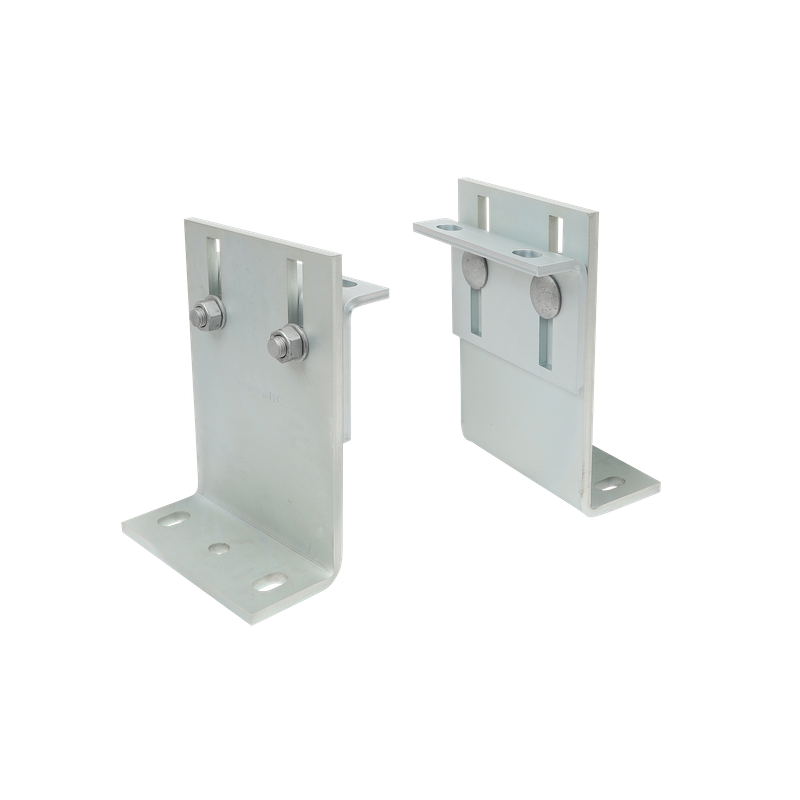

The Fixpoint Console is a flexible console module designed for high forces, suitable for use as a pipe connection point with heavy-duty clamps. It features adjustable height and inclination, offering high corrosion protection.
Product is part of the BIS Ultra Protect® 1000 system
Suitable for in-and outdoor applications
Stands min. 1,000 hours salt spray test (max 50/0 red rust) according to ISO 9227
Steel 1.0332
ISO 9227
BIS Ultra Protect® 1000 system
| Part No. | Model | HD500 max. | No of Clamps | L (mm) | B (mm) | H (mm) | h (mm) | d1 (mm) | d2 (mm) | d3 (mm) | k (mm) | k1 (mm) | Fa,z (N) | Fa,y (N) | Fa,x (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6698206 | FPC Console Medium | 148 - 277 | 3 | 80 | 136 | 153 - 268 | 150 | 15 x 11 | Ø 13.0 | - | 100 | 90 | 14,300 | 11,500 | 3,200 | 1 |
| 6698208 | FPC Console Heavy | 229 - 564 | 2 | 137 | 180 | 226 - 333 | 260 | 27 x 17 | 30 x 17 | Ø 17.0 | 110 | 130 | 10,000 | 9,300 | 3,700 | 1 |
Fixpoints are used as anchor points to resist high loads caused by pipe thermal expansion.
It is ideal as a fix point when used in conjunction with 2 or 3 heavy-duty clamps, specifically types HD500 or HD1501.
To ensure structural integrity and safety, the console fixing screws must be tightened to a specific torque of 75Nm.
The module features infinitely adjustable height and inclination, allowing for precise pipe positioning and alignment even on uneven surfaces.
For maximum strenght, it can be fixed directly on the building structure or used in combination with rail systems like RapidStrut or even Maxx rail Support system.
Yes, it is part of the BIS UltraProtect® 1000 system, which tested and can stands a minimum of 1,000 hours in salt spray tests per ISO 9227.
Absolutely. Due to its superior BUP1000 surface protection, it is suitable for both indoor and outdoor applications.
The console is manufactured from high-grade Steel 1.0332, providing the necessary strength for high-force piping connections.
Yes, because the force capacity depends on the application, Hira Walraven's technical service provides detailed design and validation for your specific project needs.
Yes, Hira Walraven provides BIM objects for the all product range. We can share per material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
