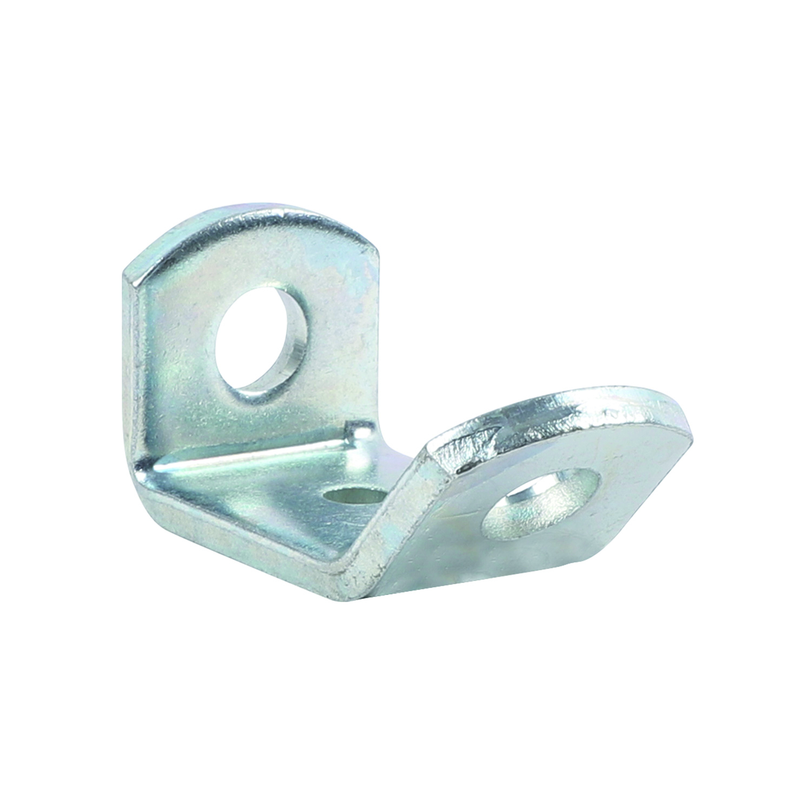

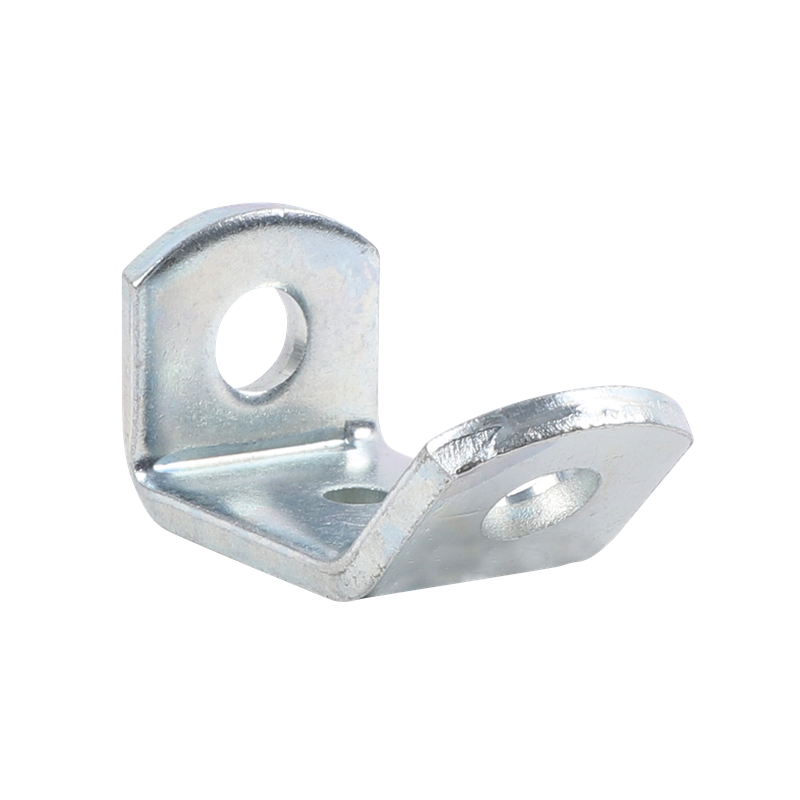

The Threaded Rod Support is designed for strengthening rail constructions with the aid of threaded rods M10-M12 and is also suitable for bracing cantilever arms.
Steel 1.0332
Zinc plated
| Part No. | L1 (mm) | L2 (mm) | L3 (mm) | B (mm) | s (mm) | d1 (mm) | d2 (mm) | a ( ° ) | a2 ( ° ) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DMC6698015 | 31 | 31 | 42 | 35 | 6.0 | Ø 13.0 | Ø 13.0 | 90 | 45 | 3,000 | 25 |
This component is specifically designed to reinforce rail constructions by providing a secure connection point for threaded rods at a 45-degree angle.
The support is engineered to be used with M10 and M12 threaded rods.
Yes, it is highly effective for bracing cantilever arms, providing additional structural stability for extended lengths or heavy loads. However, it is recommended to install it above the cantilever arm to utilize the rod's tensile strength.
The Threaded Rod Support is manufactured from high-grade Steel 1.0332, ensuring high structural integrity and reliable load-bearing performance.
The support is zinc plated, providing a durable finish that protects the steel against oxidation in indoor MEP environments.
It is primarily utilized in rail construction and for bracing cantilever arms within HVAC, plumbing, and electrical containment systems.
Yes, Hira Walraven provides BIM objects for the all product range. We can share per material-based models that engineers and draftsmen can use to build their own assemblies, or fully assembled models that can be directly placed into project files.
Technical properties are established using standardized testing methods, and designs are validated through CAD and advanced analysis software to ensure system reliability.
Hira Walraven extends support to the site, offering technical advice on the proper application of bracing and strengthening components.
