Name: WT7 Throughbolt Anchors
Brand: Diamond Walraven
SKU: diamond-walraven-wt7-throughbolt-anchors

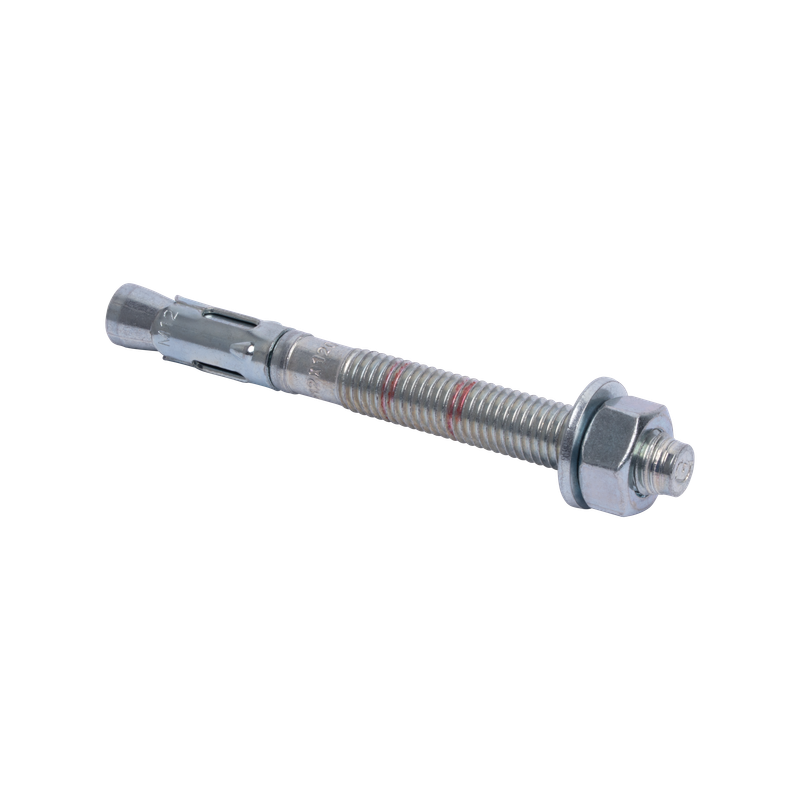

The WT7 is a high-performance zinc plated throughbolt anchor with two installation depths for use in non-cracked concrete in indoor environments.

ETA according to EAD 330747-00-0601 for use in non-cracked concrete (option 7)
Simple and quick installation procedure
For medium to heavy loads
Can be installed as pre-fixing (before application of a fixing plate) or as through-fixing (through hole of the fixing plate)
Two anchoring depths provide maximum installation and design flexibility

Specifications and Packaging

Part No.	Description	Anchor Size	L (mm)	Box qty (pcs)
608106070	WT7 6x70	6	70	200
608106080	WT7 6x80	6	80	200
608106090	WT7 6x90	6	90	200
608108075	WT7 8x75	8	75	100
608108090	WT7 8x90	8	90	100
608108100	WT7 8x100	8	100	100
608108115	WT7 8x115	8	115	100
608110080	WT7 10x80	10	80	100
608110090	WT7 10x90	10	90	100
608110100	WT7 10x100	10	100	100
608110115	WT7 10x115	10	115	50
608110120	WT7 10x120	10	120	50
608110140	WT7 10x140	10	140	50
608112090	WT7 12x90	12	90	50
608112100	WT7 12x100	12	100	50
608112110	WT7 12x110	12	110	50
608112120	WT7 12x120	12	120	50
608112130	WT7 12x130	12	130	50
608112140	WT7 12x140	12	140	50
608112150	WT7 12x150	12	150	50
608112160	WT7 12x160	12	160	50
608112180	WT7 12x180	12	180	50
608116125	WT7 16x125	16	125	25
608116145	WT7 16x145	16	145	25
608116170	WT7 16x170	16	170	25
608116220	WT7 16x220	16	220	25
608120170	WT7 20x170	20	170	25
608120220	WT7 20x220	20	220	25
608120270	WT7 20x270	20	270	25

Applications
