Name: WT1 SH Throughbolt Anchors
Brand: Diamond Walraven
SKU: diamond-walraven-wt1-sh-throughbolt-anchors

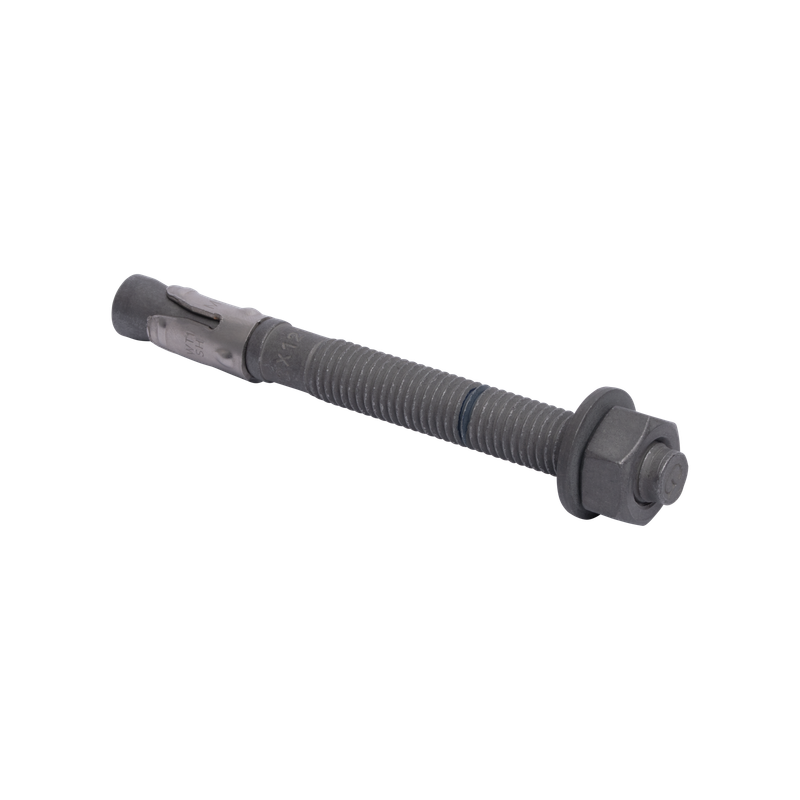

The WT1 SH is the ultimate-performance throughbolt anchor with sherardized coating for use in cracked and non-cracked concrete. It is designed for medium to heavy loads.

CONTACT SALES

Features

ETA according to EAD 330747-00-0601 for use in cracked and non-cracked concrete (option 1)
Simple and quick installation procedure.
For medium to heavy loads.
Can be installed as pre-fixing (before application of a fixing plate) or as through-fixing (through outside of the fixing plate).
Fire resistance class R30-R120 for design of anchorages under exposure to fire.
Compliance with VdS CE 4001:2014-04 (05) and VdS, VdS CE 4001:2018-01 (06) for applications with sprinkler systems in concrete elements.

Specifications and Packaging

Part No.	Description	Anchor Size	L (mm)	Box qty (pcs)
608508075	WT1 SH M8x75	M8	75	100
608508095	WT1 SH M8x95	M8	95	100
608508115	WT1 SH M8x115	M8	115	100
608510090	WT1 SH M10x90	M10	90	100
608510105	WT1 SH M10x105	M10	105	50
608510115	WT1 SH M10x115	M10	115	50
608510135	WT1 SH M10x135	M10	135	50
608512110	WT1 SH M12x110	M12	110	50
608512130	WT1 SH M12x130	M12	130	50
608512150	WT1 SH M12x150	M12	150	50
608512180	WT1 SH M12x180	M12	180	50
608516125	WT1 SH M16x125	M16	125	25
608516145	WT1 SH M16x145	M16	145	25
608516175	WT1 SH M16x175	M16	175	25
608516220	WT1 SH M16x220	M16	220	25
608520170	WT1 SH M20x170	M20	170	20
608520200	WT1 SH M20x200	M20	200	20

Applications

Concrete anchoring
Sprinkler systems
Heavy duty fastening
