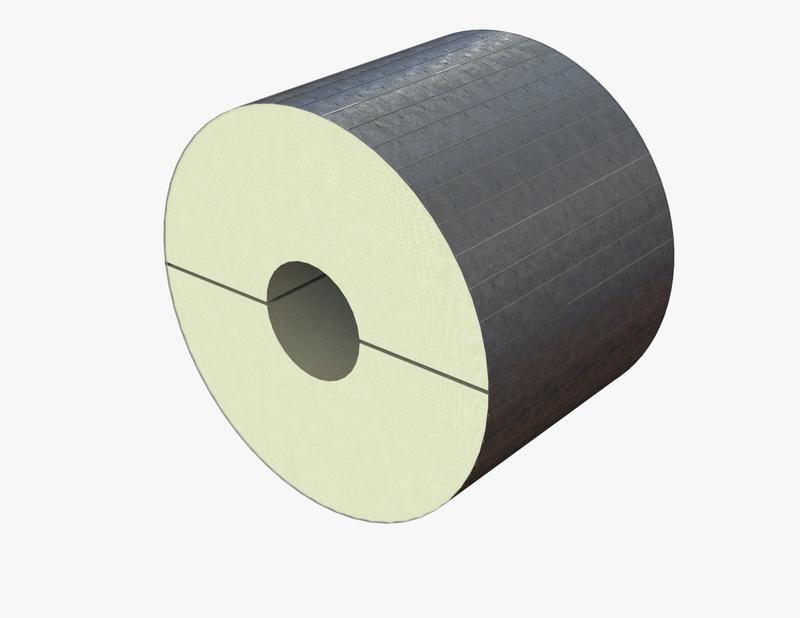

Water repellent calcium silicate pipe insulation for use in various piping applications, offering thermal insulation and protection against moisture.
upto 650°C
0.052W/mK
| Pipe Size | DN | D (mm) | B Stand-ard (mm) | T Insulation thickness (mm) 25 | T Insulation thickness (mm) 32 | T Insulation thickness (mm) 38 | T Insulation thickness (mm) 50 | T Insulation thickness (mm) 75 | T Insulation thickness (mm) 100 |
|---|---|---|---|---|---|---|---|---|---|
| 3/4" | 20 | 26.7 | 50 | DMCCS3425 | DMCCS3432 | DMCCS3438 | DMCCS3450 | DMCCS3475 | DMCCS34100 |
| 1" | 25 | 33.4 | 50 | DMCCS125 | DMCCS132 | DMCCS138 | DMCCS150 | DMCCS175 | DMCCS1100 |
| 1 1/4 " | 32 | 42.1 | 50 | DMCCS11425 | DMCCS11432 | DMCCS11438 | DMCCS11450 | DMCCS11475 | DMCCS114100 |
| 1 1/2" | 40 | 48.2 | 50 | DMCCS11225 | DMCCS11232 | DMCCS11238 | DMCCS11250 | DMCCS11275 | DMCCS112100 |
| 2" | 50 | 60.3 | 50 | DMCCS225 | DMCCS232 | DMCCS238 | DMCCS250 | DMCCS275 | DMCCS2100 |
| 2 1/2" | 65 | 73.0 | 50 | DMCCS21225 | DMCCS21232 | DMCCS21238 | DMCCS21250 | DMCCS21275 | DMCCS212100 |
| 3" | 80 | 88.9 | 50 | DMCCS325 | DMCCS332 | DMCCS338 | DMCCS350 | DMCCS375 | DMCCS3100 |
| 3 1/2" | 90 | 101.6 | 50 | DMCCS31225 | DMCCS31232 | DMCCS31238 | DMCCS31250 | DMCCS31275 | DMCCS312100 |
| 4" | 100 | 114.3 | 50 | DMCCS425 | DMCCS432 | DMCCS438 | DMCCS450 | DMCCS475 | DMCCS4100 |
| 5" | 125 | 141.3 | 100 | DMCCS525 | DMCCS532 | DMCCS538 | DMCCS550 | DMCCS575 | DMCCS5100 |
| 6" | 150 | 168.3 | 100 | DMCCS625 | DMCCS632 | DMCCS638 | DMCCS650 | DMCCS675 | DMCCS6100 |
| 8" | 200* | 219.1 | 100 | DMCCS825 | DMCCS832 | DMCCS838 | DMCCS850 | DMCCS875 | DMCCS8100 |
| 10" | 250* | 273.0 | 150 | DMCCS1025 | DMCCS1032 | DMCCS1038 | DMCCS1050 | DMCCS1075 | DMCCS10100 |
| 12" | 300* | 323.8 | 150 | DMCCS1225 | DMCCS1232 | DMCCS1238 | DMCCS1250 | DMCCS1275 | DMCCS12100 |
| 14" | 350* | 355.6 | 150 | DMCCS1425 | DMCCS1432 | DMCCS1438 | DMCCS1450 | DMCCS1475 | DMCCS14100 |
| 16" | 400 | 406.4 | 350 | DMCCS1625 | DMCCS1632 | DMCCS1638 | DMCCS1650 | DMCCS1675 | DMCCS16100 |
| 18" | 450 | 457.2 | 400 | DMCCS1825 | DMCCS1832 | DMCCS1838 | DMCCS1850 | DMCCS1875 | DMCCS18100 |
