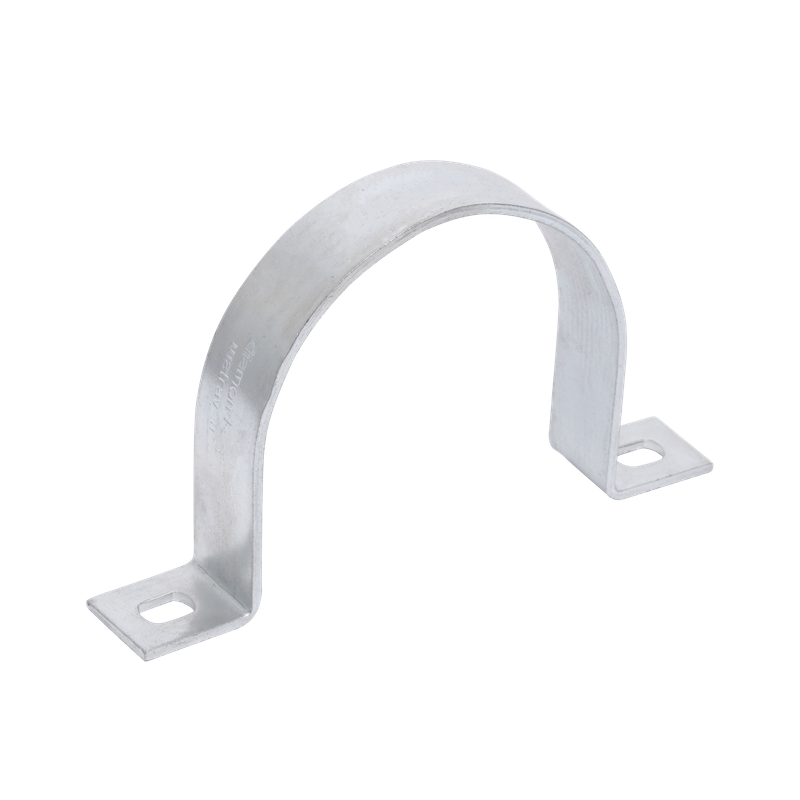

The U-Strap Clamp is designed for mounting plain or insulated pipes. It features slotted holes for convenient installation and can be used with Rubber Support Inserts.
| Part No. | D (mm) | D (") | Bolt | B (mm) | k (mm) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|---|
| DMC155 022 | 22 | 1/2" | M8 | 76 | 51 | 5,500 | 600 |
| DMC155 028 | 28 | 3/4" | M8 | 82 | 57 | 5,500 | 500 |
| DMC155 035 | 35 | 1" | M8 | 89 | 64 | 5,500 | 400 |
| DMC155 040 | 42 | 11/4" | M8 | 96 | 71 | 5,500 | 300 |
| DMC155 048 | 48 | 11/2" | M8 | 102 | 77 | 5,500 | 250 |
| DMC155 054 | 54 | - | M8 | 108 | 83 | 5,500 | 200 |
| DMC155 060 | 60 | 2" | M8 | 114 | 89 | 5,500 | 200 |
| DMC155 067 | 67 | - | M8 | 121 | 96 | 5,500 | 200 |
| DMC155 075 | 75 | 21/2" | M8 | 145 | 113 | 6,500 | 150 |
| DMC155 082 | 82 | - | M8 | 152 | 120 | 6,500 | 150 |
| DMC155 090 | 90 | 3" | M8 | 160 | 128 | 6,500 | 150 |
| DMC155 100 | 100 | 31/2" | M8 | 170 | 138 | 6,500 | 150 |
| DMC155 108 | 108 | - | M8 | 178 | 146 | 6,500 | 150 |
| DMC155 115 | 115 | 4" | M8 | 185 | 153 | 6,500 | 125 |
| DMC155 126 | 126 | - | M10 | 196 | 164 | 6,500 | 125 |
| DMC155 140 | 140 | 5" | M10 | 210 | 178 | 6,500 | 100 |
| DMC155 148 | 148 | - | M10 | 218 | 186 | 6,500 | 100 |
| DMC155 155 | 155 | - | M10 | 225 | 193 | 6,500 | 100 |
| DMC155 168 | 168 | 6" | M10 | 237 | 205 | 6,500 | 100 |
| DMC155 179 | 179 | - | M10 | 249 | 217 | 6,500 | 100 |
| DMC155 190 | 190 | - | M10 | 260 | 228 | 9,000 | 50 |
| DMC155 205 | 205 | - | M10 | 275 | 243 | 9,000 | 50 |
| DMC155 219 | 219 | 8" | M10 | 289 | 257 | 9,000 | 50 |
| DMC155 230 | 230 | - | M10 | 300 | 268 | 9,000 | 50 |
| DMC155 241 | 241 | - | M12 | 332 | 291 | 13,500 | 35 |
| DMC155 263 | 263 | - | M12 | 354 | 313 | 13,500 | 35 |
| DMC155 273 | 273 | 10" | M18 | 364 | 323 | 13,500 | 35 |
| DMC155 295 | 295 | - | M18 | 386 | 345 | 13,500 | 35 |
| DMC155 323 | 323 | 12" | M18 | 414 | 373 | 13,500 | 35 |
| DMC155 356 | 356 | 14" | M18 | 447 | 406 | 19,000 | 10 |
| DMC155 374 | 374 | - | M18 | 465 | 424 | 19,000 | 10 |
| DMC155 406 | 406 | 16" | M18 | 497 | 456 | 19,000 | 10 |
| DMC155 432 | 432 | - | M18 | 523 | 482 | 19,000 | 10 |
| DMC155 456 | 456 | 18" | M18 | 547 | 506 | 19,000 | 10 |
| DMC155 482 | 482 | - | M18 | 573 | 532 | 19,000 | 10 |
| DMC155 508 | 508 | 20" | M18 | 599 | 558 | 19,000 | 10 |
| DMC155 533 | 533 | - | M18 | 624 | 583 | 19,000 | 10 |
| DMC155 559 | 559 | - | M18 | 650 | 609 | 19,000 | 10 |
| DMC155 583 | 583 | - | M18 | 674 | 633 | 19,000 | 10 |
| DMC155 610 | 610 | 24" | M18 | 701 | 660 | 19,000 | 10 |
| DMC155 658 | 658 | - | M18 | 766 | 718 | 24,000 | 5 |
| DMC155 690 | 690 | - | M18 | 798 | 750 | 24,000 | 5 |
| DMC155 760 | 760 | - | M18 | 868 | 820 | 24,000 | 5 |
| DMC155 863 | 863 | - | M18 | 971 | 923 | 24,000 | 4 |
