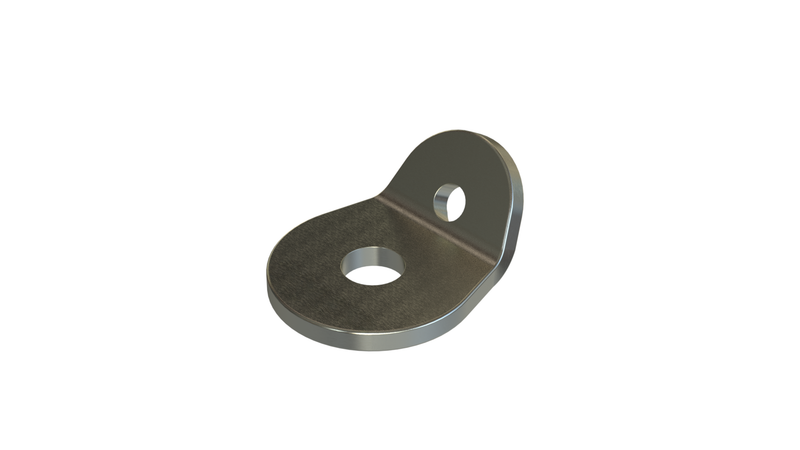

These standard brackets are designed for attaching seismic cable bracing to concrete and steel structural members. They are designed to maintain the rated break strength of cable without the need of a thimble.
Steel
Zinc plated
| Part No. | Wire Diameter (mm) | Load Ratings (N) | Appr. | Factor of Safety |
|---|---|---|---|---|
| DMSBS-03 | upto 3.2 | 4,825 | Non-UL | 2.20 |
| DMSBL-06 | upto 6.0 | 8,659 | Non-UL | 2.20 |
