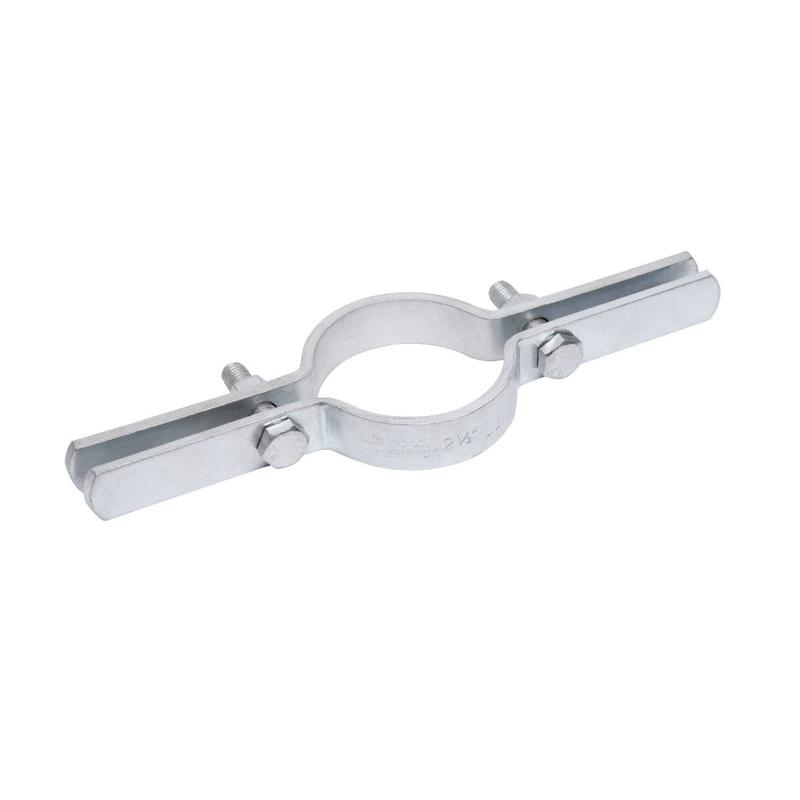

The Riser Clamp is designed to act as a rigid support or guide for vertical pipes and is suitable for use with all types of pipes.
| Part No. | D (mm) | D (") | Bolt | B (mm) | Fa,z (N) | Appr. | Pack 1 |
|---|---|---|---|---|---|---|---|
| DMC711028 | 28 | 3/4" | M10 | 210 | 1,700 | UL | 50 |
| DMC711035 | 35 | 1" | M10 | 230 | 1,700 | UL | 50 |
| DMC711040 | 42 | 1¼" | M10 | 260 | 1,700 | UL | 50 |
| DMC711048 | 48 | 1½" | M10 | 260 | 1,700 | UL | 40 |
| DMC711060 | 60 | 2" | M10 | 260 | 1,700 | UL | 40 |
| DMC711075 | 75 | 2½" | M12 | 290 | 4,000 | UL | 30 |
| DMC711090 | 90 | 3" | M12 | 290 | 4,000 | UL | 25 |
| DMC711100 | 100 | 3½" | M12 | 330 | 4,000 | UL | 25 |
| DMC711115 | 115 | 4" | M12 | 330 | 4,000 | UL | 25 |
| DMC711140 | 140 | 5" | M16 | 350 | 6,000 | UL | 20 |
| DMC711168 | 168 | 6" | M16 | 380 | 6,000 | UL | 15 |
| DMC711219 | 219 | 8" | M16 | 470 | 11,000 | UL | 5 |
| DMC711273 | 273 | 10" | M16 | 520 | 12,000 | - | 4 |
| DMC711323 | 323 | 12" | M20 | 580 | 15,000 | - | 3 |
| DMC711355 | 355 | 14" | M20 | 610 | 15,000 | - | 3 |
| DMC711406 | 406 | 16" | M20 | 660 | 22,000 | - | 2 |
| DMC711457 | 457 | 18" | M20 | 710 | 22,000 | - | 2 |
| DMC711508 | 508 | 20" | M20 | 760 | 22,000 | - | 1 |
| DMC711610 | 610 | 24" | M20 | 880 | 22,000 | - | 1 |
