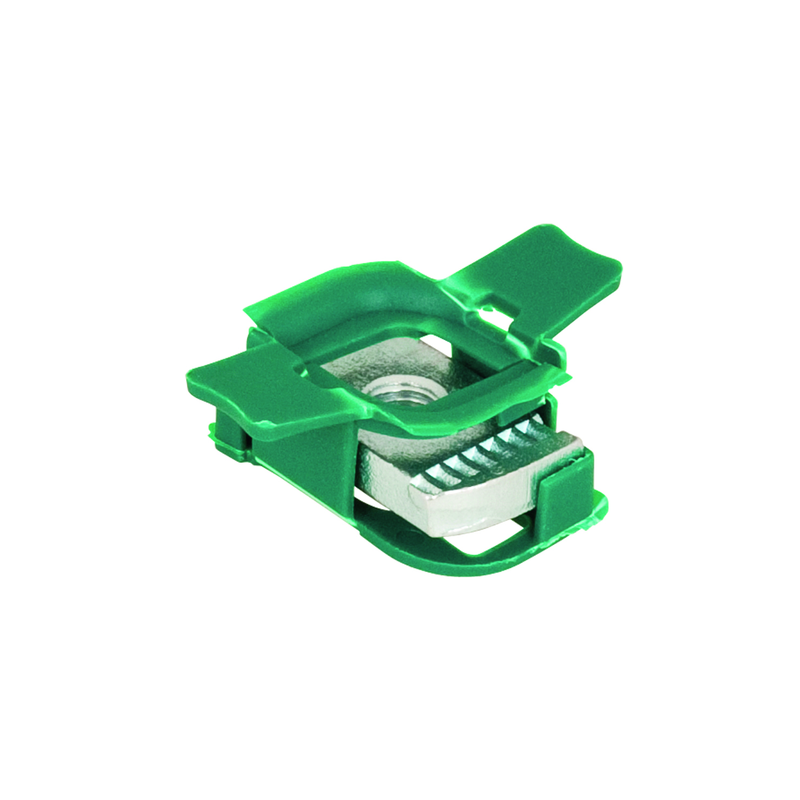

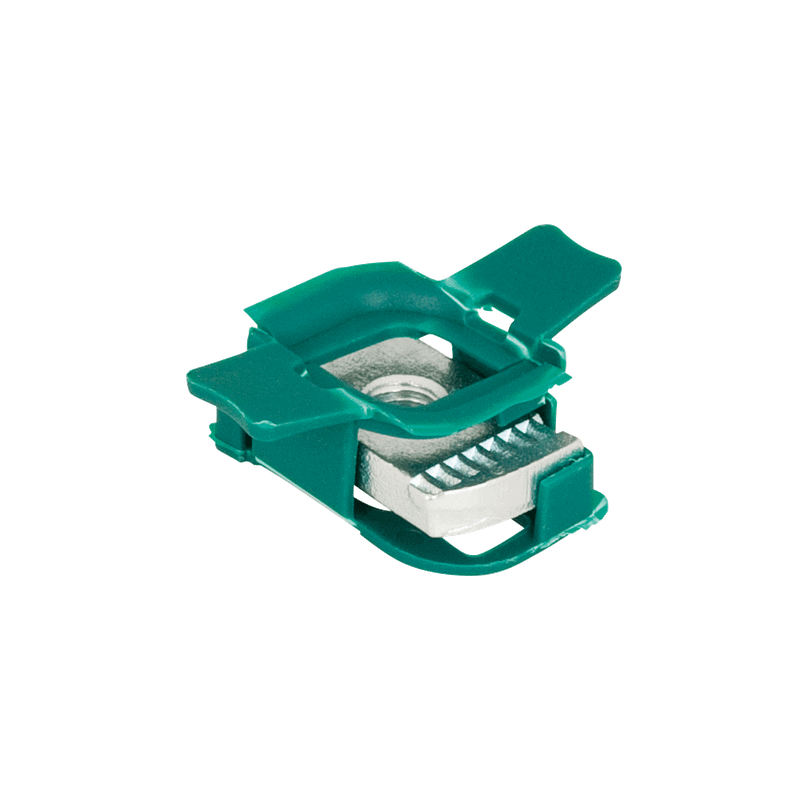

Slide nut with plastic tabs for all types of strut rail, designed for tight fixing of accessories on the rail.
BIS Ultra Protect® 1000
| Part No. | G | s (mm) | For Rail | T (max) (Nm) | Fa,z (N) | Surface Treatment | Pack 1 |
|---|---|---|---|---|---|---|---|
| 651868006 | M6 | 5.0 | Strut | 7.5 | 5,300 | BUP1000 | 100 |
| 651868008 | M8 | 6.0 | Strut | 15.0 | 6,000 | BUP1000 | 100 |
| 651868010 | M10 | 8.0 | Strut | 15.0 | 9,500 | BUP1000 | 100 |
| 651868012 | M12 | 9.0 | Strut | 30.0 | 10,000 | BUP1000 | 100 |
| 100 | |||||||
| 6518606 | M6 | 5.0 | Strut | 7.5 | 5,300 | ZP | 100 |
| 6518608 | M8 | 6.0 | Strut | 15.0 | 6,000 | ZP | 100 |
| 6518610 | M10 | 8.0 | Strut | 15.0 | 9,500 | ZP | 100 |
| 6518612 | M12 | 9.0 | Strut | 30.0 | 10,000 | ZP | 100 |
