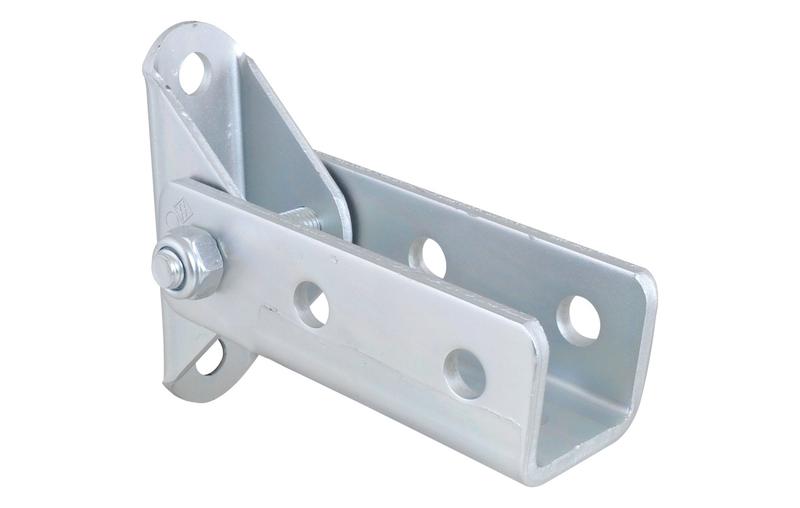

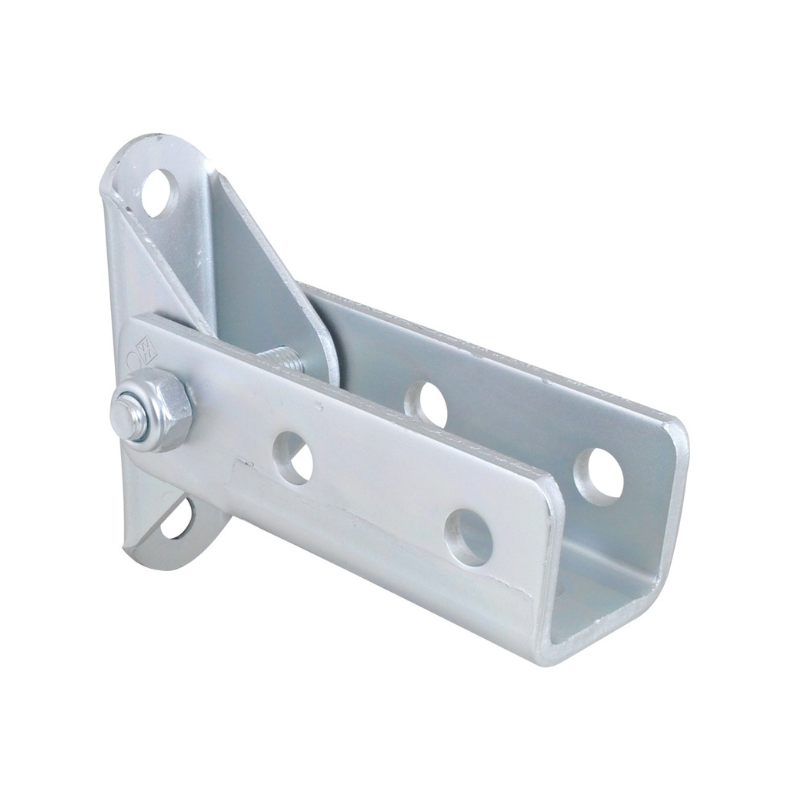

Strut Base Plate (Hinged)

The Strut Base Plate (Hinged) is a wallplate with a hinging U-profile designed for wall fixing of rails and strengthening constructions with Strut 41x41.

CONTACT SALES

Features

Wallplate with hinging U-profile
For wall fixing of rail
Rail can be fixed with slot downwards or sideways
Used to strengthen constructions with Strut 41x41
Material:
Steel 1.0332
Surface protection:
For DMC66588814 Electrogalvanized as per ASTM B633 standards BS 1706 FE/ZN 12
For 66588814 BIS UltraProtect® 1000
Suitable for in-and outdoor applications
Stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

Specifications and Packaging

Part No.	Strut	B (mm)	H (mm)	d1 (mm)	S (mm)	Surface Treatment	Pack 1
66588814	IP21-IP41	41	125	13.0	42	BUP1000	10
DMC66588814	IP41	41	125	13.0	42	zp	10

Applications

Wall fixing
Rail mounting
Strut constructions
