Name: Pipe Roller
Brand: Diamond Walraven
SKU: diamond-walraven-pipe-roller

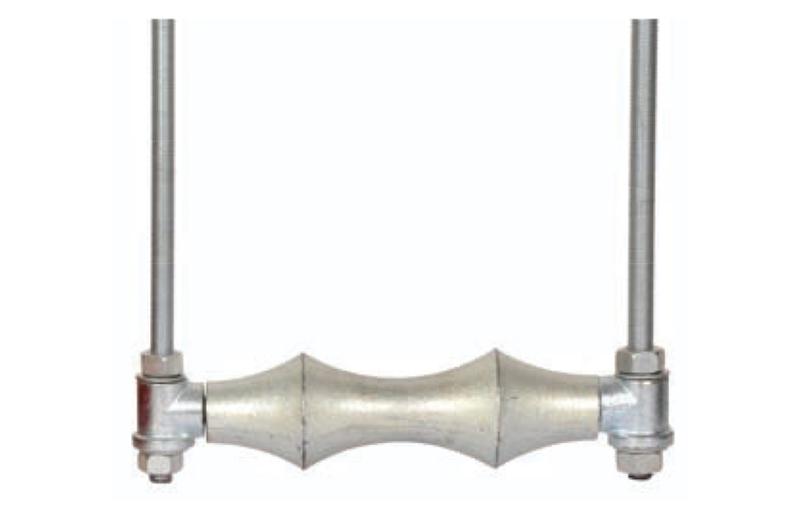

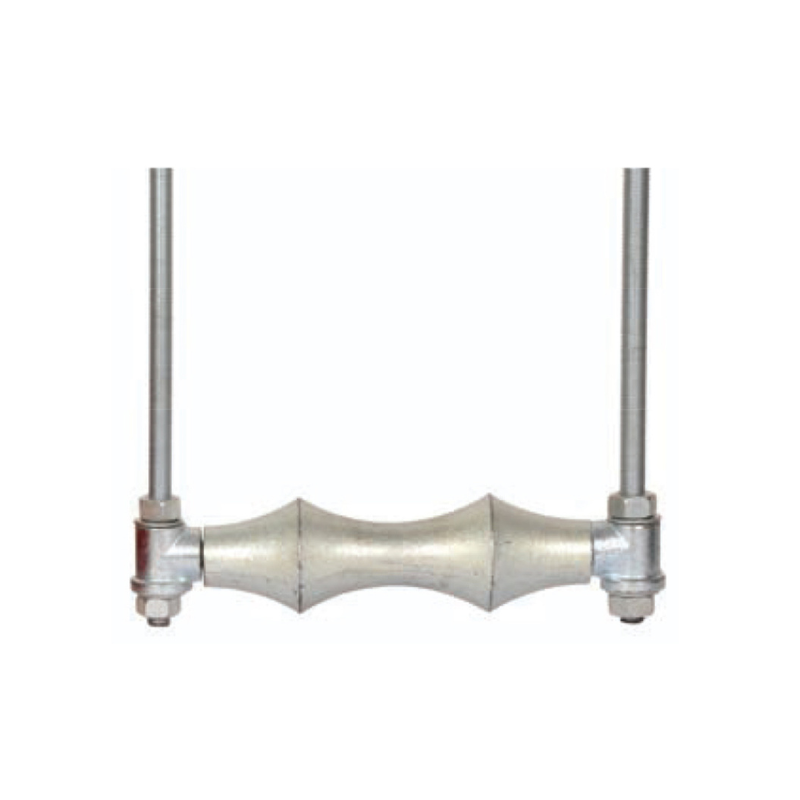

Pipe rollers provide axial movement for pipes, allowing for multiple pipe installations and accommodating expansion and contraction.

For support of pipes to provide axial movement
Multiple pipe installations possible by using two rollers
Versatile design permits axial movement of pipe due to expansion and contraction
Material
Socket:
Steel
Roller:
Cast Iron
Designed to meet MSS Standard SP-58, type 41 and SP-69 insulation protection products such as Insulation
Protection Shields and Pipe Covering Protection Saddles can be used with Pipe Rollers
Surface Protection
Bracket:
Hot dipped galvanized
Roller:
Nickle Plated
Stud and nuts:
Hot Dipped Galvanized

Specifications and Packaging

Part No.	D (")	G	A (mm)	B (mm)	k (mm)	Fa,z (N)	Pack 1
DMC288060	2"	M12	70	13	134	3,500	40
DMC288075	2½"	M12	80	13	145	3,500	40
DMC288090	3"	M12	100	13	165	3,500	30
DMC288100	3½"	M12	105	13	170	3,500	25
DMC288115	4"	M12	115	13	180	5,000	25
DMC288140	5"	M12	147	22	212	5,000	25
DMC288168	6"	M20	175	22	253	12,500	15
DMC288220	8"	M20	227	22	312	12,500	12
DMC288273	10"	M20	285	22	369	12,500	10
DMC288323	12"	M24	332	25.6	415	15,000	6
DMC288355	14"	M24	370	25.6	452	15,000	5
DMC288406	16"	M32	410	32.0	502	35,000	1
DMC288457	18"	M32	469	32.0	562	35,000	1
DMC288508	20"	M36	534	36.0	629	35,000	1
DMC288610	24"	M36	622	36.0	717	50,000	1
