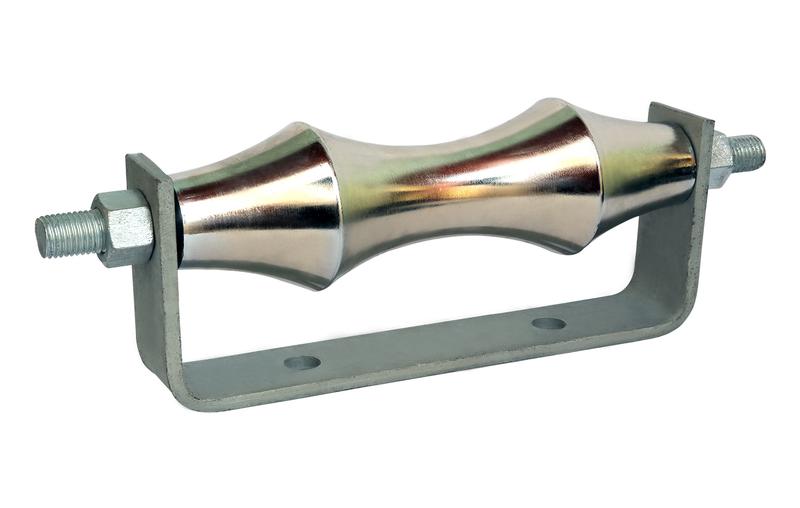

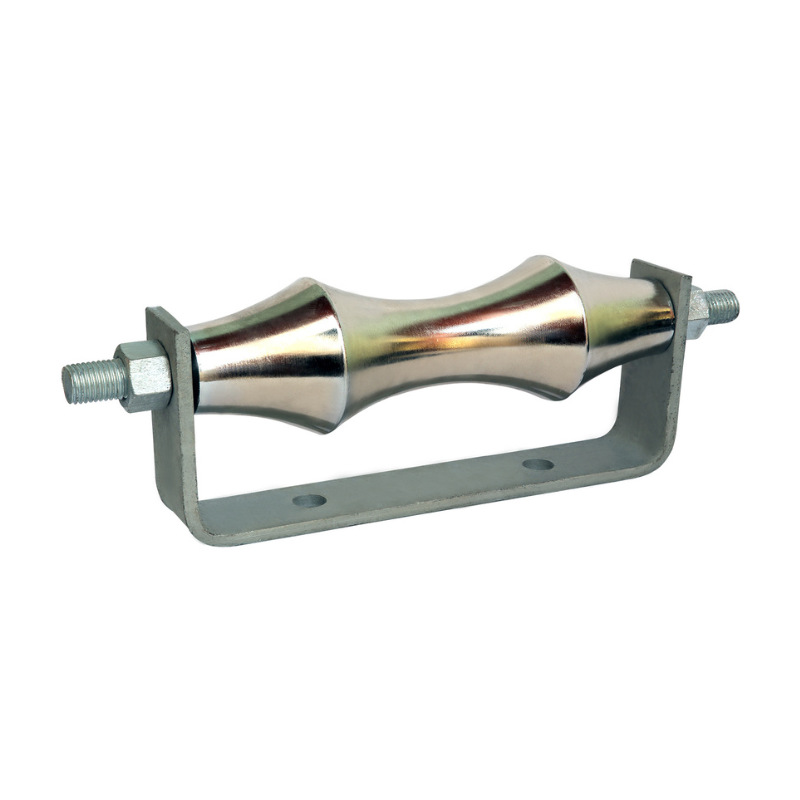

The Pipe Roller Chair provides support for pipes, allowing horizontal movement due to expansion and contraction. It also offers vertical adjustment up to 6".
Steel
Cast iron
Hot dipped galvanized as per ASTM A123/A123 Standards
Nickle plated
hot dipped galvanized as per ASTM A123/A123 Standards
| Part No. | D (") | A (mm) | B (mm) | k (mm) | G | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|---|
| DMC166060 | 2" | 70 | 140 | 35 | M12 | 6,700 | 60 |
| DMC166075 | 2½" | 80 | 150 | 35 | M12 | 10,000 | 50 |
| DMC166090 | 3" | 100 | 170 | 50 | M12 | 13,800 | 50 |
| DMC166100 | 3½" | 105 | 175 | 50 | M12 | 17,300 | 50 |
| DMC166115 | 4" | 115 | 193 | 50 | M12 | 21,100 | 30 |
| DMC166140 | 5" | 147 | 225 | 75 | M12 | 30,400 | 15 |
| DMC166168 | 6" | 175 | 285 | 80 | M20 | 34,700 | 10 |
| DMC166220 | 8" | 227 | 335 | 85 | M20 | 34,700 | 6 |
| DMC166273 | 10" | 285 | 400 | 130 | M20 | 42,900 | 5 |
| DMC166323 | 12" | 332 | 460 | 140 | M24 | 53,400 | 4 |
| DMC166355 | 14" | 370 | 500 | 165 | M24 | 53,400 | 1 |
| DMC166406 | 16" | 410 | 570 | 210 | M32 | 53,400 | 1 |
| DMC166457 | 18" | 469 | 630 | 235 | M32 | 62,300 | 1 |
| DMC166508 | 20" | 534 | 710 | 260 | M36 | 71,100 | 1 |
| DMC166610 | 24" | 622 | 805 | 310 | M36 | 71,100 | 1 |
| DMC166660 | 26" | 711 | 900 | 335 | M36 | 76,000 | 1 |
