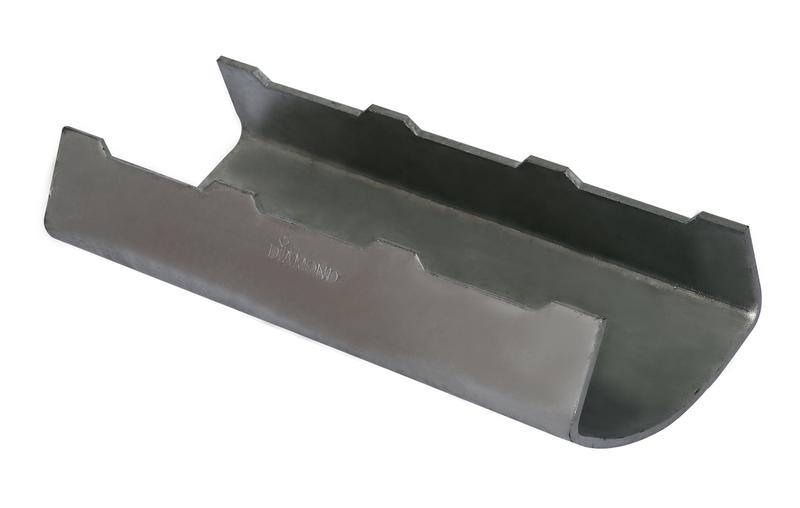

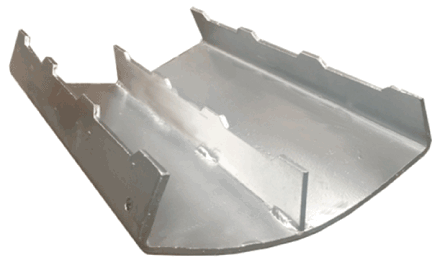

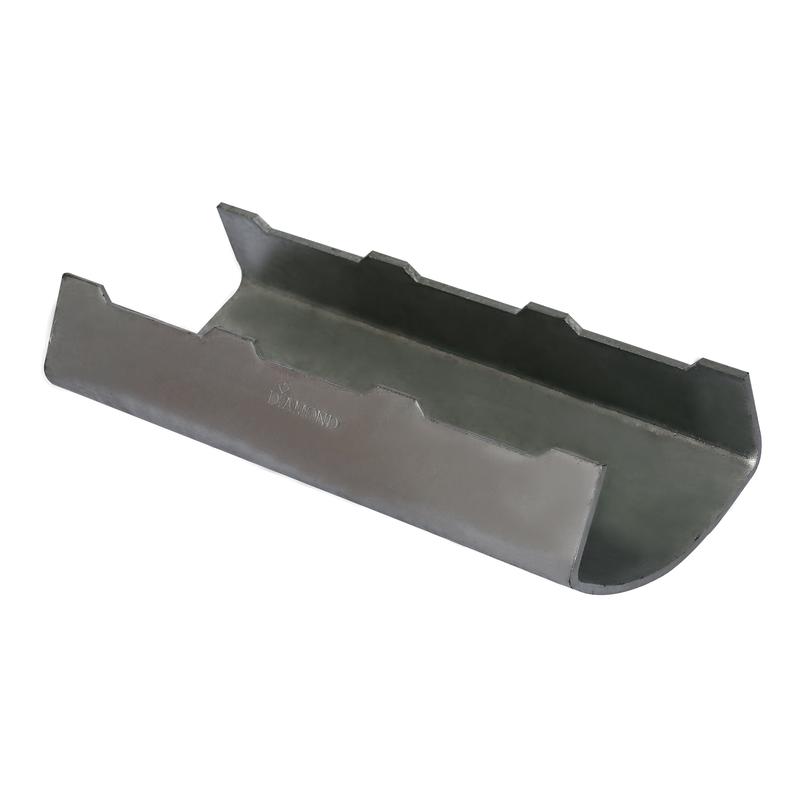

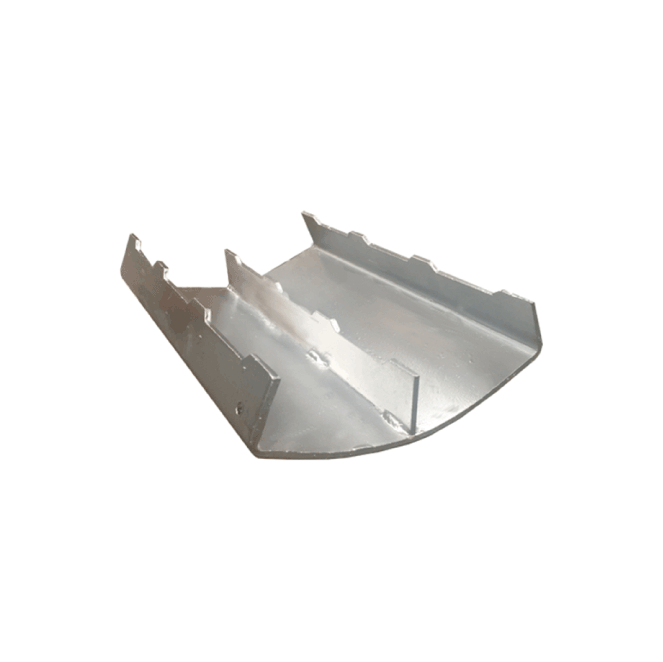

The Pipe Covering Protection Saddle is designed to be used with insulated pipes, protecting the pipe insulation over pipe lines.
| Part No. | D (mm) | D (") | k (mm) | k1 (mm) | Fa,z (N) | Insulation Thickness | Matching Roller Chair |
|---|---|---|---|---|---|---|---|
| DMPPS100-25 | 115.0 | 4.0 | 89 | 114 | 6000 | 25 | DMC166168 |
| DMPPS100-50 | 115.0 | 4.0 | 115 | 145 | 6000 | 50 | DMC166220 |
| DMPPS100-75 | 115.0 | 4.0 | 140 | 176 | 6000 | 75 | DMC166273 |
| DMPPS125-25 | 140.0 | 5.0 | 103 | 131 | 9500 | 25 | DMC166220 |
| DMPPS125-50 | 140.0 | 5.0 | 129 | 165 | 9500 | 50 | DMC166273 |
| DMPPS125-75 | 140.0 | 5.0 | 154 | 196 | 9500 | 75 | DMC166323 |
| DMPPS150-25 | 168.0 | 6.0 | 116 | 146 | 9500 | 25 | DMC166220 |
| DMPPS150-50 | 168.0 | 6.0 | 142 | 178 | 9500 | 50 | DMC166273 |
| DMPPS150-75 | 168.0 | 6.0 | 167 | 209 | 9500 | 75 | DMC166323 |
| DMPPS200-25 | 219.0 | 8.0 | 143 | 179 | 9500 | 25 | DMC166273 |
| DMPPS200-50 | 219.0 | 8.0 | 169 | 211 | 9500 | 50 | DMC166323 |
| DMPPS200-75 | 219.0 | 8.0 | 194 | 244 | 9500 | 75 | DMC166406 |
| DMPPS250-25 | 273.0 | 10.0 | 170 | 212 | 12500 | 25 | DMC166323 |
| DMPPS250-50 | 273.0 | 10.0 | 196 | 261 | 12500 | 50 | DMC166406 |
| DMPPS250-75 | 273.0 | 10.0 | 221 | 288 | 12500 | 75 | DMC166457 |
| DMPPS300-25 | 323.0 | 12.0 | 196 | 261 | 12500 | 25 | DMC166406 |
| DMPPS300-50 | 323.0 | 12.0 | 222 | 289 | 12500 | 50 | DMC166457 |
| DMPPS300-75 | 323.0 | 12.0 | 247 | 322 | 12500 | 75 | DMC166508 |
| DMPPS350-25 | 356.0 | 14.0 | 212 | 277 | 29000 | 25 | DMC166406 |
| DMPPS350-50 | 356.0 | 14.0 | 238 | 305 | 29000 | 50 | DMC166457 |
| DMPPS350-75 | 356.0 | 14.0 | 263 | 239 | 29000 | 75 | DMC166508 |
| DMPPS400-50 | 406.0 | 16.0 | 263 | 239 | 29000 | 50 | DMC166508 |
| DMPPS400-75 | 406.0 | 16.0 | 289 | 365 | 29000 | 75 | DMC166610 |
| DMPPS450-50 | 457.0 | 18.0 | 289 | 365 | 29000 | 50 | DMC166610 |
| DMPPS450-75 | 457.0 | 18.0 | 315 | 393 | 29000 | 75 | DMC166610 |
| DMPPS500-50 | 508.0 | 20.0 | 315 | 393 | 29000 | 50 | DMC166610 |
| DMPPS500-75 | 508.0 | 20.0 | 340 | 425 | 29000 | 75 | DMC166660 |
| DMPPS600-50 | 610.0 | 24.0 | 366 | 457 | 45000 | 50 | DMC166712 |
| DMPPS600-75 | 610.0 | 24.0 | 392 | 489 | 45000 | 75 | DMC166762 |
| DMPPS750-50 | 762.0 | 30.0 | 442 | 554 | 45000 | 50 | DMC166863 |
| DMPPS750-75 | 762.0 | 30.0 | 468 | 588 | 45000 | 75 | DMC166914 |
