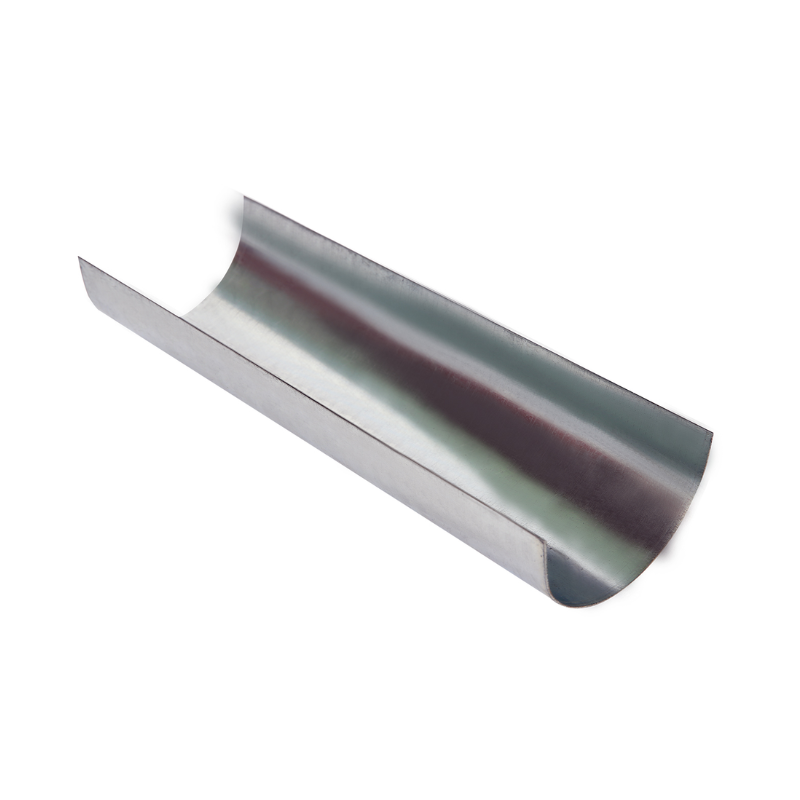

The Insulation Protection Shield is used between hanger surfaces and insulated pipes to prevent crushing of insulation. It is available in pre-galvanized or electrogalvanized steel.
Steel
| Part No. | D (mm) | L (mm) | s (mm) | Gauge | ØMatching Hanger (") | ØMatching Hanger (mm) |
|---|---|---|---|---|---|---|
| DMIPS1A | 48.2 | 305 | 1.22 | 18 | 1 1/2 | 40 |
| DMIPS2A | 60.1 | 305 | 1.22 | 18 | 2 | 50 |
| DMIPS3A | 73.1 | 305 | 1.22 | 18 | 2 1/2 | 65 |
| DMIPS4A | 88.9 | 305 | 1.22 | 18 | 3 | 80 |
| DMIPS5A | 101.6 | 305 | 1.22 | 18 | 3 1/2 | 90 |
| DMIPS6A | 114.3 | 305 | 1.22 | 18 | 4 | 100 |
| DMIPS7A | 127.0 | 305 | 1.22 | 18 | 5 | 125 |
| DMIPS8A | 141.2 | 305 | 1.22 | 18 | 5 | 125 |
| DMIPS9A | 168.6 | 305 | 1.22 | 16 | 6 | 150 |
| DMIPS10A | 194.0 | 305 | 1.22 | 16 | 8 | 200 |
| DMIPS11A | 219.4 | 305 | 1.22 | 16 | 8 | 200 |
| DMIPS10B | 194.0 | 457 | 1.52 | 16 | 8 | 200 |
| DMIPS11B | 219.0 | 457 | 1.52 | 16 | 8 | 200 |
| DMIPS12B | 244.8 | 457 | 1.52 | 16 | 10 | 250 |
| DMIPS13B | 273.3 | 457 | 1.52 | 16 | 10 | 250 |
| DMIPS14C | 298.7 | 610 | 1.91 | 14 | 12 | 300 |
| DMIPS15C | 324.1 | 610 | 1.91 | 14 | 12 | 300 |
| DMIPS16C | 355.6 | 610 | 1.91 | 14 | 14 | 350 |
| DMIPS17C | 381.0 | 610 | 1.91 | 14 | 16 | 400 |
| DMIPS18C | 406.4 | 610 | 1.91 | 14 | 16 | 400 |
| DMIPS19C | 431.8 | 610 | 1.91 | 14 | 18 | 450 |
| DMIPS20C | 457.2 | 610 | 2.67 | 12 | 18 | 450 |
| DMIPS21C | 482.6 | 610 | 2.67 | 12 | 20 | 500 |
| DMIPS22C | 508.0 | 610 | 2.67 | 12 | 20 | 500 |
| DMIPS23C | 533.4 | 610 | 2.67 | 12 | 24 | 600 |
| DMIPS24C | 558.8 | 610 | 2.67 | 12 | 24 | 600 |
| DMIPS25C | 584.2 | 610 | 2.67 | 12 | 24 | 600 |
| DMIPS26C | 609.6 | 610 | 2.67 | 12 | 24 | 600 |
| DMIPS27C | 635.0 | 610 | 2.67 | 12 | 30 | 750 |
| DMIPS28C | 660.4 | 610 | 2.67 | 12 | 30 | 750 |
| DMIPS29C | 685.8 | 610 | 2.67 | 12 | 30 | 750 |
| DMIPS30C | 711.2 | 610 | 2.67 | 12 | 30 | 750 |
| DMIPS31C | 736.6 | 610 | 2.67 | 12 | 30 | 750 |
| DMIPS32C | 762.0 | 610 | 2.67 | 12 | 30 | 750 |
| DMIPS33C | 812.6 | 610 | 2.67 | 12 | 36 | 900 |
| DMIPS1AS | 48.2 | 203.2 | 1.22 | 18 | 1 1/2 | 40 |
| DMIPS2AS | 60.1 | 203.2 | 1.22 | 18 | 2 | 50 |
| DMIPS3AS | 73.1 | 203.2 | 1.22 | 18 | 2 1/2 | 65 |
| DMIPS4AS | 88.9 | 203.2 | 1.22 | 18 | 3 | 80 |
| DMIPS5AS | 101.6 | 203.2 | 1.22 | 18 | 3 1/2 | 90 |
| DMIPS6AS | 114.3 | 203.2 | 1.22 | 18 | 4 | 100 |
| DMIPS7AS | 127.0 | 203.2 | 1.22 | 18 | 5 | 125 |
| DMIPS8AS | 141.2 | 203.2 | 1.22 | 18 | 5 | 125 |
| DMIPS9AS | 168.6 | 203.2 | 1.22 | 16 | 6 | 150 |
| DMIPS10BS | 194.0 | 203.2 | 1.22 | 16 | 8 | 200 |
| DMIPS11BS | 219.0 | 203.2 | 1.22 | 16 | 8 | 200 |
| DMIPS12BS | 244.8 | 305 | 1.22 | 16 | 10 | 250 |
| DMIPS13BS | 273.3 | 305 | 1.22 | 16 | 10 | 250 |
| DMIPS14CS | 298.7 | 305 | 1.22 | 14 | 12 | 300 |
| DMIPS15CS | 324.1 | 305 | 1.22 | 14 | 12 | 300 |
