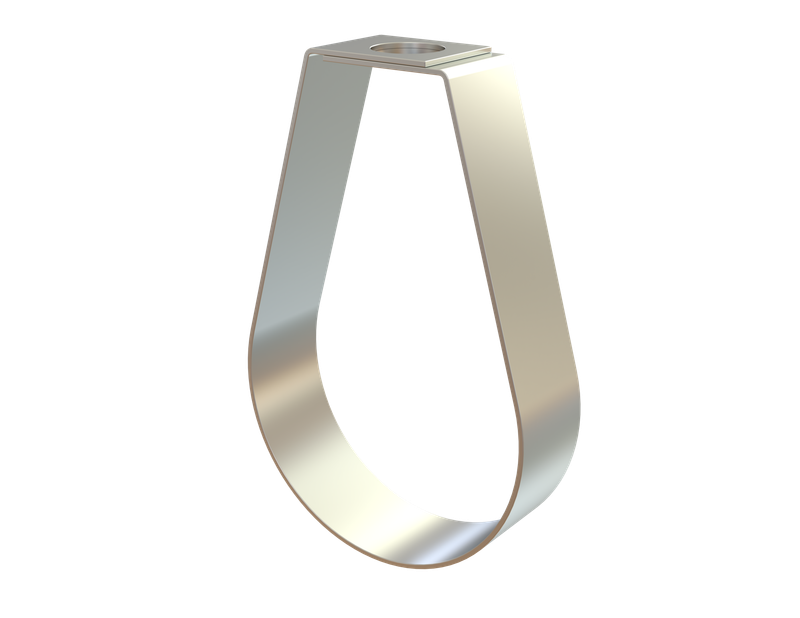

These sprinkler clamps are designed for different MEP installations and accommodate high water pressure. They are installed with threaded rods and nuts on either side of the clamp.
Steel
| Part No. | D (mm) | D (") | G (mm) | H (m) | Fa,z (N) | Pack 1 |
|---|---|---|---|---|---|---|
| DMC998022 | 22 | 1/2" | M10 | 56 | 2,500 | 400 |
| DMC998028 | 28 | 3/4" | M10 | 62 | 2,500 | 400 |
| DMC998035 | 35 | 1" | M10 | 69 | 2,500 | 300 |
| DMC998040 | 42 | 11/4" | M10 | 76 | 2,500 | 250 |
| DMC998048 | 48 | 11/2" | M10 | 81 | 2,500 | 200 |
| DMC998060 | 60 | 2" | M10 | 100 | 2,500 | 150 |
| DMC998075 | 73 | 21/2" | M10 | 120 | 3,000 | 80 |
| DMC998090 | 89 | 3" | M10 | 135 | 3,000 | 80 |
| DMC998100 | 105 | 31/2" | M10 | 150 | 3,000 | 60 |
| DMC998115 | 115 | 4" | M10 | 165 | 3,000 | 60 |
| DMC998140 | 140 | 5" | M12 | 195 | 3,000 | 30 |
| DMC998168 | 168 | 6" | M12 | 230 | 4,000 | 15 |
| DMC998219 | 219 | 8" | M12 | 290 | 4,000 | 10 |
